ACL BMW M20/M50/M52/M54 - 1919CC 80.0mm Bore 66.0mm Stroke .025 Oversized Main Bearing Set

ACL BMW M20/M50/M52/M54 - 1919CC 80.0mm Bore 66.0mm Stroke .025 Oversized Main Bearing Set

$354.99 CAD $541.06 CAD Save $186.07 CAD

ACL SKU: 7M1532H-.025

Earn [points_amount] when you buy this item.

Description Availability

7M1532H-.025

The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings. Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications.

Features:
  • High strength overlay plate with reduced thickness for improved fatigue properties
  • Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
  • Increased crush for improved bearing retention
  • Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
  • Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.

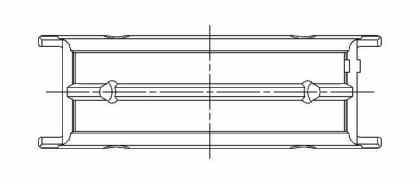

  • 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
  • Tight consistent wall tolerances to help you maintain consistent clearances.
  • Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.
Specifications:
  • Size: STD, .025, .25, .50
  • Oil Clearance: Standard
  • Half Type: Upper & Lower
  • Material: Tri-metal Hardened Steel Backs
  • Min Std Shaft Size: 2.3611in / 59.971 mm
  • Max Std Shaft Size: 2.3618in / 59.990 mm
  • Min Std Tunnel Size: 2.5591in / 65.000 mm
  • Max Std Tunnel Size: 2.5598in / 65.019 mm
  • Max Wall at Crown: 0.0980in / 2.490 mm
  • Max Overall Length: 0.787in / 20.00 mm

Other Part Numbers:
ACL #acl7M1532H-.025

2000 BMW 323Ci Base L6.2494cc Engine Components::Bearings
1998-2000 BMW 323i Base L6.2494cc Engine Components::Bearings
1998-1999 BMW 323is Base L6.2494cc Engine Components::Bearings
1986-1988 BMW 325 Base L6.2693cc Engine Components::Bearings
2001-2006 BMW 325Ci Base L6.2494cc Engine Components::Bearings
1984-1987 BMW 325e Base L6.2693cc Engine Components::Bearings
1986-1987 BMW 325es Base L6.2693cc Engine Components::Bearings
1987-1995 BMW 325i Base L6.2494cc Engine Components::Bearings
2001-2005 BMW 325i Base L6.2494cc Engine Components::Bearings
1987-1995 BMW 325is Base L6.2494cc Engine Components::Bearings
1988-1991 BMW 325iX Base L6.2494cc Engine Components::Bearings
2001-2005 BMW 325xi Base L6.2494cc Engine Components::Bearings
2000 BMW 328Ci Base L6.2793cc Engine Components::Bearings
1996-2000 BMW 328i Base L6.2793cc Engine Components::Bearings
1996-1999 BMW 328is Base L6.2793cc Engine Components::Bearings
2001-2006 BMW 330Ci Base L6.2979cc Engine Components::Bearings
2001-2005 BMW 330i Base L6.2979cc Engine Components::Bearings
2001-2005 BMW 330xi Base L6.2979cc Engine Components::Bearings
1985-1986 BMW 524td Base L6.2443cc Engine Components::Bearings
1989-1995 BMW 525i Base L6.2494cc Engine Components::Bearings
2001-2005 BMW 525i Base L6.2494cc Engine Components::Bearings
1993 BMW 525iT Base L6.2494cc Engine Components::Bearings
1982-1988 BMW 528e Base L6.2693cc Engine Components::Bearings
1997-2000 BMW 528i Base L6.2793cc Engine Components::Bearings
2001-2005 BMW 530i Base L6.2979cc Engine Components::Bearings
1996-1999 BMW M3 Base L6.3152cc Engine Components::Bearings
2001-2006 BMW M3 Base L6.3246cc Engine Components::Bearings
2004-2005 BMW X3 2.5i L6.2494cc Engine Components::Bearings
2004-2006 BMW X3 3.0i L6.2979cc Engine Components::Bearings
2001-2006 BMW X5 3.0i L6.2979cc Engine Components::Bearings
1999-2000 BMW Z3 Coupe L6.2793cc Engine Components::Bearings
2001-2002 BMW Z3 Coupe L6.2979cc Engine Components::Bearings
1999-2000 BMW Z3 M Coupe L6.3152cc Engine Components::Bearings
2001-2002 BMW Z3 M Coupe L6.3246cc Engine Components::Bearings
1998-2000 BMW Z3 M Roadster L6.3152cc Engine Components::Bearings
2001-2002 BMW Z3 M Roadster L6.3246cc Engine Components::Bearings
1999-2002 BMW Z3 Roadster L6.2494cc Engine Components::Bearings
1997-2000 BMW Z3 Roadster L6.2793cc Engine Components::Bearings
2001-2002 BMW Z3 Roadster L6.2979cc Engine Components::Bearings
2003-2005 BMW Z4 2.5i L6.2494cc Engine Components::Bearings
2003-2005 BMW Z4 3.0i L6.2979cc Engine Components::Bearings
2006-2008 BMW Z4 M Coupe L6.3246cc Engine Components::Bearings
2006-2008 BMW Z4 M Roadster L6.3246cc Engine Components::Bearings
