BM9-HDG6
| Item Description | HD/Race Sprung 6 Pad |
|---|---|
| Product Weight (lbs.) | 15.3 |
| Torque Capacity (ft/lbs.) | 596 |
| Torque Capacity Over OE | 94% |
| Disc Material | Ceramic |
| Clutch Disc Diameter (Inches) | 9.4 |
| Clutch Disc Diameter (Millimeters) | 240 |
| Input Shaft Diameter (inches) | 1.375 |
| Pressure Plate Type | Heavy Duty |
| Warranty | 12 Months (view details) |
| SFI | 1.1 |
Description

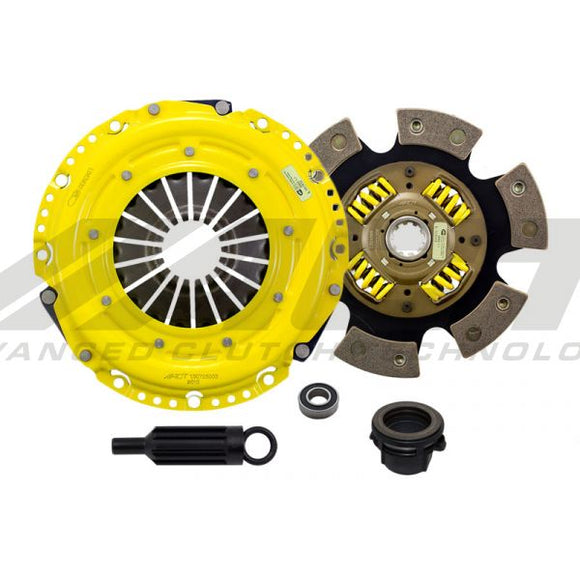

BM9-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.
Note: Must use ACT flywheel with sprung hub discs for proper clearance (flywheel not included). Pressure plate bolts included (M8-1.25 x 20mm).
Vehicle Fitment
| Application | Engine |
|---|---|
| 2001 BMW M3 Base | 3.2 L6 GAS FI 3246cc | DOHC | Naturally Aspirated |
| 2002 BMW M3 Base | 3.2 L6 GAS FI 3246cc | DOHC | Naturally Aspirated |
| 2003 BMW M3 Base | 3.2 L6 GAS FI 3246cc | DOHC | Naturally Aspirated |
| 2004 BMW M3 Base | 3.2 L6 GAS FI 3246cc | DOHC | Naturally Aspirated |
| 2005 BMW M3 Base | 3.2 L6 GAS FI 3246cc | DOHC | Naturally Aspirated |
| 2006 BMW M3 Base | 3.2 L6 GAS FI 3246cc | DOHC | Naturally Aspirated |
| 2001 BMW M3 E46 [Euro] | 3.2L I6 FI| NA |
| 2002 BMW M3 E46 [Euro] | 3.2L I6 FI| NA |
| 2003 BMW M3 E46 [Euro] | 3.2L I6 FI| NA |
| 2004 BMW M3 E46 [Euro] | 3.2L I6 FI| NA |
| 2005 BMW M3 E46 [Euro] | 3.2L I6 FI| NA |
| 2006 BMW M3 E46 [Euro] | 3.2L I6 FI| NA |
| Feel | Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle |
|---|---|
| Life | Moderate friction life, extended by ACT's exclusive diaphragm design |
| Quality | Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance |
| Recommended Use | Recommended for high horsepower street or race use |
| ACT Difference | 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability |
