NS5-XTSS
| Item Description | XT/Perf Street Sprung |
|---|---|
| Product Weight (lbs.) | 16.7 |
| Torque Capacity (ft/lbs.) | 445 |
| Torque Capacity Over OE | 78% |
| Disc Material | Organic |
| Clutch Disc Diameter (Inches) | 9.4 |
| Clutch Disc Diameter (Millimeters) | 240 |
| Input Shaft Diameter (inches) | 1 |
| Pressure Plate Type | Xtreme |
| Warranty | 12 Months (view details) |
Description

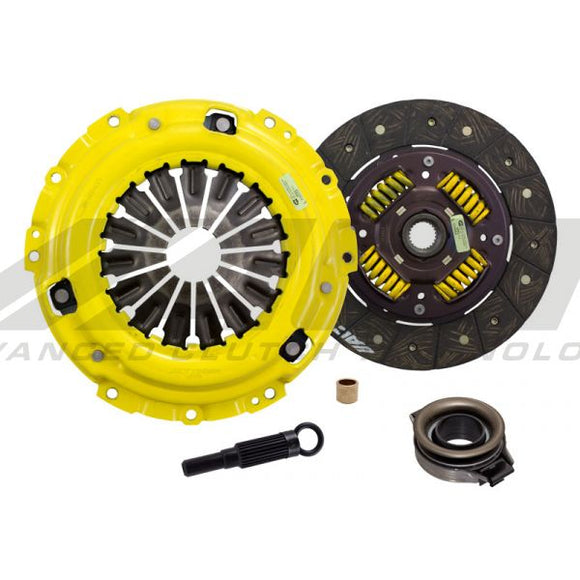

NS5-XTSS kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.
| Feel | Moderate to heavy pedal effort, smooth engagement, OE to mild gear rattle |
|---|---|
| Life | Longer friction life, extended by ACT's exclusive diaphragm design |
| Quality | Carefully engineered, precisely assembled, accurately balanced, with premium organic friction materials for heat tolerance and reduced fade |
| Recommended Use | Recommended for street and race use |
| ACT Difference | 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability |
| Application | Engine |
|---|---|
| 1990 Nissan Pulsar GTI-R [JDM] | 2.0L I4 FI| T |
| 1991 Nissan Pulsar GTI-R [JDM] | 2.0L I4 FI| T |
| 1992 Nissan Pulsar GTI-R [JDM] | 2.0L I4 FI| T |
| 1993 Nissan Pulsar GTI-R [JDM] | 2.0L I4 FI| T |
| 1994 Nissan Pulsar GTI-R [JDM] | 2.0L I4 FI| T |
