AEM 22 Channel CAN Expander Module

30-2212

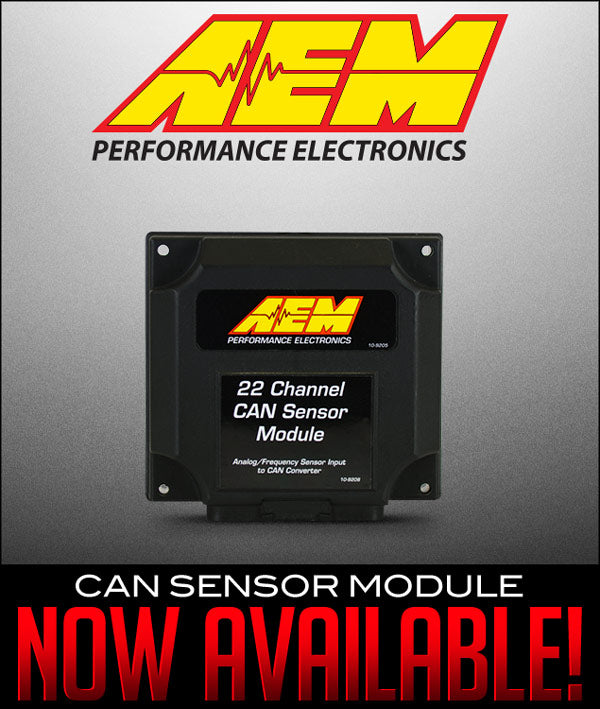

AEM ELECTRONICS 22CSM: PUT A CUSTOM DASH ON ANY VEHICLE!

AEM Electronics' 22 Channel CAN Sensor Module converts analog, digital, and frequency inputs into an AEMnet CAN bus signal that transmits to the CD-5 Carbon and CD-7 Digital Dashes which users can install on any desired vehicle. This expansion module provides a way for users with carbureted vehicles to add a CD Digital Dash Display and lets users with existing CAN-based devices add more channels to the display for viewing and data logging. The 22-Channel CAN Sensor Module is compatible with the CD Dashes only. It will run in parallel with 3rd party CAN devices on the CD dashes. Still, it is currently not compatible with AEM Electronic's AQ-1 Data Logger, Series 2 or Infinity ECUs, or 3rd party ECUs or loggers.

The 22 Channel CAN Sensor Module includes four 0-5v analog inputs, four Temp inputs, four user-configurable inputs for 0-5v, a dedicated fuel level input, six configurable digital inputs or frequency-based inputs for switched or duty cycle, a Tach input, and two VR inputs for the crank, wheel or driveshaft speeds. A harness is included with pre-pinned, 36-inch color-coded wires to connect inputs, and a DTM-style AEMnet cable to connect to a CD-5 or CD-7 Carbon Dash. Racers who are using a CAN-based programmable ECU and have consumed all of the inputs in the ECUs now have a way to add more channels to a CD Dash without having to purchase multiple CAN-based devices.

Linked here you will find a video AEM Electronics created which highlights the features of the 22 Channel Sensor Module.
