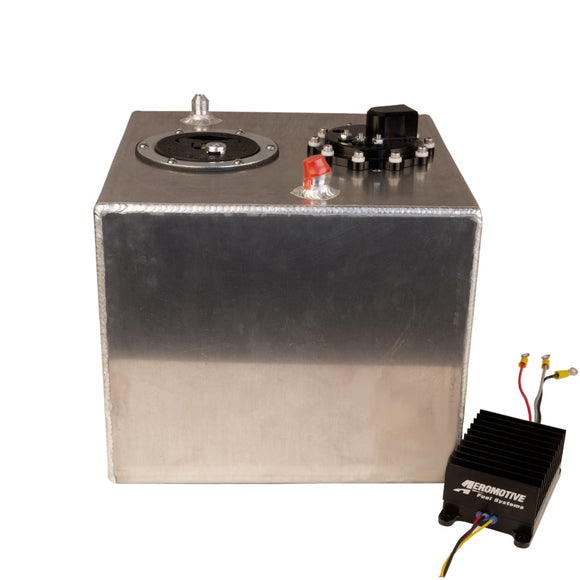

Aeromotive Fuel Cell TVS 6 Gal 90-Deg Outlet Brushless A1000

19301

P/N 19301: Fuel Cell, True Variable Speed, 6 Gal, 90-Deg Outlet, Brushless A1000
A1000 Performance Plus Advanced Technology

• The A1000 performance you expect and more:
  • Fuel Injected Engines: GAS
    up to 1300 FWHP – naturally-aspirated
    up to 1000 FWHP – forced air induction
  • Carbureted Engines: GAS
    up to 1500 FWHP – naturally-aspirated
    up to 1200 FWHP – forced air induction
  • Fuel Injected Engines: E85
    up to 910 FWHP – naturally-aspirated
    up to 700 FWHP – forced air induction
  • Carbureted Engines: E85
    up to 1050 FWHP – naturally-aspirated
    up to 840 FWHP – forced air induction
• Lighter than the traditional A1000 pump.
• Reduced current draw at higher, EFI pressures.
• Extended service life in methanol and ethanol.
• Integral, external brushless controller for a clean installation, cooler fuel, and enhanced reliability.
• Quieter than the traditional A1000 pump.
• ORB-10 inlet and outlet ports.
• Requires straight 12-VDC to the 16-VDC power supply.
• Not compatible with pulse-modulated systems or fuel pump speed controllers.
• Includes 2 ea. P/N 12703 stainless steel t-bolt clamps for mounting.

EFI rated flow of 700 lbs./hr. @ 45 psi, 13.5 volts
Carb rated flow of 900 lbs./hr. @ 9 psi, 13.5 volts
