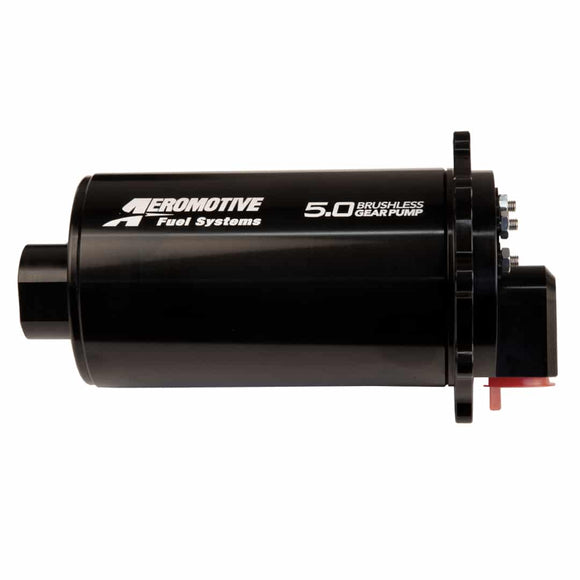

Aeromotive Brushless Spur Gear Fuel Pump w/TVS Controller - Universal - In-Tank - 90 Deg - 5gp

19322

P/N 19322: Fuel Pump, TVS, Universal In-Tank, 90-Deg Outlet, BL Spur Gear 5.0
Ground Shaking Performance – Advanced Technology

This configuration features a universal filter pickup, for an overall height adjustment from 10-16in.

• Supports
  • Fuel-injected engines: GAS
    up to 3400 FWHP – naturally-aspirated
    up to 2600 FWHP – forced air induction
  • Carbureted engines: GAS
    Up to 3600 FWHP – naturally-aspirated
    Up to 2700 FWHP – forced air induction
  • Fuel-injected engines: E85
    up to 2380 FWHP – naturally-aspirated
    up to 1820 FWHP – forced air induction
  • Carbureted engines: E85
    Up to 2520 FWHP – naturally-aspirated
    Up to 1890 FWHP – forced air induction
  • Fuel-injected engines: METHANOL
    up to 1,190 FWHP – naturally-aspirated
    up to 910 FWHP – forced air induction
  • Carbureted engines: METHANOL
    Up to 1,260 FWHP – naturally-aspirated
    Up to 945 FWHP – forced air induction
• Lighter than the traditional Pro-Series pumps.
• Reduced current draw at higher, EFI pressures.
• Extended service life in methanol and ethanol.
• New integral spur-gear pumping mechanism.
• 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.
• Integral, external brushless controller for a clean installation, cooler fuel, and enhanced reliability.
• ORB-10 outlet port.
• Requires straight 12-VDC to a 16-VDC power supply.
• Not compatible with pulse-modulated systems or fuel pump speed controllers.
• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
