Specifications:

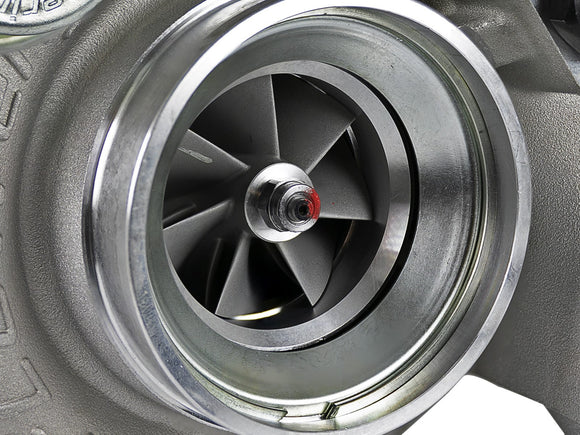

Compressor Inducer - 60 mm /Trim: 48
Compressor Exducer - 87 mm

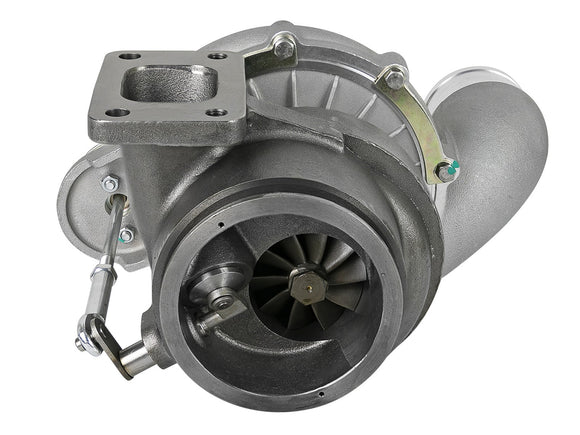

Turbine Inducer - 68 mm
Turbine Exducer - 58 mm
Turbine Housing: 12 CM2
Direct Replacement:

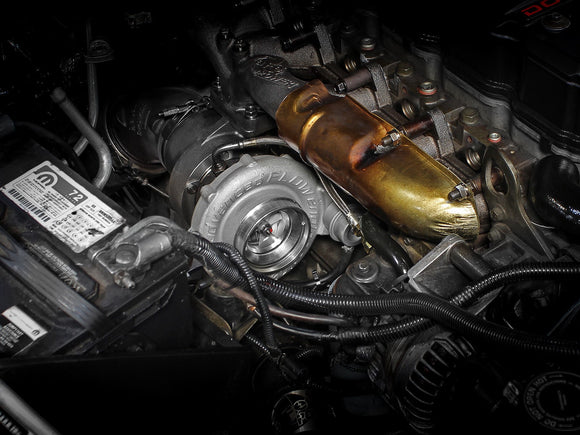

This turbo can be installed on 2003-2007 model years as a direct, bolt-on replacement. All connections to the vehicle are compatible with the OE geometry, resulting in a quick and reliable connection.
Compressor:
The housing utilizes OE inlet and outlet. A wastegate actuator is mounted to the integrated cast bracket and comes preset to factory setting.
Note: This device is not CARB exempt at this time and is not legal for sale in California or use on vehicles registered with the California Department of Motor Vehicles.
