Pro Series Front Differential Cover Kit Black w/ Machined Fins & Gear Oil Dodge Diesel Trucks 03-12 L6-5.9/6.7L (td)

46-70042-WL

• Constructed out of durable A380 die-cast aluminum
• Reinforced ribs and wrinkle black powder-coating with machined fins
• Magnetic drain and fill plug that captures loose particles for maximum rear-end protection
• Large oil level sight glass with calibration plug set to the factory fluid level to eliminate overfilling
• Includes a fully machined groove to accept supplied O-ring for a leak free seal
• Fits AAM 9.25-14 Bolt Axles
• Fully Synthetic 75W-90
• Exceeds API GL-5 Specs
• High temperature high shear stability
• Lowers operating temperature
• No extra additives required
• Consistent limited slip operation
• Group IV synthetic base oil

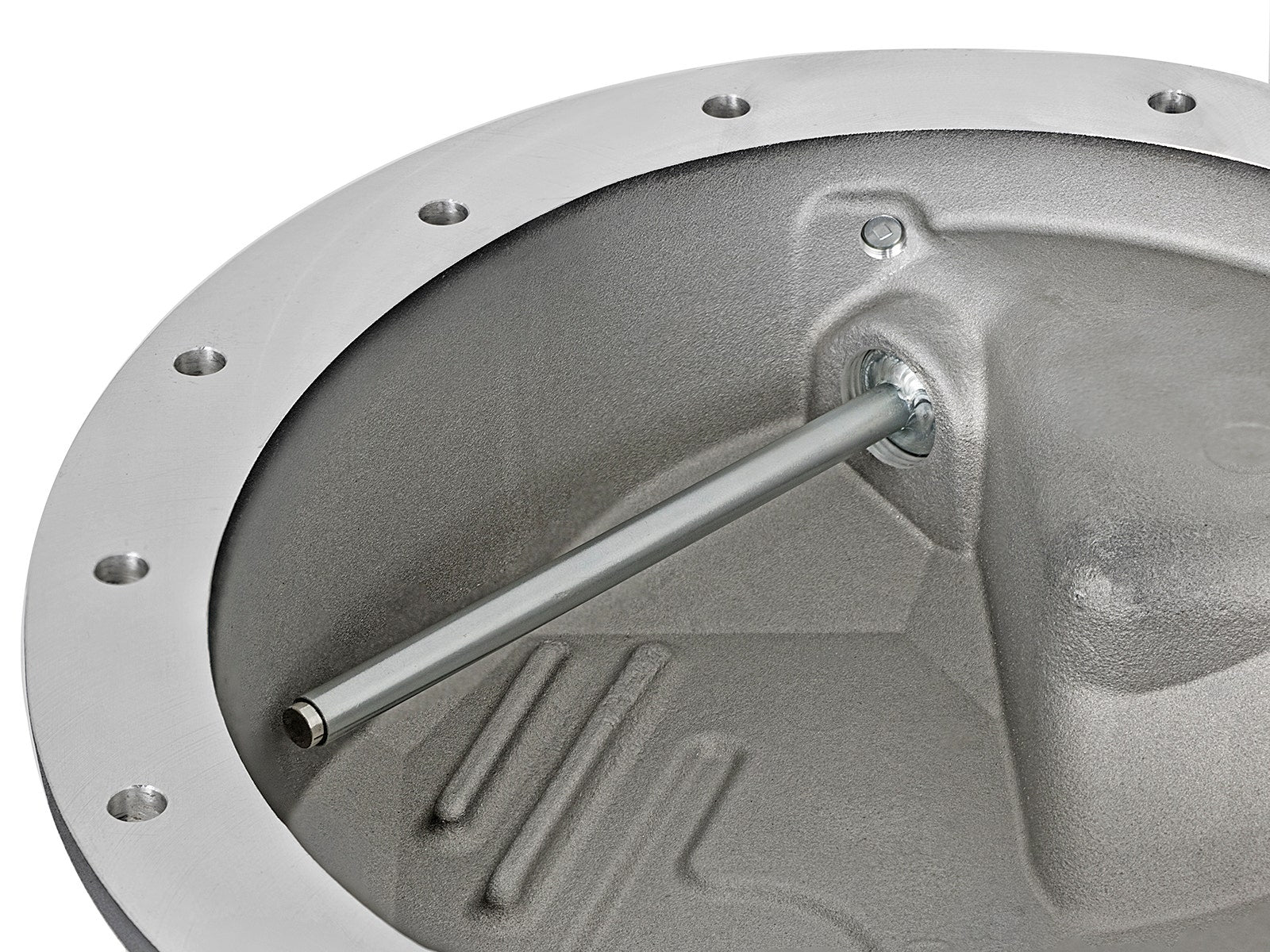

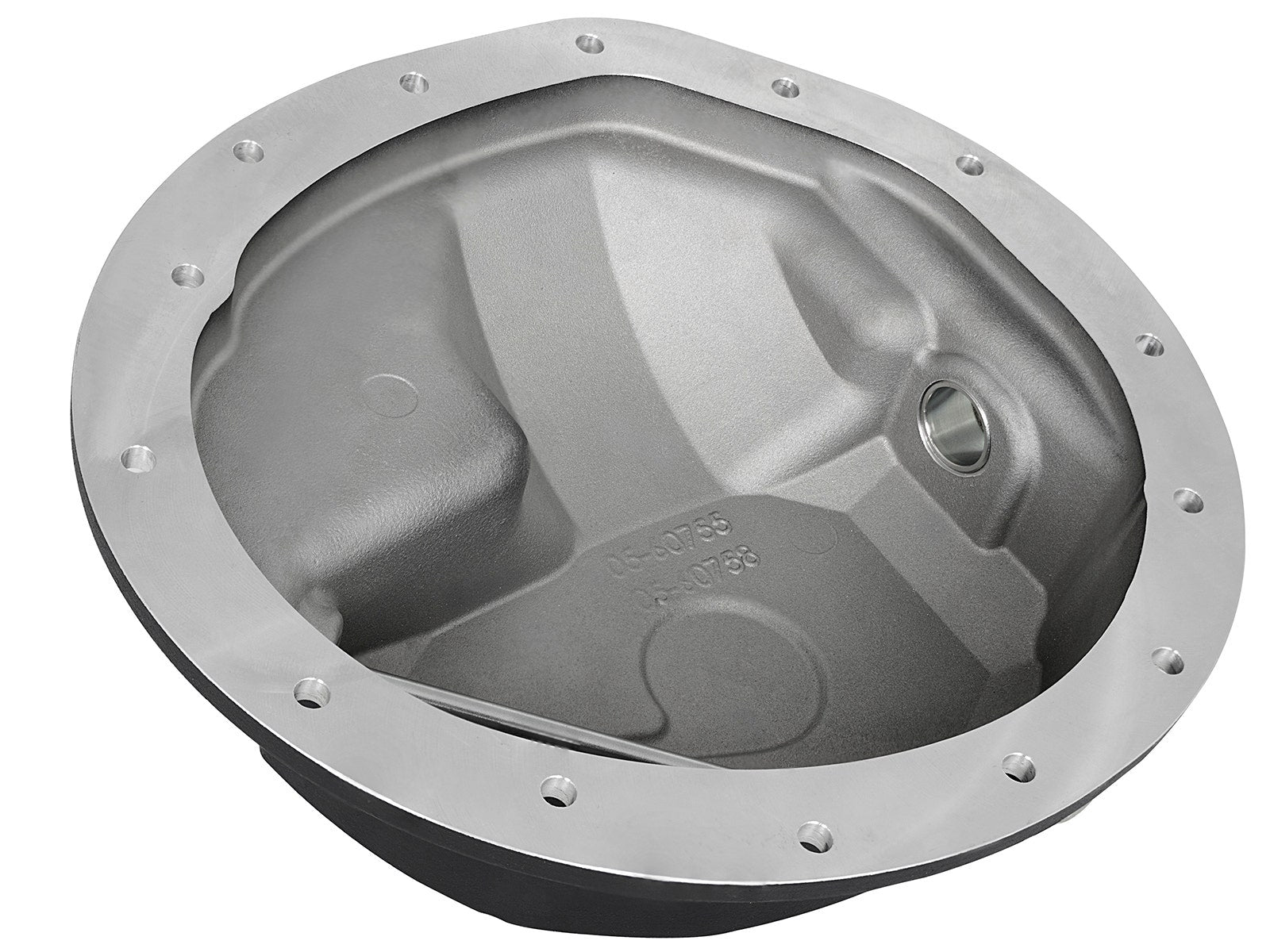

aFe Power's new front differential cover brings performance engineering to the protection of your axle's differential. This differential cover is constructed out of durable die-cast A380 aluminum with reinforced ribs and wrinkle black powder-coating with machined fins for maximum strength and styling. This cover comes with all necessary hardware and includes an O-ring for a leak-free seal. The Pro Series differential covers include a oil level sight glass and deep reach magnetic dip stick for maximum protection. This cover uses Dodge Gasket P/N: 5086682AA not included.

Oil Capacity:
This cover has about a 3-1/2 quart lube capacity.

Built-in External fins:
Built-in external fins transfer heat from the fluid to the outside air for maximum cooling.

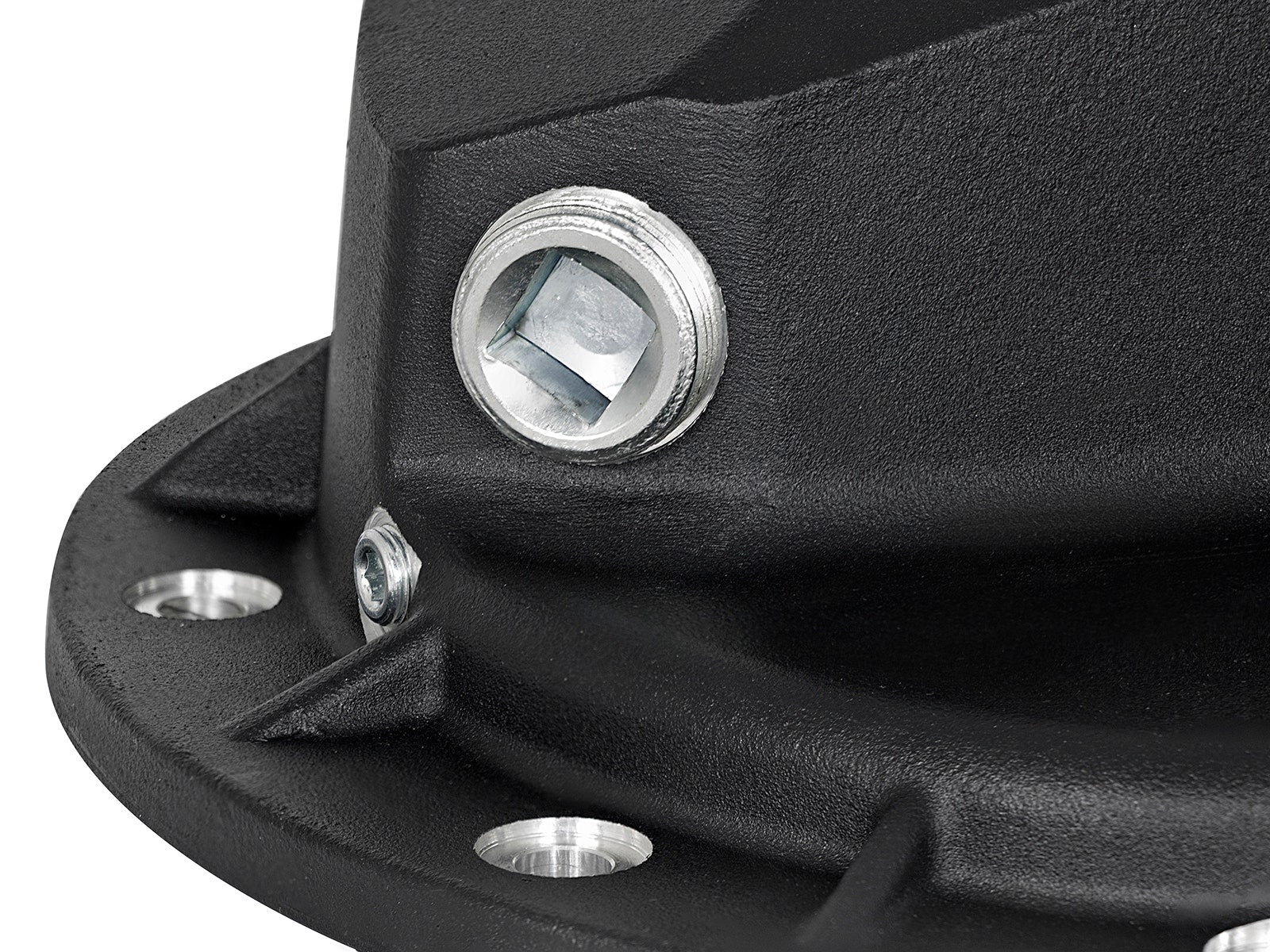

Magnetic Drain/Fill Plug:
This system incorporates a magnetic drain plug to capture loose particles for maximum rear-end protection.

Oil Level Sight Glass:
Pre-installed large oil level sight glass with calibration plug set to the factory fluid level to eliminate overfilling.

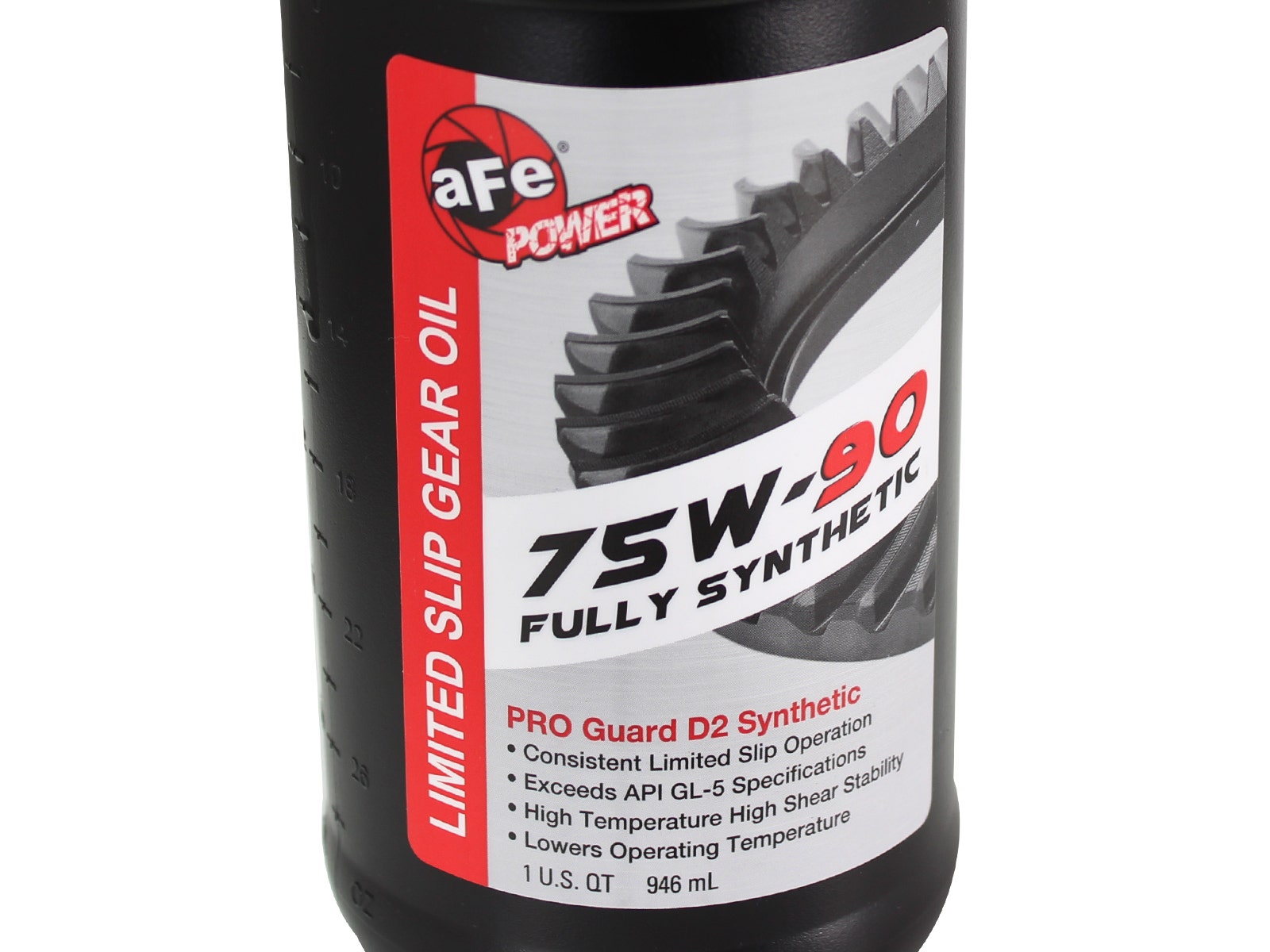

Group IV synthetic base:
This competition proven formulation utilizes a group IV synthetic base along with a proprietary additive package that reduces drag, resist foaming and maintains its viscosity under extreme heat and high loads.

Usage:

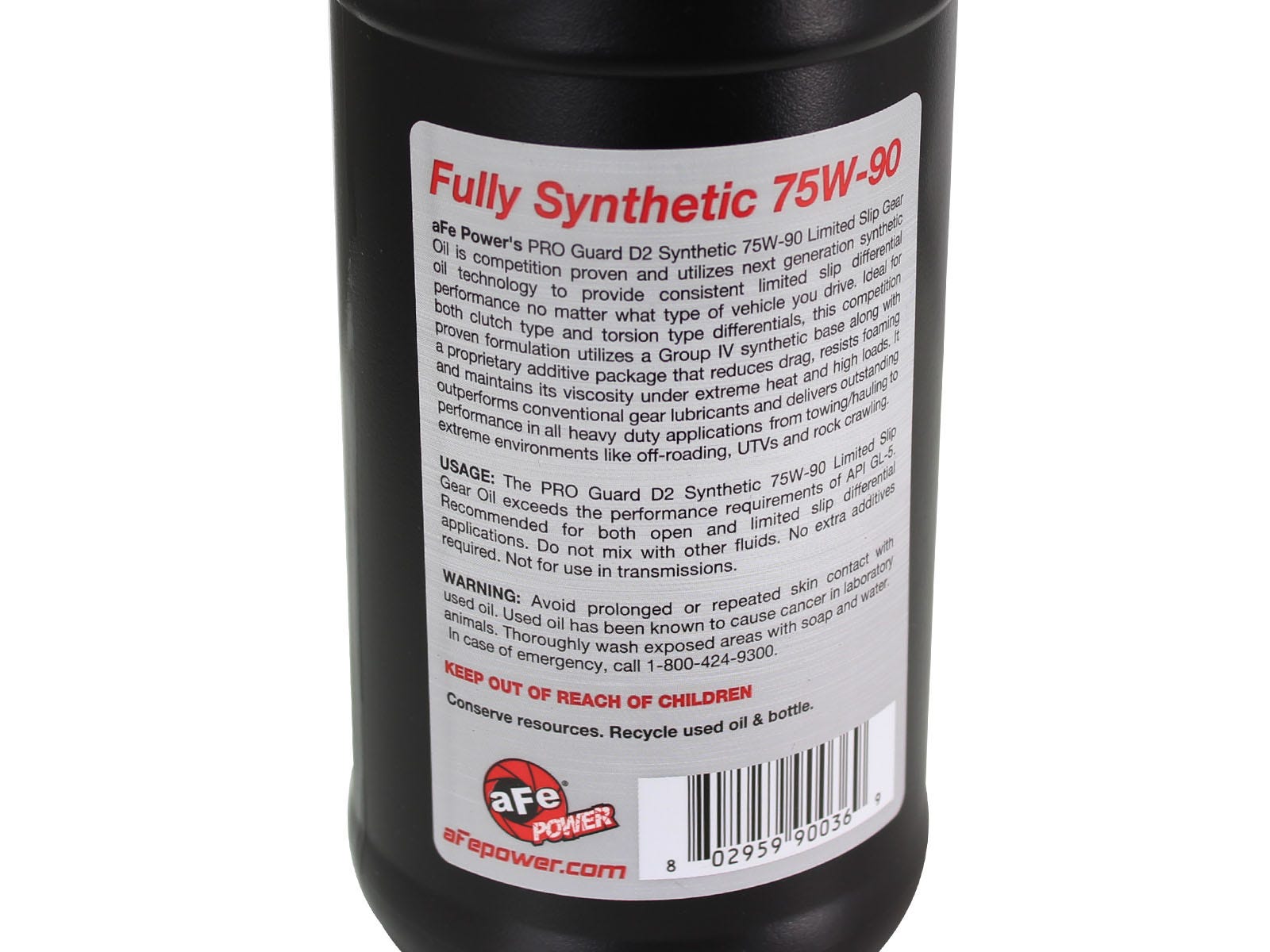

The PRO Guard D2 Synthetic 75W-90 limited slip gear oil exceeds the performance requirements of API GL-5 recommended for both open and limited slip applications.

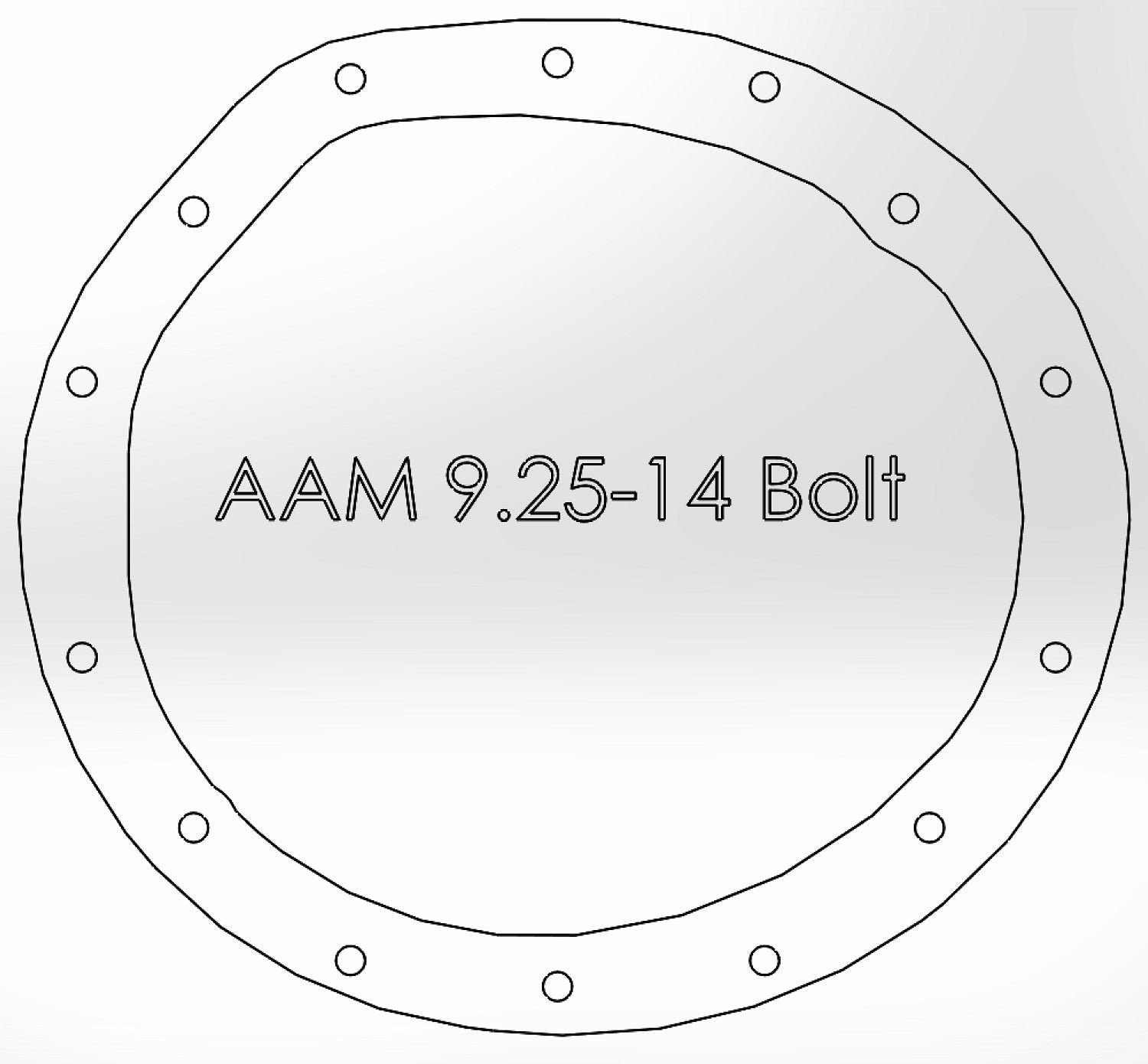

Fitment Note: This cover fits the AAM 9.25-14 Bolt Axles, see comparison photo below for verification.

When it comes to engineering for power, performance, protection and value, aFe Power is the only choice.
