Pro Series Rear Differential Cover Kit Black w/ Machined Fins & Gear Oil Dodge Diesel Trucks 03-05 L6-5.9L (td)

46-70092-WL

• Constructed out of durable A380 die-cast aluminum
• Reinforced ribs and wrinkle black powder-coating with machined fins
• Magnetic drain and fill plug that captures loose particles for maximum rear-end protection
• Large oil level sight glass with calibration plug set to the factory fluid level to eliminate overfilling
• Includes a fully machined groove to accept supplied O-ring for a leak free seal
• Fits AAM 10.50-1Fully Synthetic 75W-904 Bolt Axles
• Exceeds API GL-5 Specs
• High temperature high shear stability
• Lowers operating temperature
• No extra additives required
• Consistent limited slip operation
• Group IV synthetic base oil

aFe Power's new rear differential cover brings performance engineering to the protection of your axle's differential. This differential cover is constructed out of durable die-cast A380 aluminum with reinforced ribs and wrinkle black powder-coating with machined fins for maximum strength and styling. This cover comes with all necessary hardware and includes an O-ring for a leak-free seal. The Pro Series differential covers include a oil level sight glass and deep reach magnetic dip stick for maximum protection. This cover fits the AAM 10.5-14 Bolt Axles.

5 quart lube capacity:
This cover has about a 5 quart lube capacity at the factory line, factory cover holds about 4 quarts.

Built-in Internal/external Fins:
Built-in internal and external fins transfer heat from the fluid to the outside air for maximum cooling.

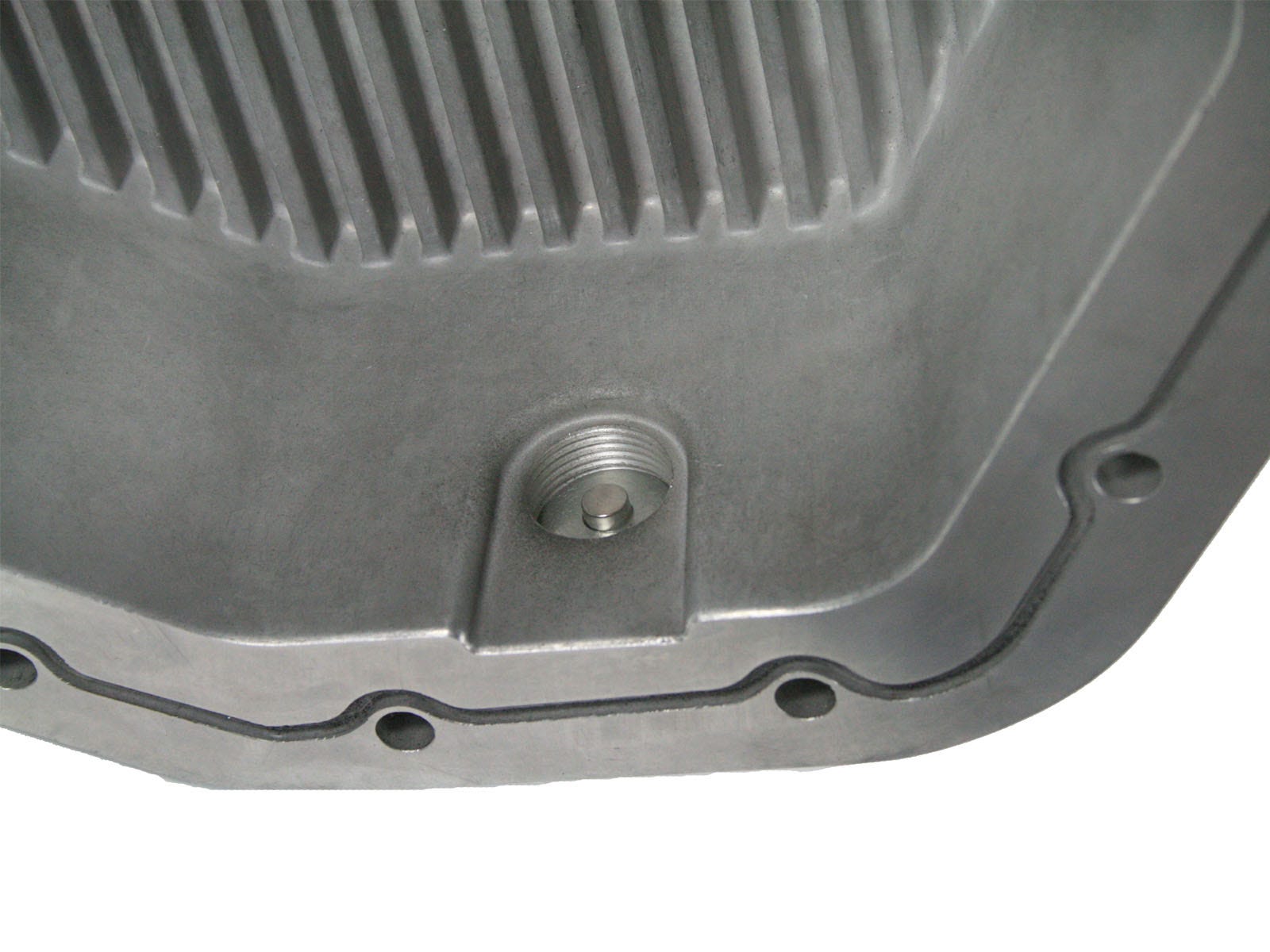

Magnetic drain/fill plug:
This system incorporates a large magnetic drain and fill plug that captures loose particles for maximum rear-end protection.

Oil Level Sight Glass:
Pre-installed large oil level sight glass with calibration plug set to the factory fluid level to eliminate overfilling.

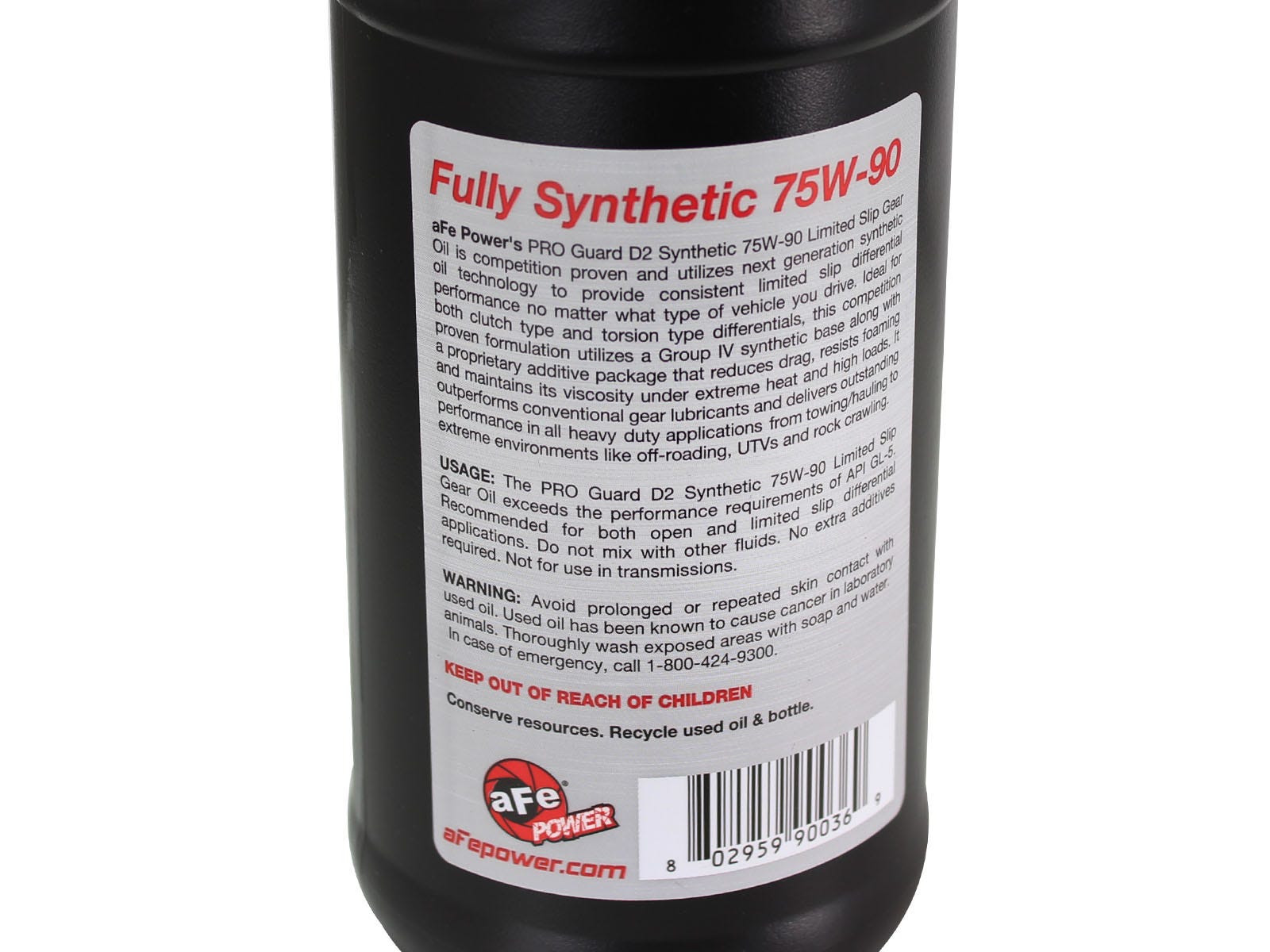

Group IV synthetic base:
This competition proven formulation utilizes a group IV synthetic base along with a proprietary additive package that reduces drag, resist foaming and maintains its viscosity under extreme heat and high loads.

Usage:

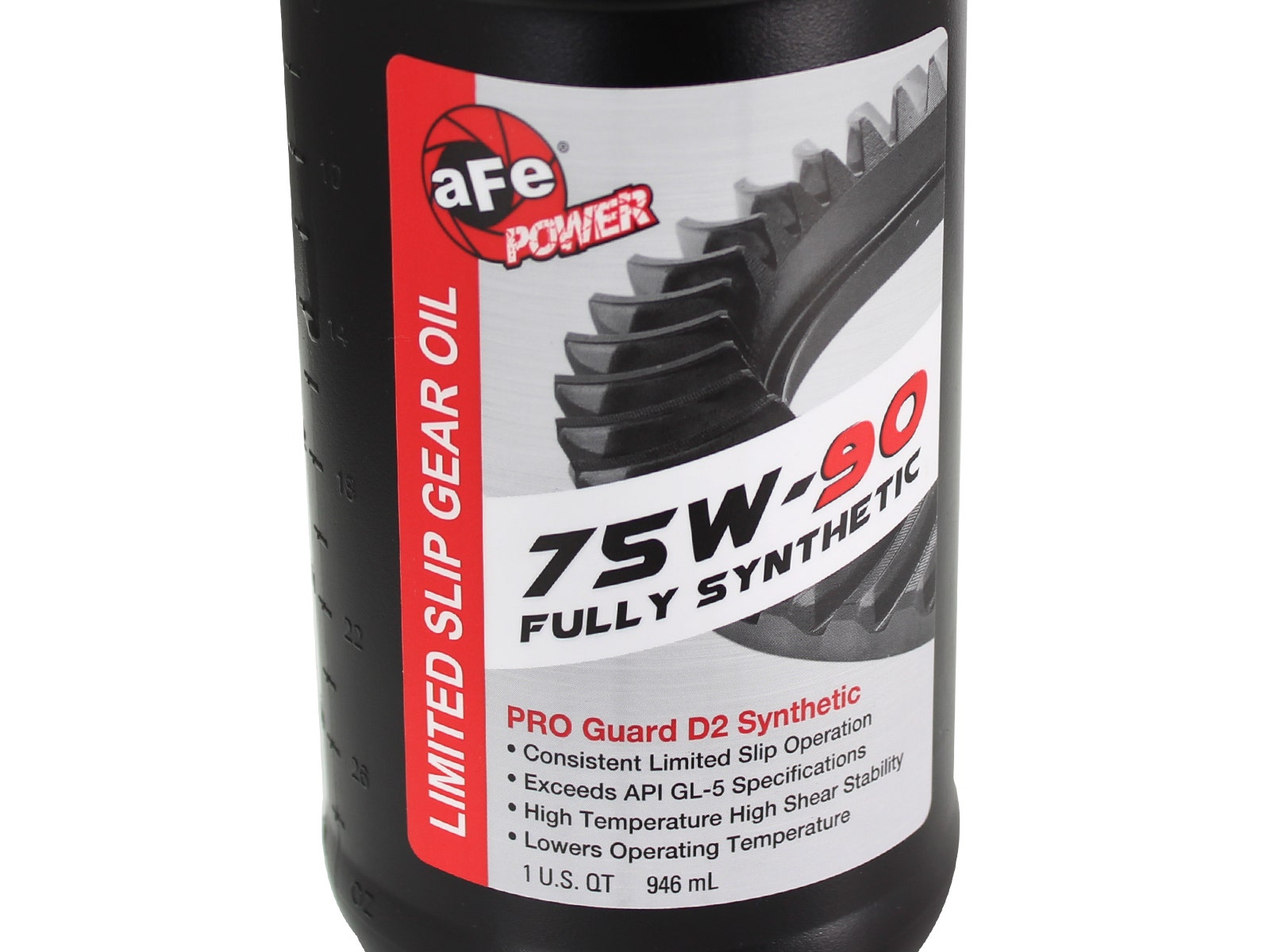

The PRO Guard D2 Synthetic 75W-90 limited slip gear oil exceeds the performance requirements of API GL-5 recommended for both open and limited slip applications.

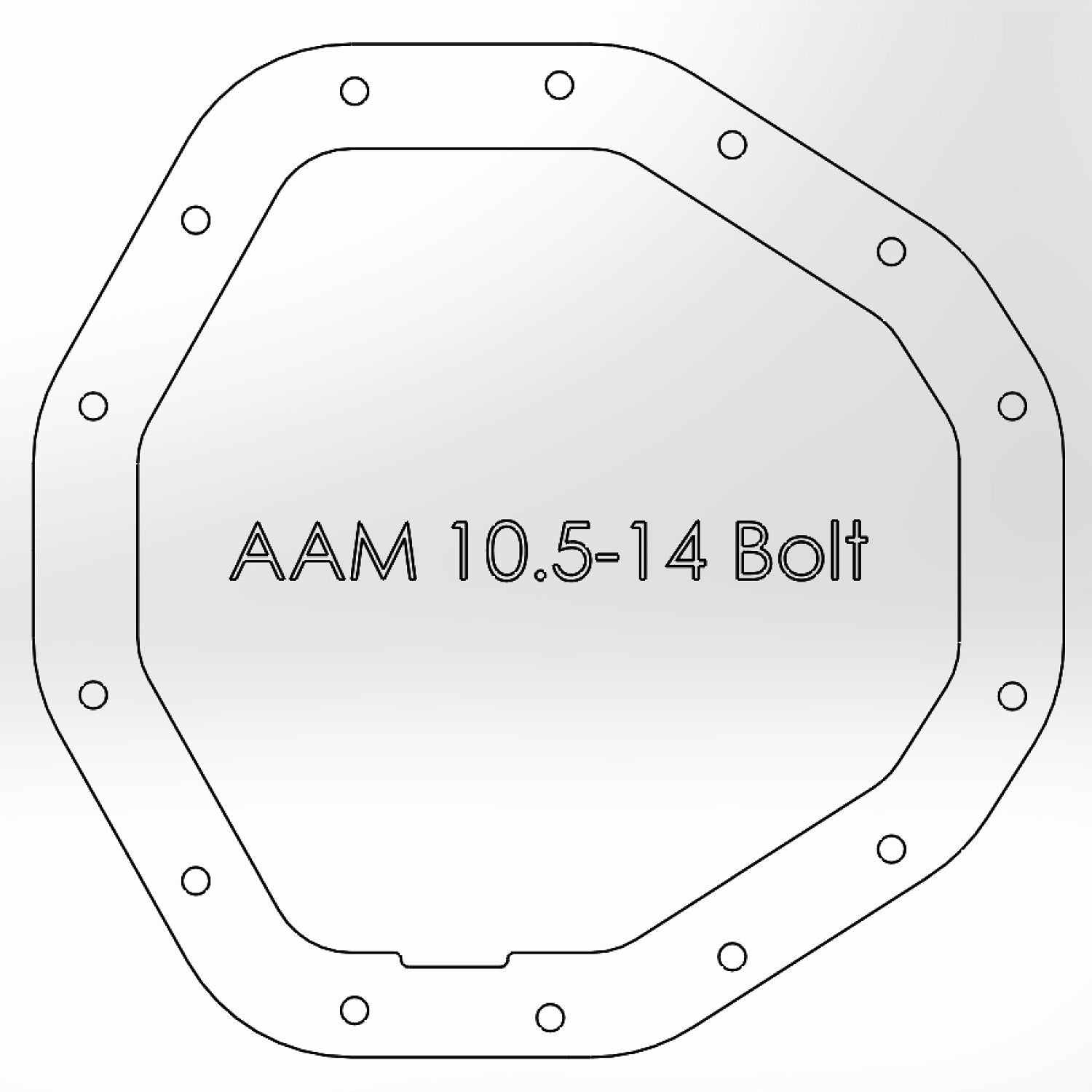

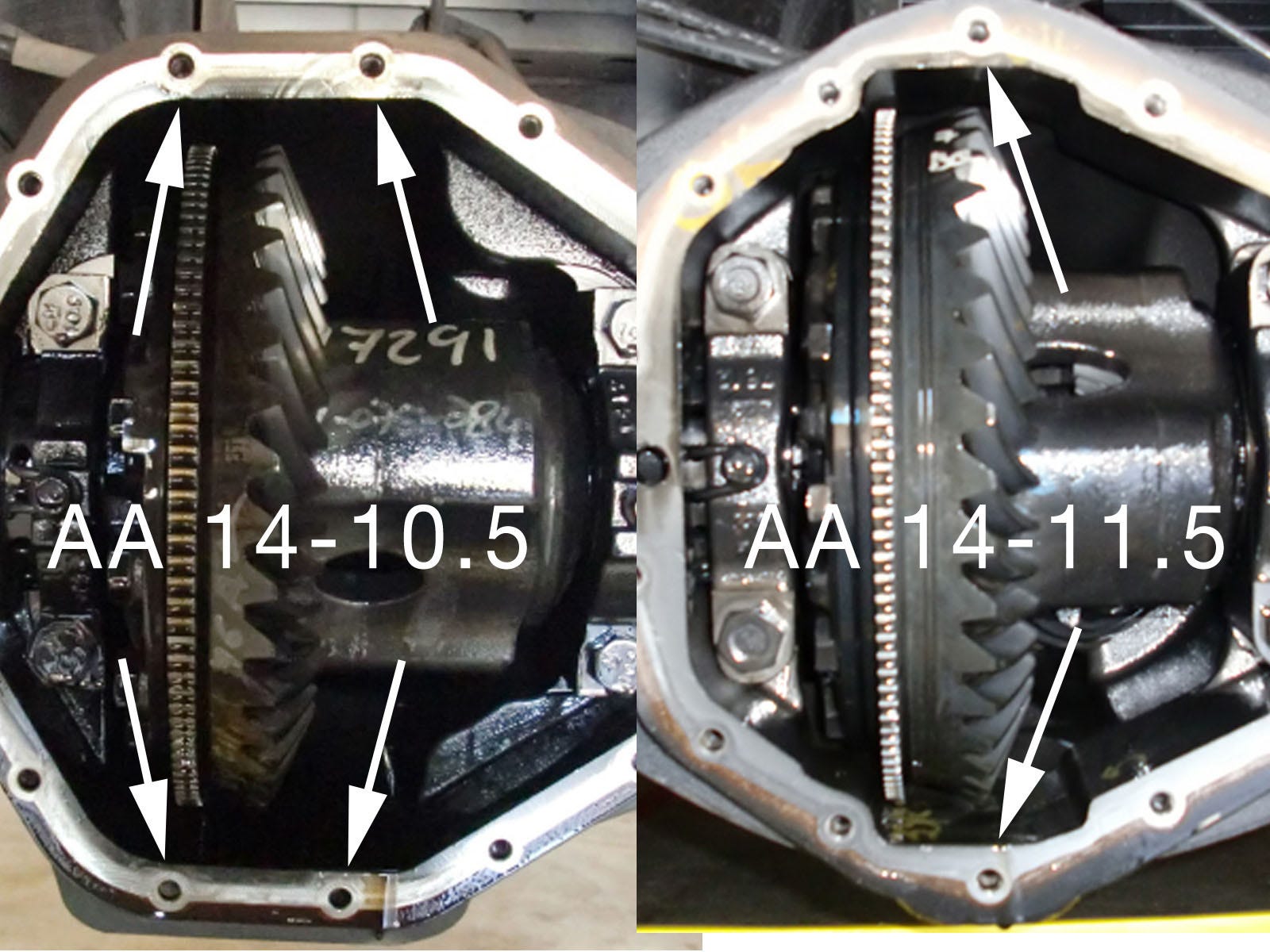

Fitment Note:
This cover fits the AAM 10.50-14 Bolt Axles.

When it comes to engineering for power, performance, protection and value, aFe Power is the only choice.
