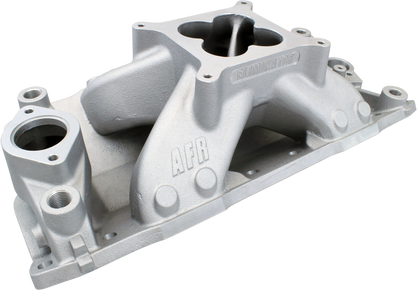

AFR SBC Eliminator Race Single Plane Aluminum 4150 Intake Manifold

AFR4811

SBC Eliminator Single Plane Race Manifold 23° (3500 to 8000 RPM) AFR #4811

Designed for SB Chevy 23° heads with standard port location. This manifold is excellent for larger cubic inch serious street/strip or a wide variety of race applications.

• Carburetor pad height is 5.500” with 4150 carb flange
• Comes with cast in nitrous bosses
• Front and rear water outlets for additional cooling benefits
• Dual distributor clamp hold downs
• Specifically designed to fit and optimize your AFR heads with our unique carburetor pad clover shaped pattern
• Cast and machined in the USA
• As Cast Port Dimensions: 2.01" H x 1.09" W

Recommended intake gasket AFR #6901. Recommended carburetor spacer AFR #4450 1” open or AFR #4460 1” four hole, both are made from lightweight composite material to insulate your fuel from heat soak.
