FEATURES
THE FLOW FORM ADVANTAGE
Flow forming enables us to create high performance wheels without the price premium of forging. It improves the mechanical properties and grain structure of the barrel, increasing its strength and stiffness, which allows us to use less material and reduce weight. Thanks to our superior engineering, our flow formed wheels have a higher load rating than some competitors' forged wheels.
"I" BEAM SPOKES
One of the most prominent features of the SM-10 is its advanced "I" beam spoke machining. Any excess material that doesn’t add strength is carved out from the sides of the spokes using a precision CNC ball cutter. This process is often deemed cost-prohibitive by others, but for performance without compromise we believe it's essential.
BIGGER, TOUGHER INNER LIP
The inner lip is the most vulnerable part of a wheel because it has no spokes for support. Our Evolution line adds more material to this high-impact area as an extra layer of protection against track berms, potholes, and whatever else the road may throw at you.
MAXIMIZING CONCAVITY
We use the deepest concave face profiles we can for every application after factoring in critical clearances such as brake calipers. The SM-10 utilizes 3 unique profiles to make this possible, with the deepest concave face delivering reduced weight and a stunningly aggressive appearance.
BIG BRAKE CLEARANCE
Big brakes often require bigger, heavier, and more expensive wheels which aren’t ideal in a performance environment. The SM-10 is one of our many wheels which solve this problem. Through comprehensive 3D laser scanning and endless rounds of test-fitting, we’ve created wheels that clear the GT4 380mm steel brakes, 997 380mm PCCB, and a wide variety of aftermarket kits from AP Racing, Brembo, and more.
KNURLED BEADS
Whether it’s a day at the track or months of street driving, repeated hard braking can make a tire slip along the bead seat and go out of balance, causing vibration. We’ve added knurled beads to help grip the tire and reduce unwanted slippage.
WEIGHT OPTIMIZED
We conducted extensive Finite Element Analysis to reinforce high stress areas and to remove material where it didn’t improve strength. The end result is a wheel with an ideal balance of strength and weight.
BUILT FOR IMPACT SOCKETS
Track wheels need track tools. Don’t settle for wheels that require undersized tuner lugs or thin walled sockets. All APEX wheels accommodate over-sized race lugs and impact sockets to make swapping wheels lightning fast.
FINISHING TOUCHES
All Evolution line wheels are finished using a multi-stage liquid paint over a powder coated base coat. This coating process leaves lug holes, center bores and mounting pads untouched, which ensures proper fit and torque values.
TRUE VIA
The VIA is an independent wheel testing and auditing agency similar to TÜV. Many companies falsely claim their wheels have been certified, and even use the VIA stamp without permission. Our wheels have been certified, and we provide the registration numbers for every wheel. Protect yourself. Demand registration numbers from manufacturers.
LEARN MORE
JWL AND BEYOND
All APEX wheels meet or meaningfully exceed JWL load rating requirements. Some manufacturers don't meet the minimum requirements, yet still claim to be compliant. Always compare load ratings to ensure you aren’t sacrificing critical strength for a slightly lighter wheel.
LEARN MORE
LIFETIME WARRANTY
All APEX wheels come with a lifetime structural warranty against defects in workmanship and materials, plus a 1 year finish warranty. Exchanges are fast, easy, and hassle-free. See here full terms and conditions for details.
LEARN MORE
50% OFF REPLACEMENT WHEELS
Curb rash or pothole damage on the street? Make an oopsie at the track? We’ve all been there. APEX is proud to offer 50% off replacement wheels, no matter the damage. See our full terms and conditions for more details.
LEARN MOREADDITIONAL FEATURES
HUB CENTRIC
No centering rings required. All Porsche specific 5x130mm bolt pattern wheels feature a direct-fit, 71.6mm center bore.
CENTER CAPS
All APEX Porsche wheels come with our Gloss Black cap included which is interchangeable with the OE Porsche crest cap. We also offer optional red caps.
HARDWARE
APEX Porsche wheels are engineered to be compatible with your OEM R14 ball seat mounting hardware. They’ll also accept proper aftermarket hardware, stud kits and spacers.
TPMS
All APEX wheels accept OEM and aftermarket Tire Pressure Monitoring Sensors and standard fit valve stems. We offer sensors and stems as a convenient option.
| BRAND | APEX |
|---|---|
| DESIGNED FOR | Porsche |
| WHEEL CONSTRUCTION | Flow Formed |

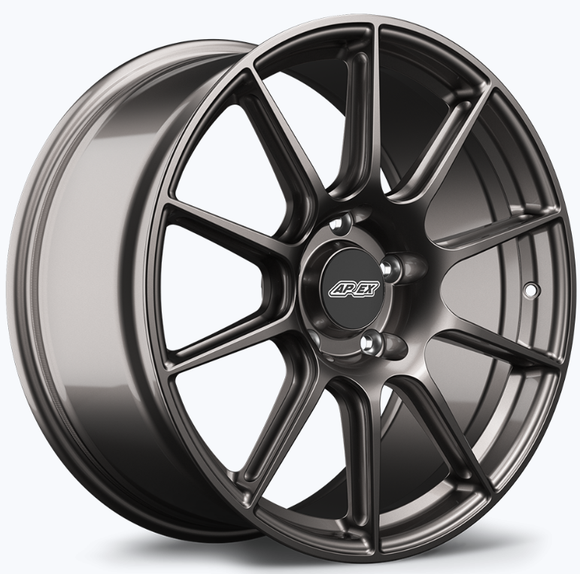

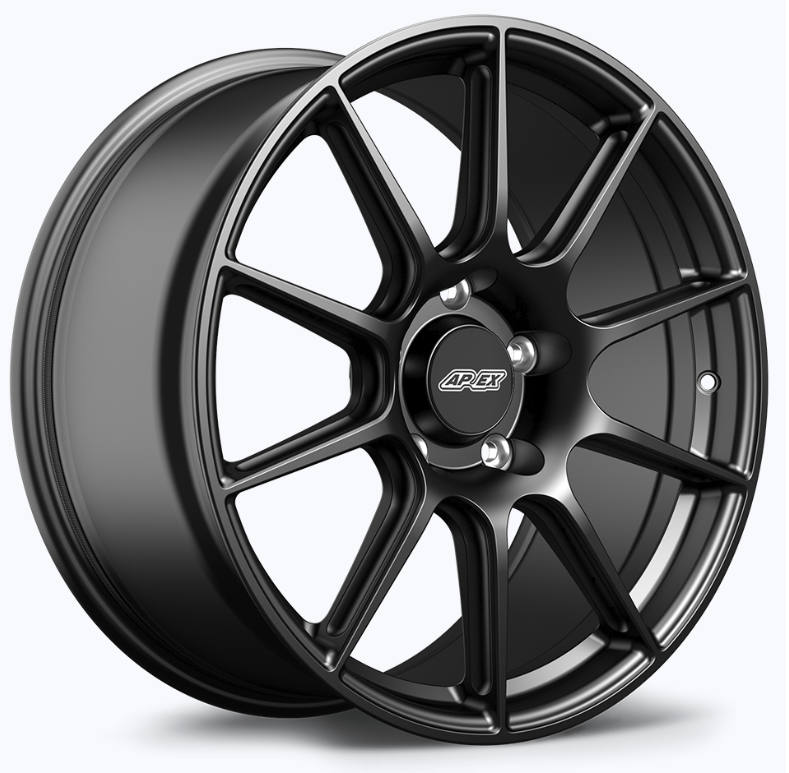

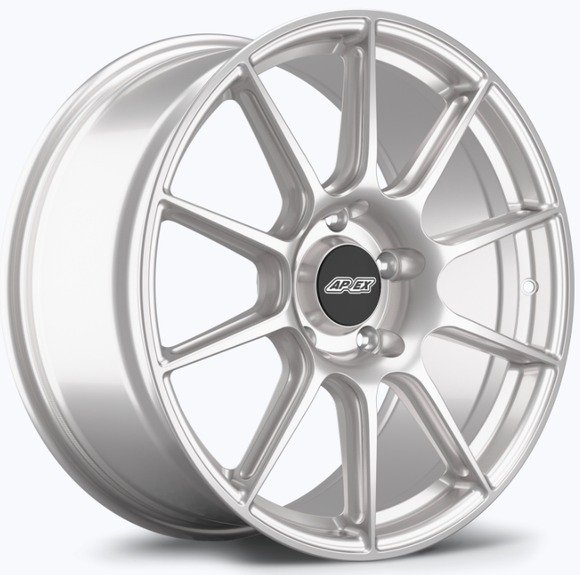

| MODEL | SM-10 |
| WHEEL SIZE | 19x9" ET50 |
| WHEEL DIAMETER | 19" |
| WHEEL WIDTH | 9.0" |
| OFFSET | ET50 |
| FACE PROFILE | Profile 1; shallow concavity |
| BOLT PATTERN | 5x130mm |
| CENTER BORE | 71.6mm |
| LOAD RATING | 1,620 lbs |
| WEIGHT | ~21 lbs |
| VIA REGISTRATION # | VIA-26-0530 |
