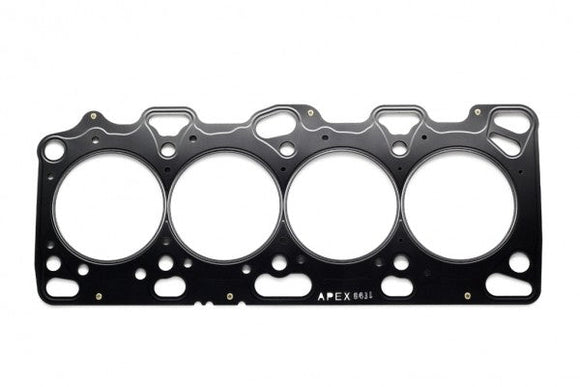

Apexi Engine/ Head Gasket Metal Head Gasket 4G63 86mm. T=1.1

$305.99 CAD

APEXi SKU: 814-M001

Earn [points_amount] when you buy this item.

814-M001The A'PEXi metal head-gaskets provide upgraded protection on high horsepower engines. Factory head-gaskets cannot withstand the pressures of high output operation and often cause the engine to "blow." This condition is actually caused by a failure in the factory head-gasket. A'PEXi recommends replacing the factory head-gasket with a metal one before gasket failure causes more damage to the engine. The gaskets are all designed engine specific and provide a complete and secure seal.

Bolt-On Yes
Part Number 86mm
814-M001 : T1.1
814-M002 : T1.5
- 87mm
814-M004 : T1.1
814-M005 : T1.5
Engine 4G63
Chassis CN9A, CP9A, CT9A
Gasket Type Grommet Type
Gasket Bore 86mm
Engine Bore Size (mm) 85mm (factory)
Gasket Thickness (mm) T=1.1mm T=1.5mm
Compression (Factory Head Gasket) 8.8
Compression (A'PEXi Head Gasket) 86mm
814-M001 :
814-M002 :
- 87mm
814-M003 :
814-M004 :
