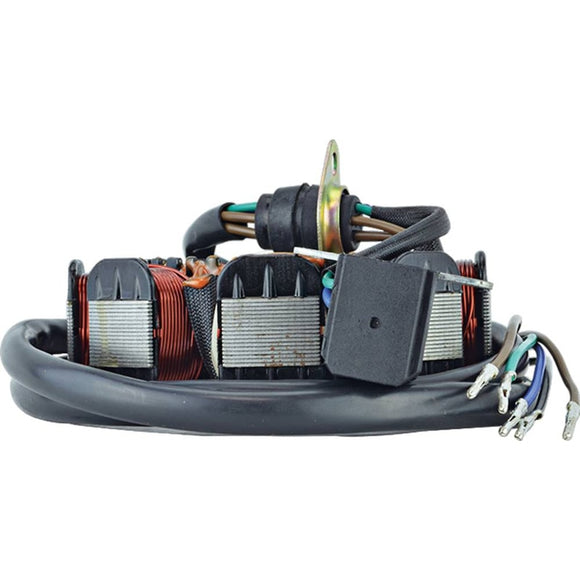

Arrowhead Kawasaki Stator Coil

Arrowhead Kawasaki Stator Coil

$345.47 CAD

Arrowhead SKU: arr340-58053

Earn [points_amount] when you buy this item.

Description Availability

Part 340-58053
J&N Electrical Products Stator Description
J&N Electrical Products Stator
Fits Models
JS 800 SX-R (04-11)
Specs
Volt12
ConditionNew
Lam Stack ID1.654"
Lam Stack ID42mm
Lam Stack OD103.300mm
Lam Stack OD4.067"
Lam Stack Thickness1.319"
Lam Stack Thickness33.500mm
8 Posts (2 Not Used) @Mounting Holes 3 - 6.6mm @Harness is 1020mm OAL @(5) Wires, All Male Bullet Terminal Ends (2 Brown, Green, Blue, Black) @Includes Magnetic Pick-up Coil

This website does not show live stock.

If the product is in stock we ship same/next day.

If a product needs to be ordered in the typical wait time is 1-2 weeks. This means the product is special ordered.

Shipping times vary depending if the part is in stock at our warehouse and which shipping option is chosen at checkout.

Please contact us for an accurate ETA and availability.
