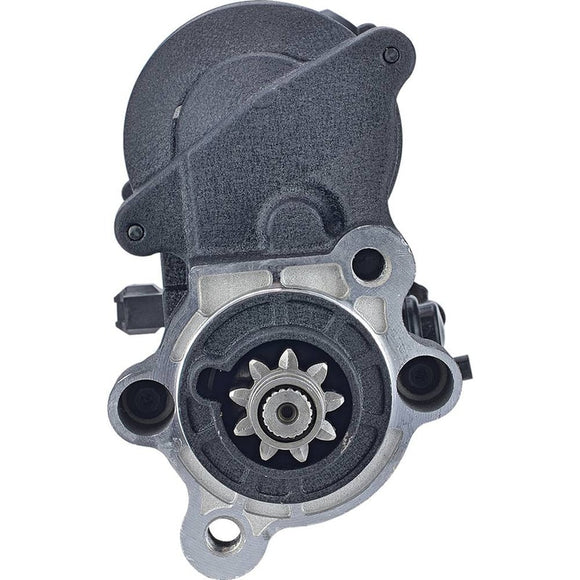

Arrowhead Harley-Davidson Starter Motor - 12-Volt - 9-Tooth

Part 410-52496
J&N Electrical Products Starter Description
J&N Electrical Products Starter
Fits Models
Blast [500cc] (00-09); M2 Cyclone [1200cc] (97-02); S1 Lightning [1200cc] (96-98); S2 Thunderbolt [1200cc] (95-96); S3 Thunderbolt [1200cc] (97-01); X1 Lightning [1200cc] (00-02); XB12R Firebolt [1200cc] (05-09); XB12S Lightning [1200cc] (05-08); XB12X DX Ulysses [1200cc] (06-09); XB9R Firebolt [900cc] (03-06); XB9S Lightning [900cc] (03-04); XB12X DX Ulysses [1200cc] (08-09); XL [1000cc] (81-85); XL [883cc] (81-86); XL 1200 (97-98); XL 1200 50 50TH Anniv. (07); XL 1200C Custom (97-01,03-20); XL 1200C Custom Anniv. (13); XL 1200CA Custom Limited A (13-16); XL 1200CB Custom Limited B (13-17); XL 1200CP Custom (11-16); XL 1200CX Roadster (17-20); XL 1200L Low (07-11); XL 1200N Nightster (08-12,18); XL 1200NS Iron (19-20); XL 1200R Roadster (04-09); XL 1200S Sport (97-01,03); XL 1200T Super Low (15-20); XL 1200V Seventy-Two (13-16); XL 1200X Forty-Eight (11-20); XL 883 (97-98,02,04-09); XL 883 50 50TH Anniv. (07); XL 883C Custom (99-10); XL 883L Low (05-10); XL 883L Super Low (11-17,19-20); XL 883N Iron (09-20); XL 883R (03,07-10); XL 883R Race Replica (02,05-06); XL 883R Roadster (11-15); XLH 1000 (81-85); XLH 1100 Evolution (86-87); XLH 1200 (88-96,99-03); XLH 883 (88-96,99-01,03); XLH 883 Deluxe (88-96); XLH 883 Evolution (86-87); XLH 883 Evolution Deluxe (86-87); XLH 883 Evolution Hugger (87); XLH 883 Hugger (88-03); XLHA Sportster Annv. [1000cc] (82); XLHC 1200 Custom (95-96,02); XLHS 1200 Sport (95-96,02); XLR 1200X (11-13); XLS Roadster [1000cc] (81-85); XLSA Roadster Anniv. [1000cc] (82); XLX 1000 (83-85); XR 1000 (83-85); XR 1200 (08-10); XR 1200X (10); XL 883L Super Low (19)
Specs
Lester17632, 18200, 18477
FamilyDenso RA
Volt12
Power1.400 kw
HP1.877
ColorBlack Wrinkle
ConditionNew
Rotation DirectionClockwise
Electric Starter TypeOffset Gear Reduction (OSGR)
Number of Teeth9
Gear OD1.122"
Gear OD28.500mm
Length156 mm
Length6.142"
Mount Hole ID 13/8-24
Mount Hole 1 TypeThreaded
Mount Hole ID 23/8-24
Mount Hole 2 TypeThreaded
Registry OD2.157"
Registry OD54.800mm
Warranty1 Year
M8-1.25 B+ Stud @Spade S Terminal
Mounting Ear Distance 13.150"
Mounting Ear Distance 180mm
