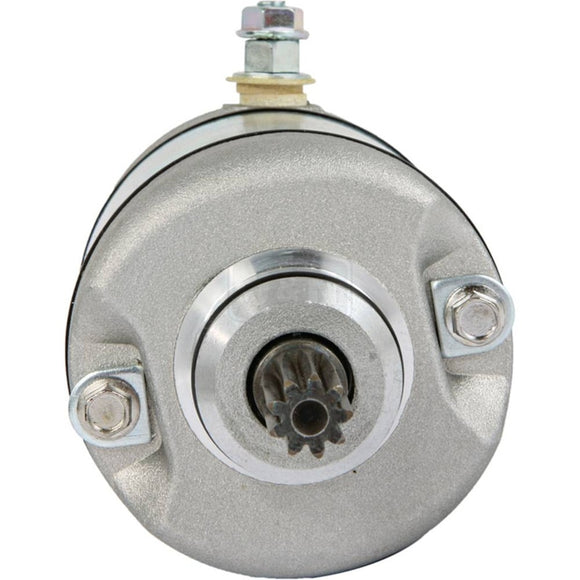

Arrowhead Mitsuba 12V 9T Str

Arrowhead Mitsuba 12V 9T Str

$211.48 CAD

Arrowhead SKU: arr410-54222

Earn [points_amount] when you buy this item.

Description Availability

Part 410-54222
J&N Electrical Products Starter Description
J&N Electrical Products Starter
Fits Models
CH 250 Elite (89-90); NSS 250 (01-07); PS 250 Big Ruckus (05-06)
Specs
Lester18583, 19641
Volt12
ConditionNew
Rotation DirectionClockwise
Electric Starter TypePermanent Magnet Direct Drive (PMDD)
Number of Teeth9
Gear OD0.457"
Gear OD11.600mm
Length137.300 mm
Length5.406"
Mount Hole ID 16.500mm
Mount Hole 1 TypeUnthreaded
Mount Hole 2 TypeUnthreaded
Registry OD1.181"
Registry OD30mm
Warranty1 Year
M6 B+ Stud
Mounting Ear Distance 11.181"
Mounting Ear Distance 130mm

This website does not show live stock.

If the product is in stock we ship same/next day.

If a product needs to be ordered in the typical wait time is 1-2 weeks.

Shipping times vary depending if the part is in stock at our warehouse and which shipping option is chosen at checkout.

Please contact us for an accurate ETA and availability.
