AWE Exhaust Suite for the 4th Gen Toyota Tacoma

Rugged where it matters most. Presenting the AWE 0FG Exhaust Suite for the (non-hybrid) Gen4 Toyota Tacoma:

• 50-state emissions-compliant 3” catback configuration available with rugged high-clearance BashGuard™ or dual 4.5” tips
• Handcrafted from CNC mandrel-bent 3" U.S.-sourced .065” wall T304L stainless steel
• Bespoke resonated midpipe featuring AWE’s patented drone-canceling 180 Technology® for maximum comfort on the highway
• Factory-matched inlet flange for ease of installation
• High-clearance BashGuard™ configuration ends after the rear axle making it street-legal, and features an extra thick reinforced stainless ring on the outlet, built for bashing
• 4.5” double-walled slash-cut tips available in chrome silver or diamond black
• Wheelbase extensions are included with every kit
• Less is more: clean, straight-through design maximizes performance
• Direct bolt-on, no cutting required
• Manufactured in-house at AWE
• AWE No CEL Guarantee
• AWE Perfect Fitment Guarantee
• AWE Lifetime Warranty

Rugged where it matters most.

Presenting the 0FG Exhaust Suite for the '24+ (non-hybrid) Toyota Tacoma 2.4T:

The 0FG Exhaust:

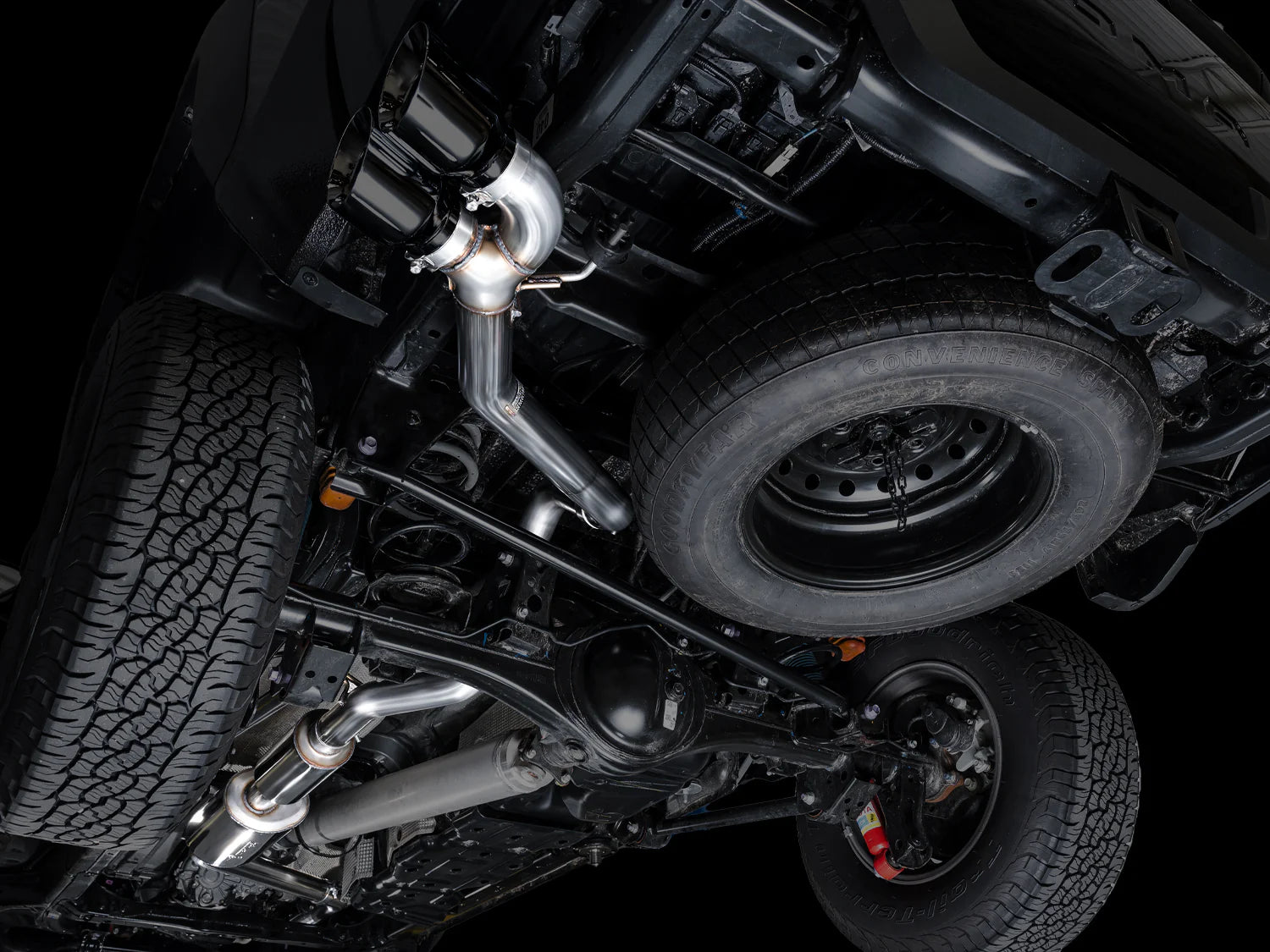

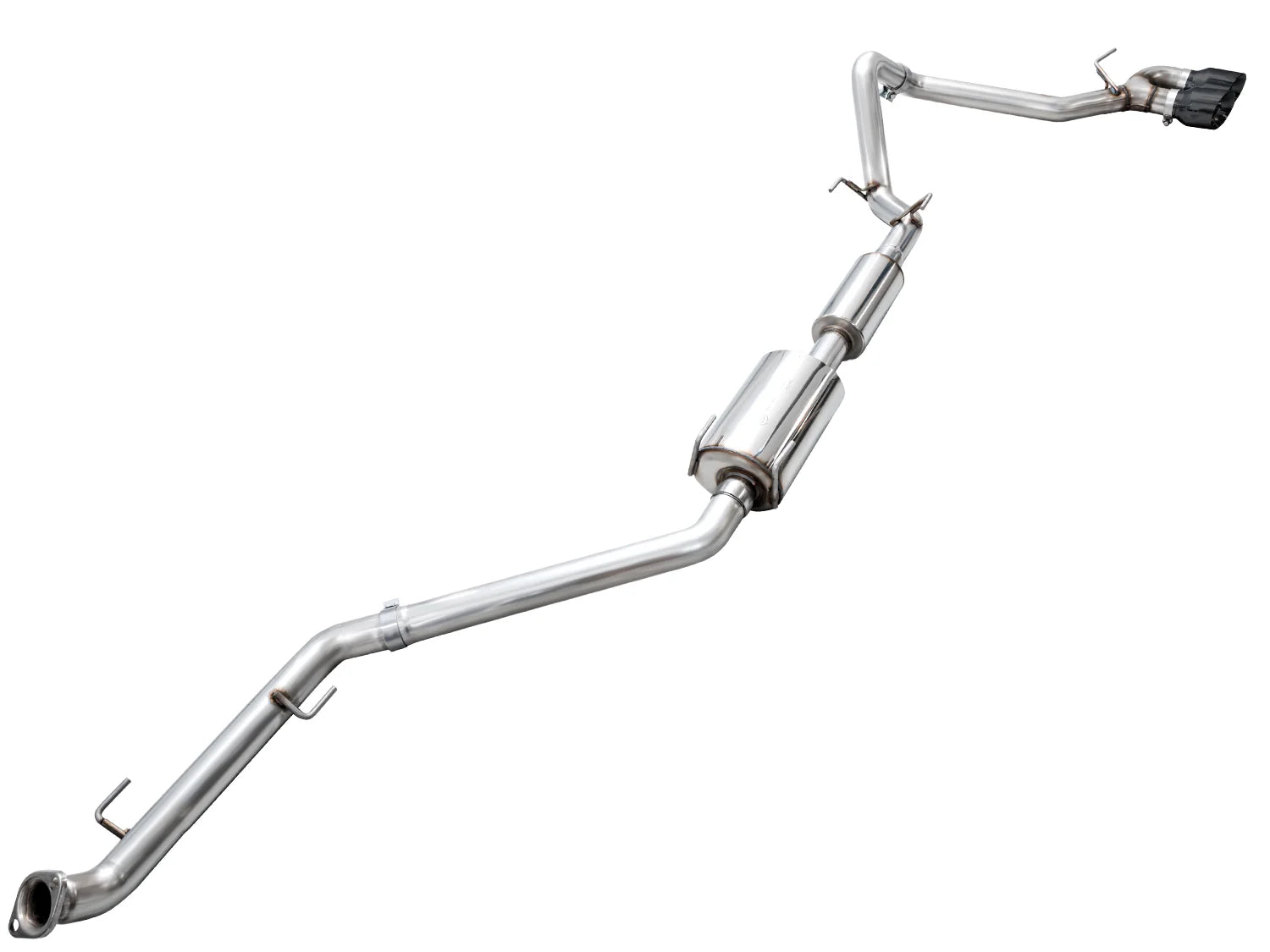

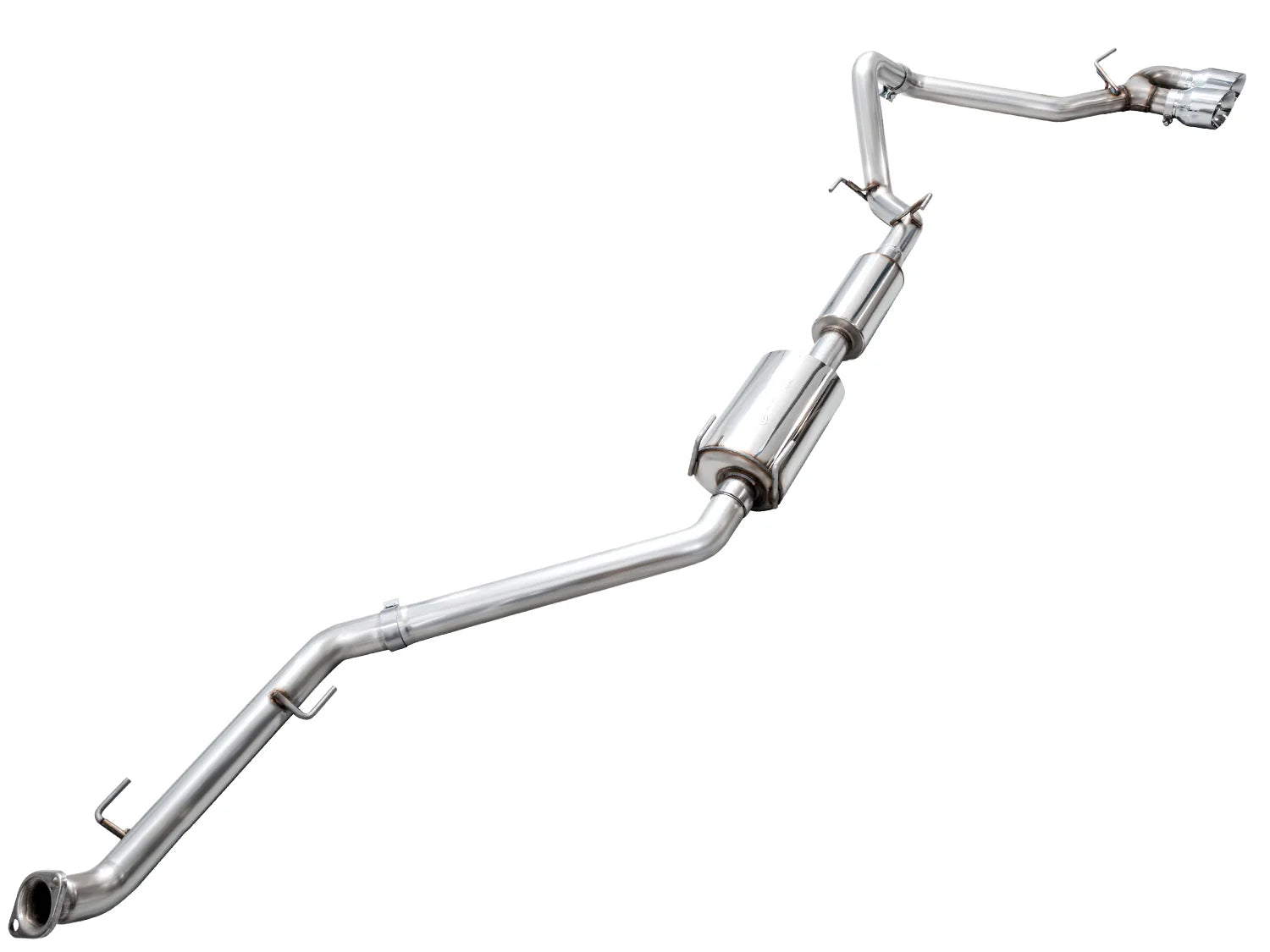

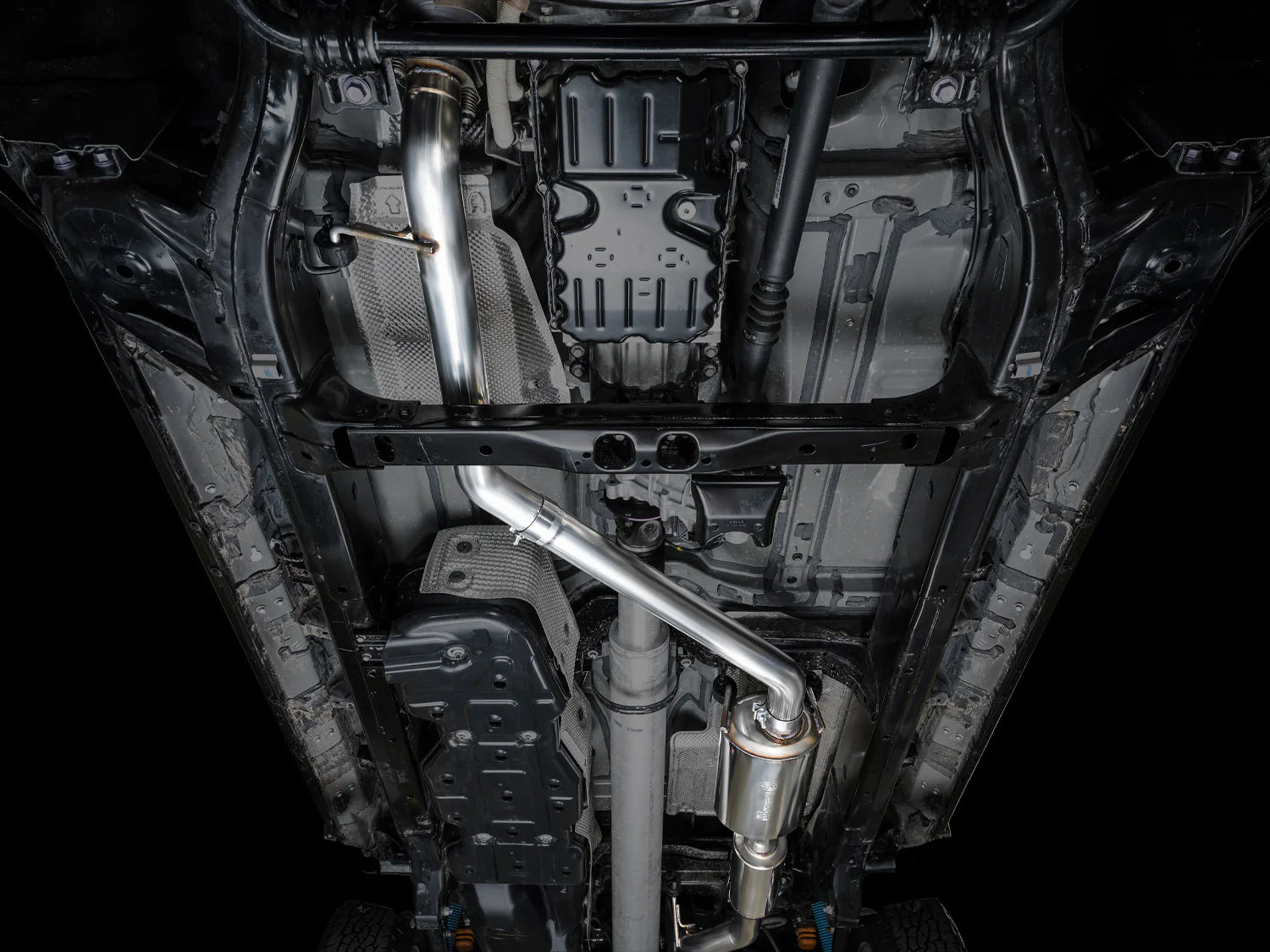

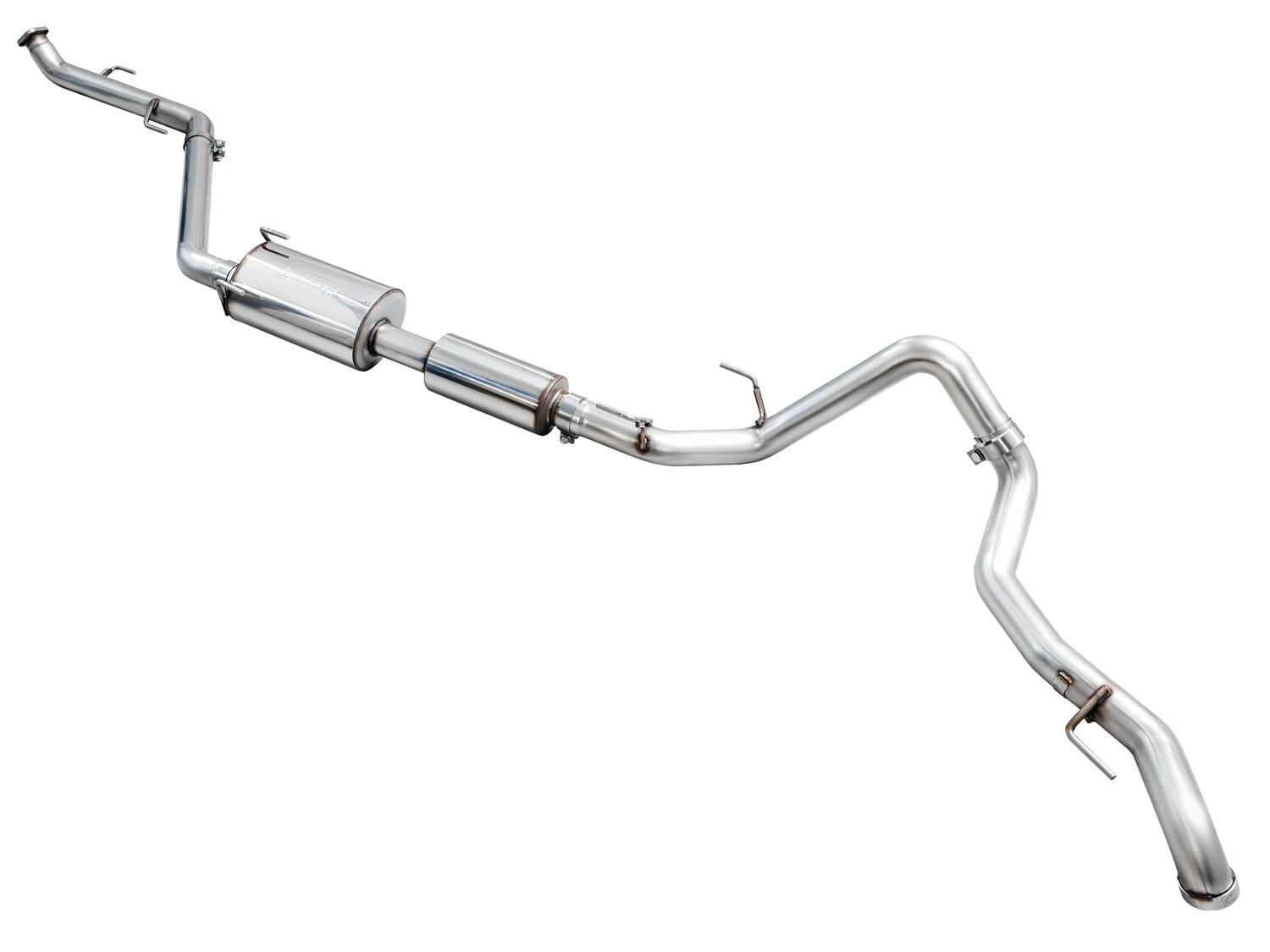

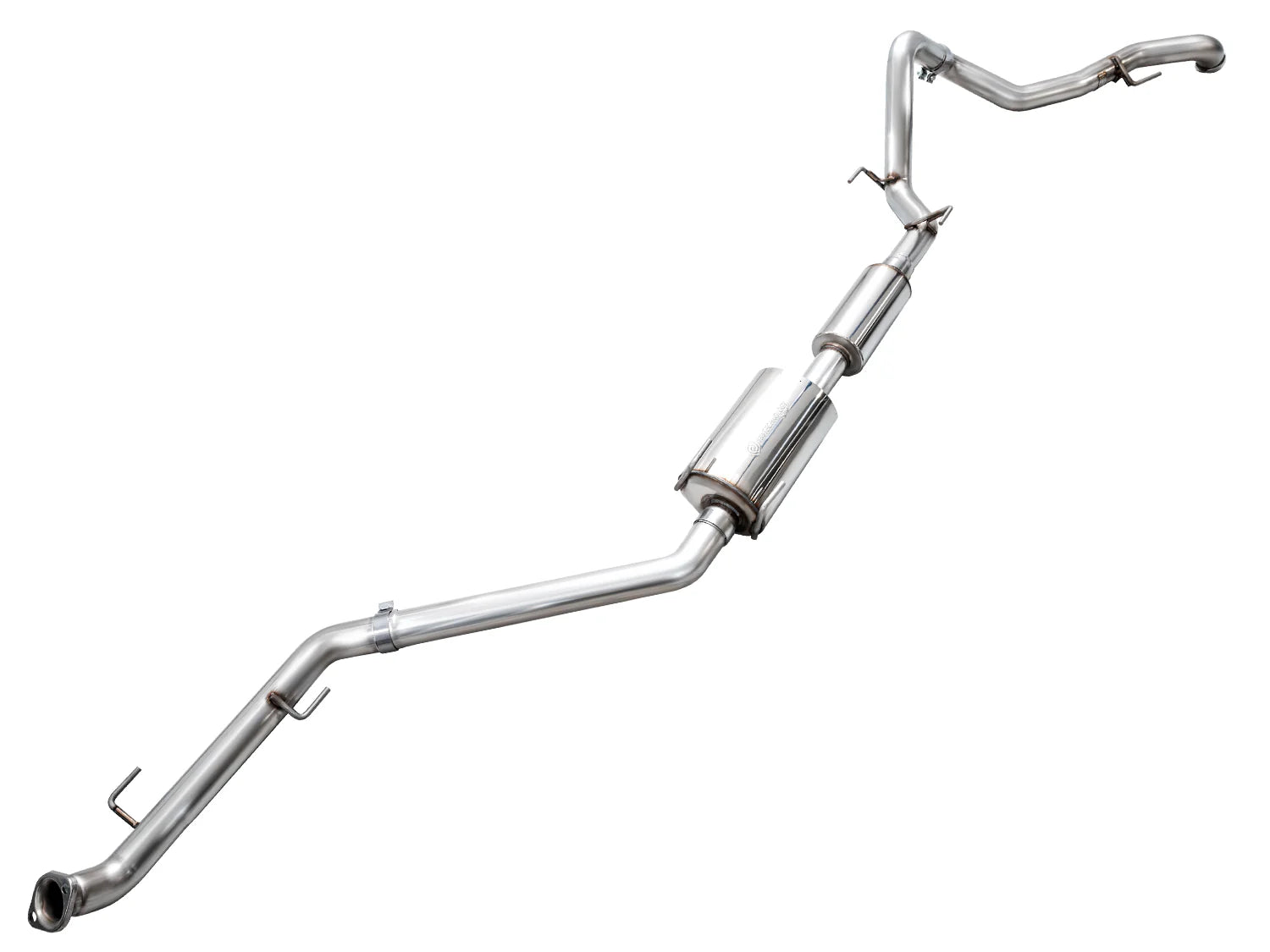

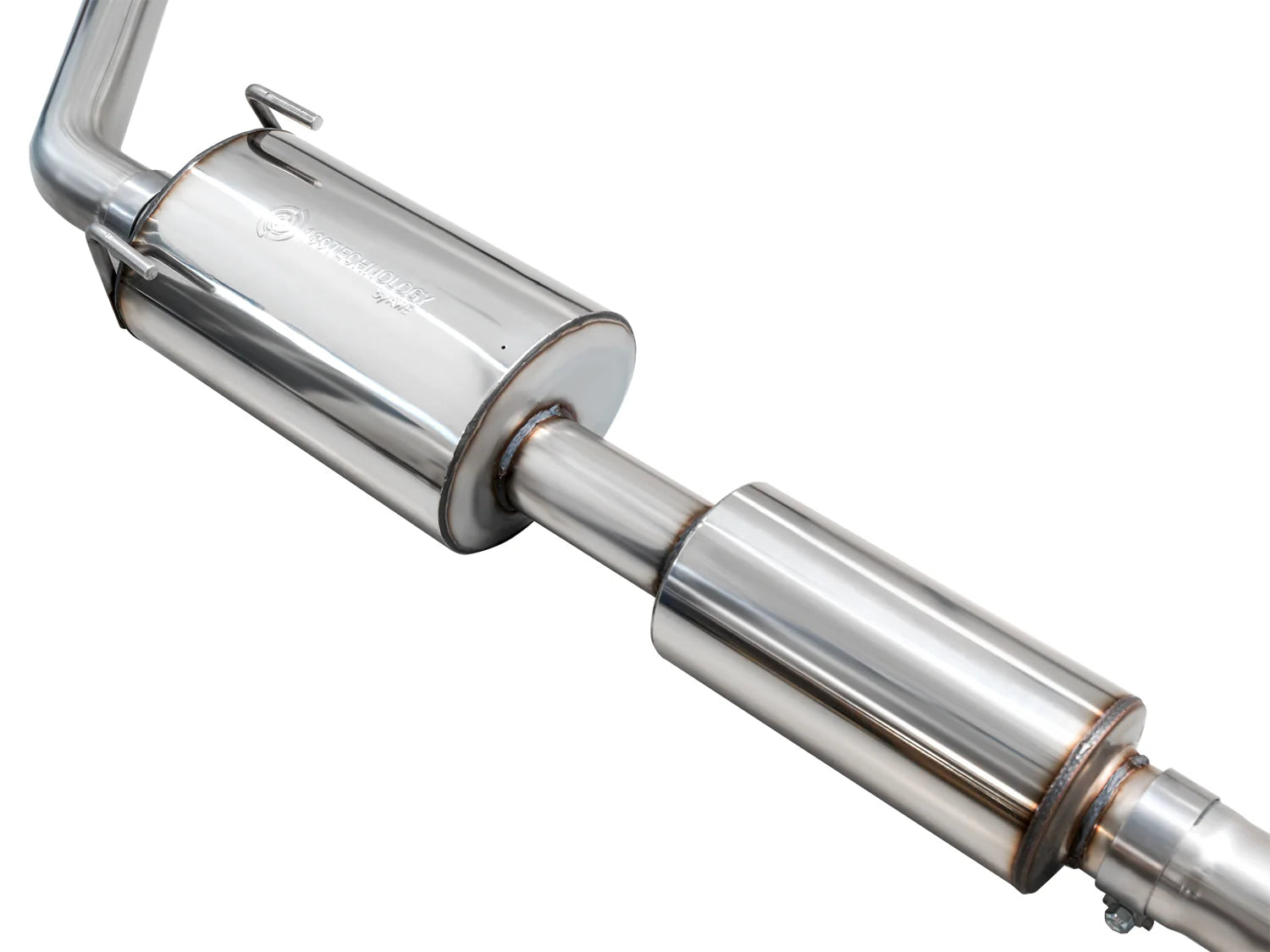

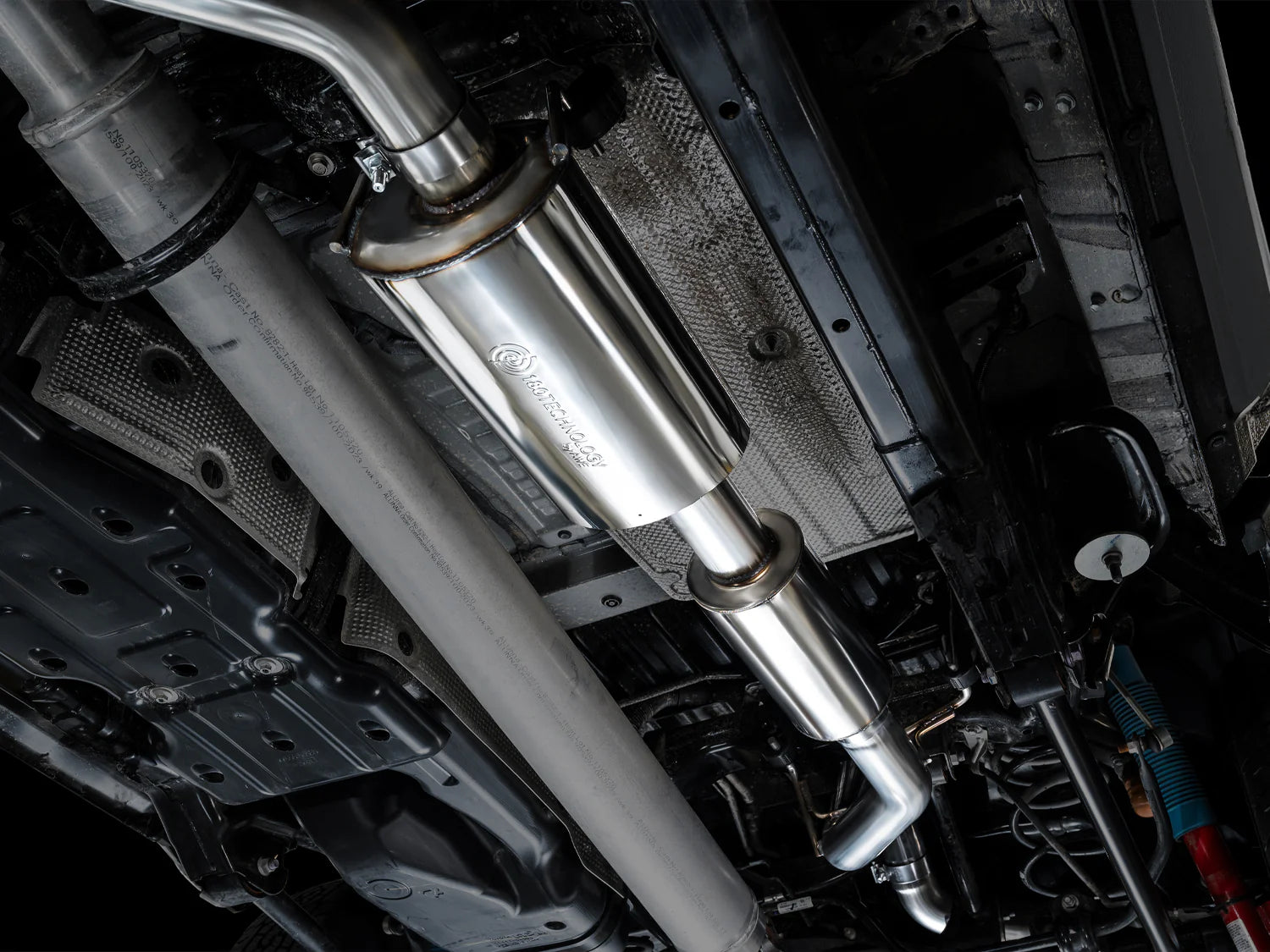

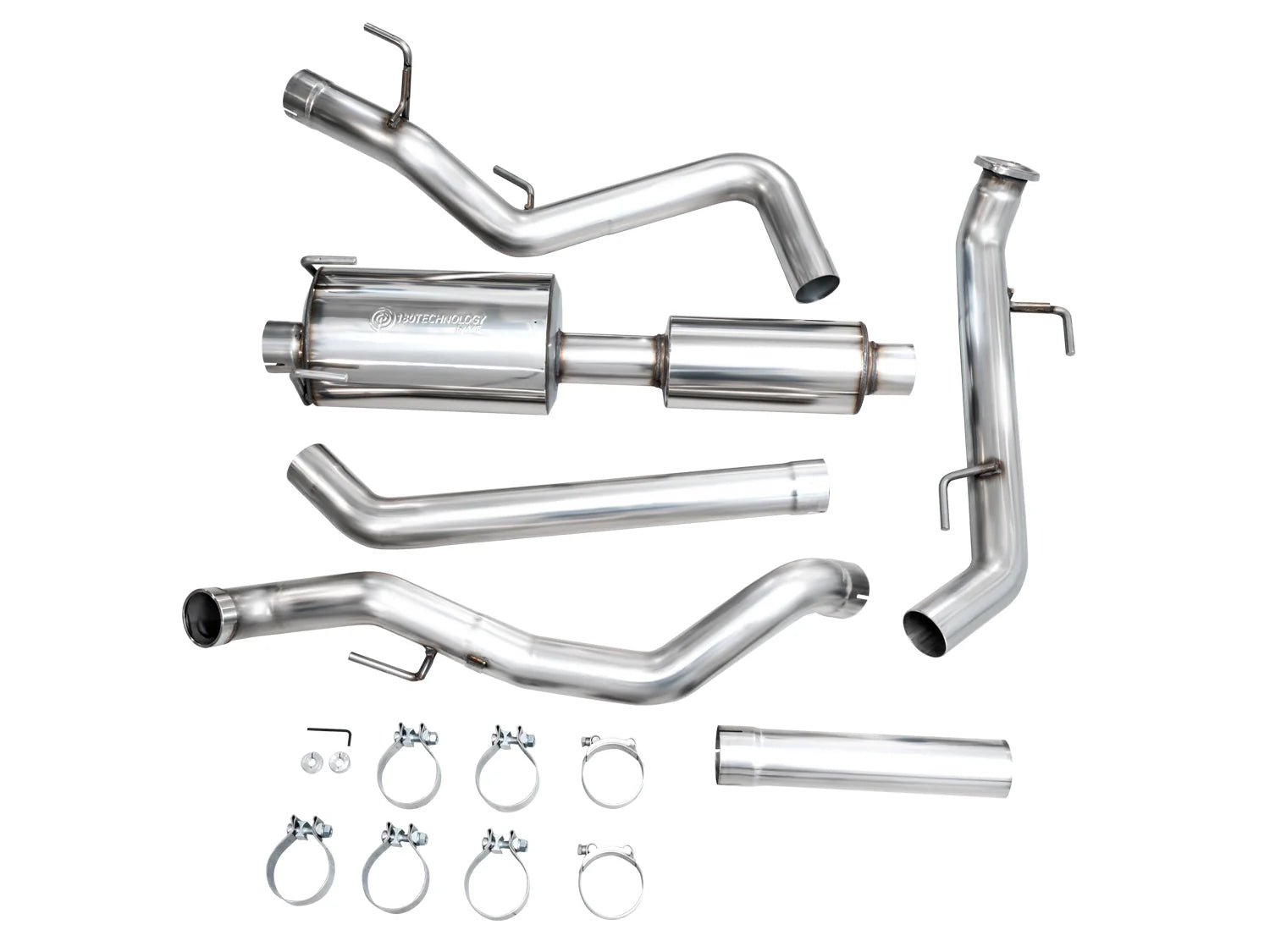

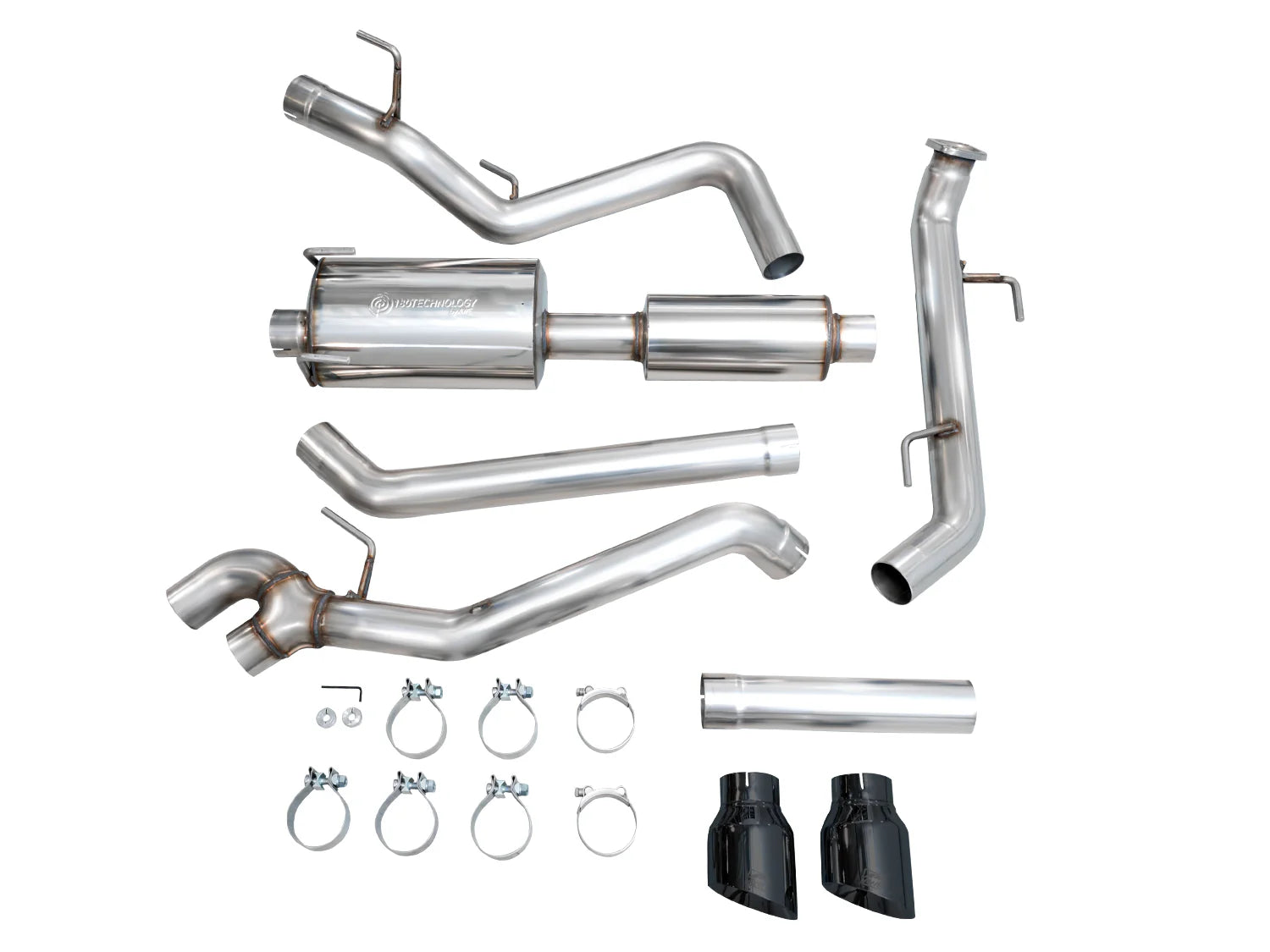

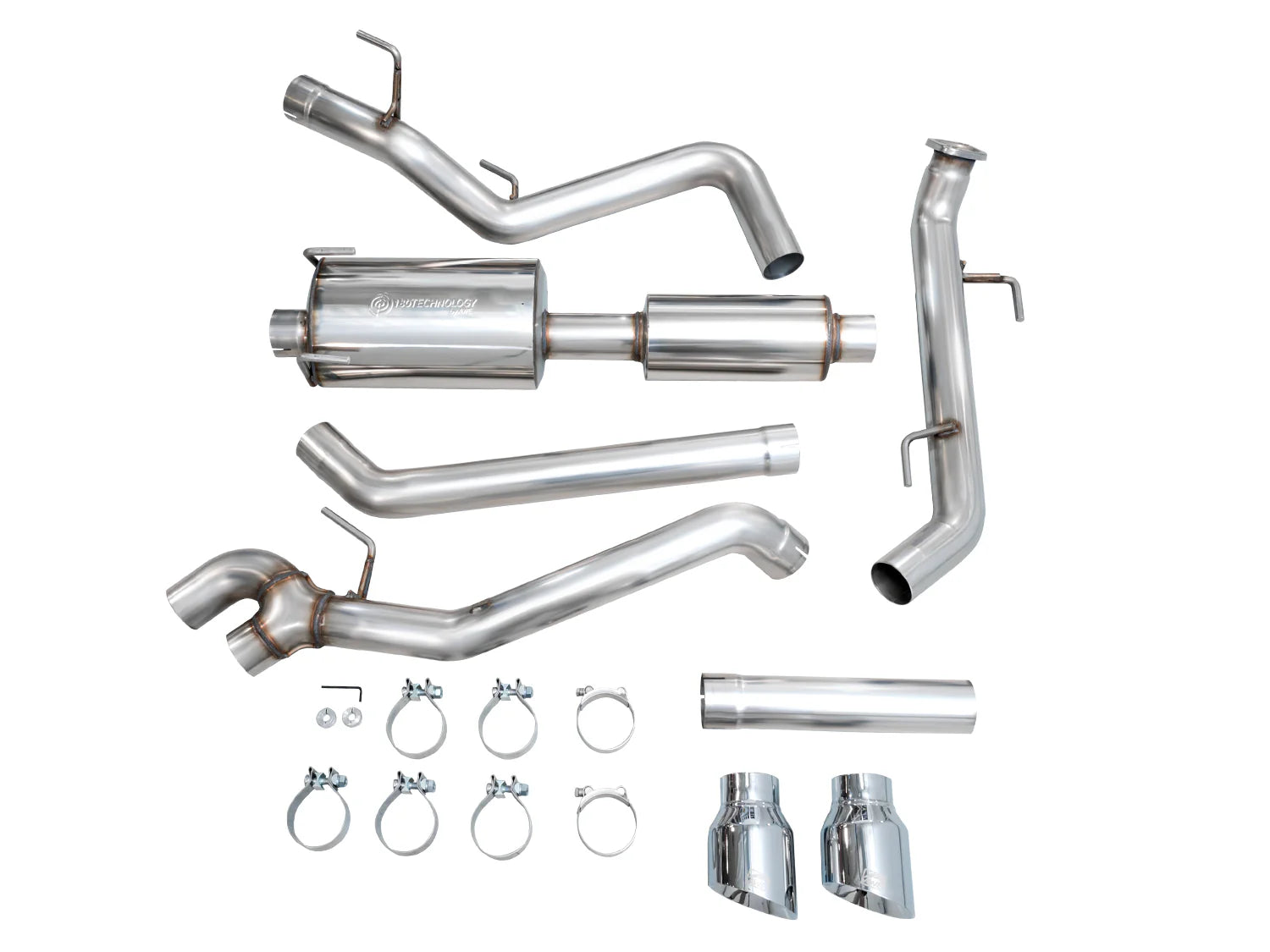

Single 3” American-sourced T304L stainless steel with a wall thickness of .065” runs smoothly from front to back, featuring a factory-matched flange at the inlet, bolting up right after the emissions equipment. A bespoke, straight-through, dual resonated midpipe brings life to the 2.4T. Equipped with AWE’s patented drone-canceling 180 Technology® for in-cabin comfort, and an additional, tailored resonator responsible for keeping the tones rich and deep, the 0FG provides a proper soundtrack regardless of where you are in the rev range. Each 0FG Catback features modular extensions for long wheelbase Tacomas, and they’re included in every kit.

Perfect tone, compliments of AWE 180 Technology®.

Keeping the aggression at the rear of the Tacoma, and out of the cabin, is AWE’s patented drone-canceling solution, 180 Technology®.

As exhaust gasses exit the 2.4T engine and flow into an AWE 180 Technology® equipped resonator, they pass through strategically located ports, and into reflection chambers. Sound waves, carried by these exhaust gasses, bounce off the walls of the reflection chambers. By controlling the size and location of the ports and the chambers, we also control when the sound waves exit the chambers. The specific timing of when the reflected sound waves rejoin the main exhaust flow creates a one-hundred-and-eighty-degree out-of-phase sound wave that cancels out problematic frequencies.

Full-bodied aggression remains behind the driver, and complete comfort is achieved in the cabin at cruising speeds, all while unlocking a superior soundtrack and optimal flow compared to stock.

BashGuard™ & Dual Tips:

Drivers have the option between AWE’s high-clearance BashGuard™ configuration or dual 4.5” tip configuration.

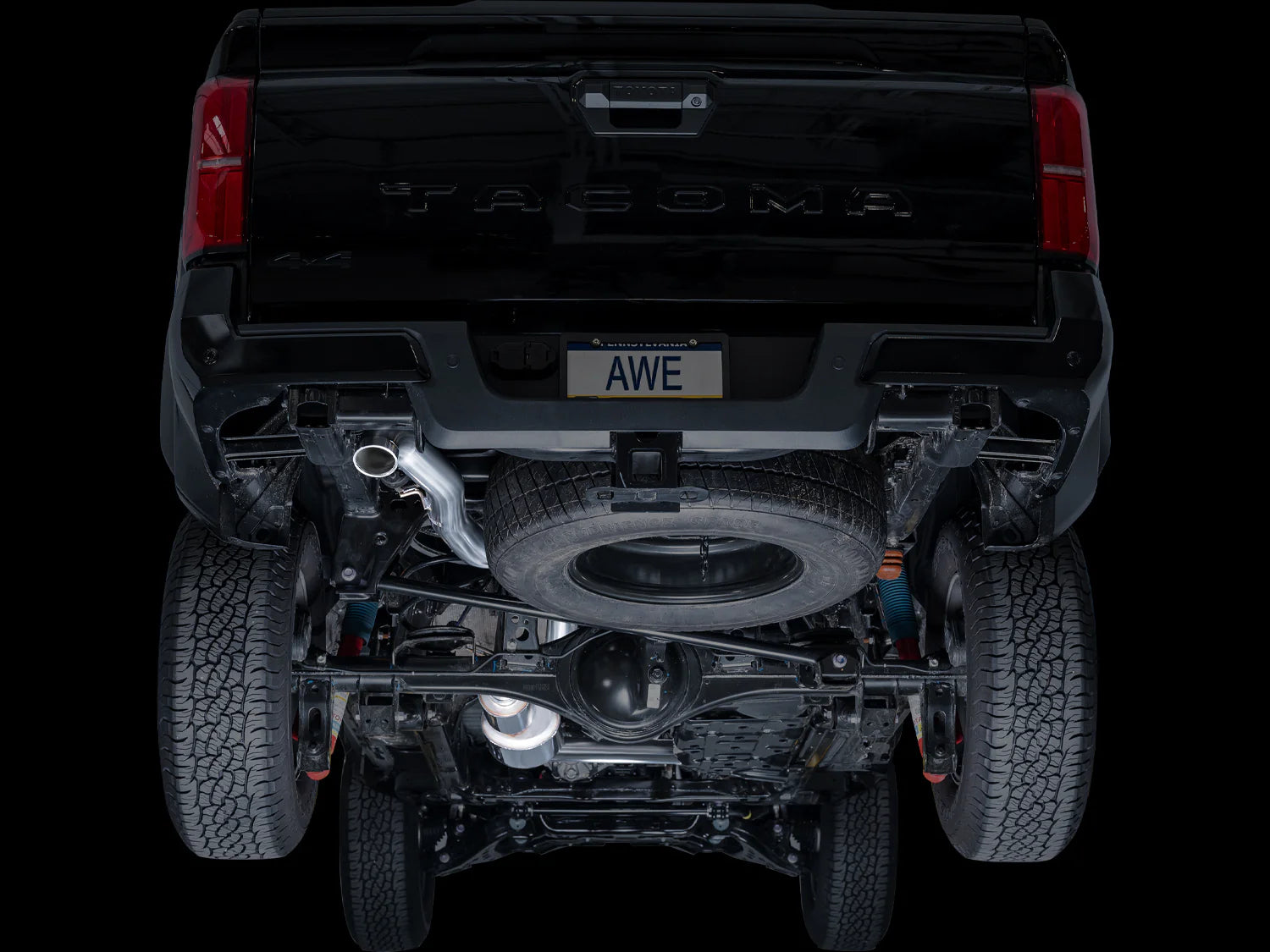

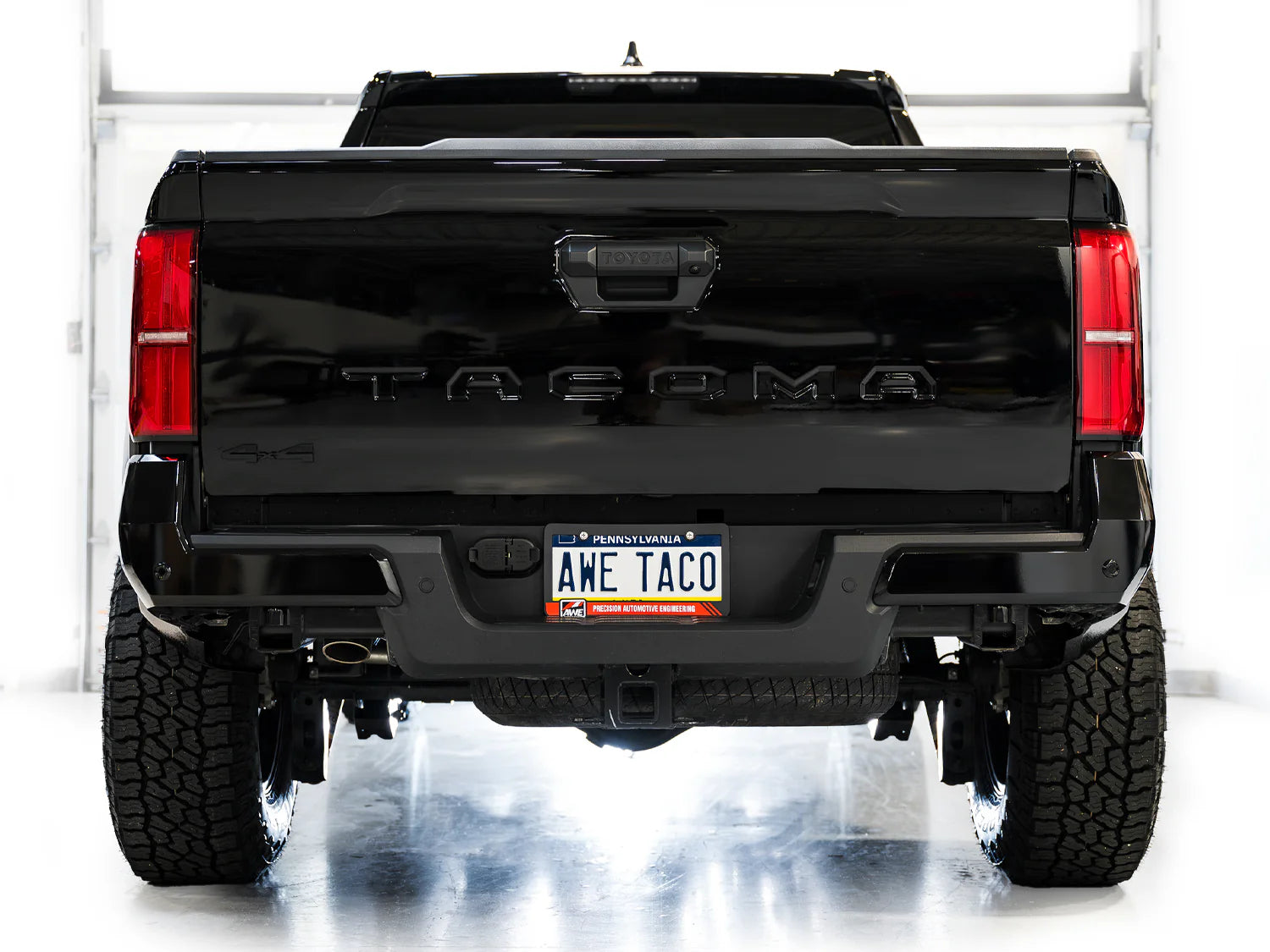

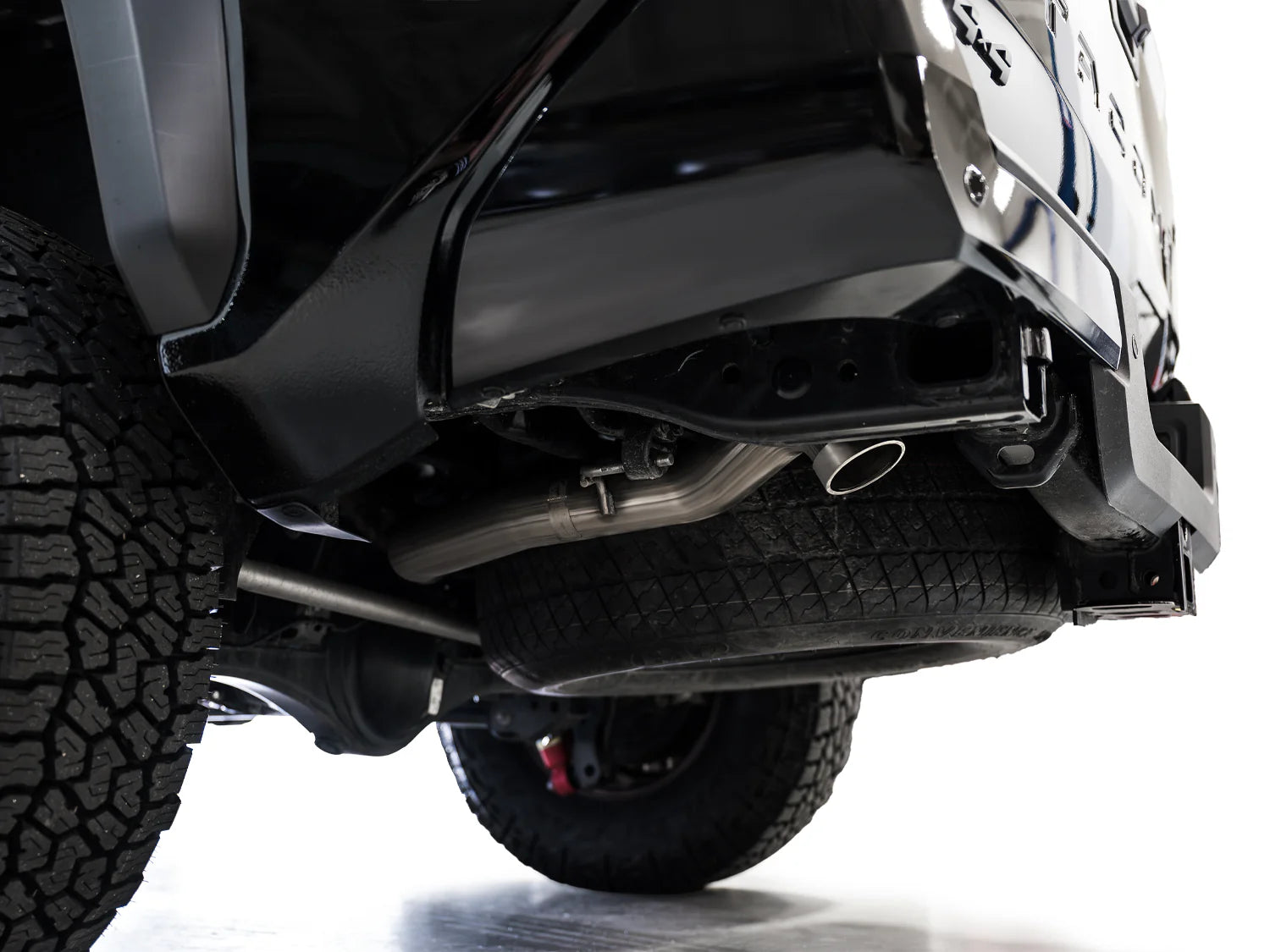

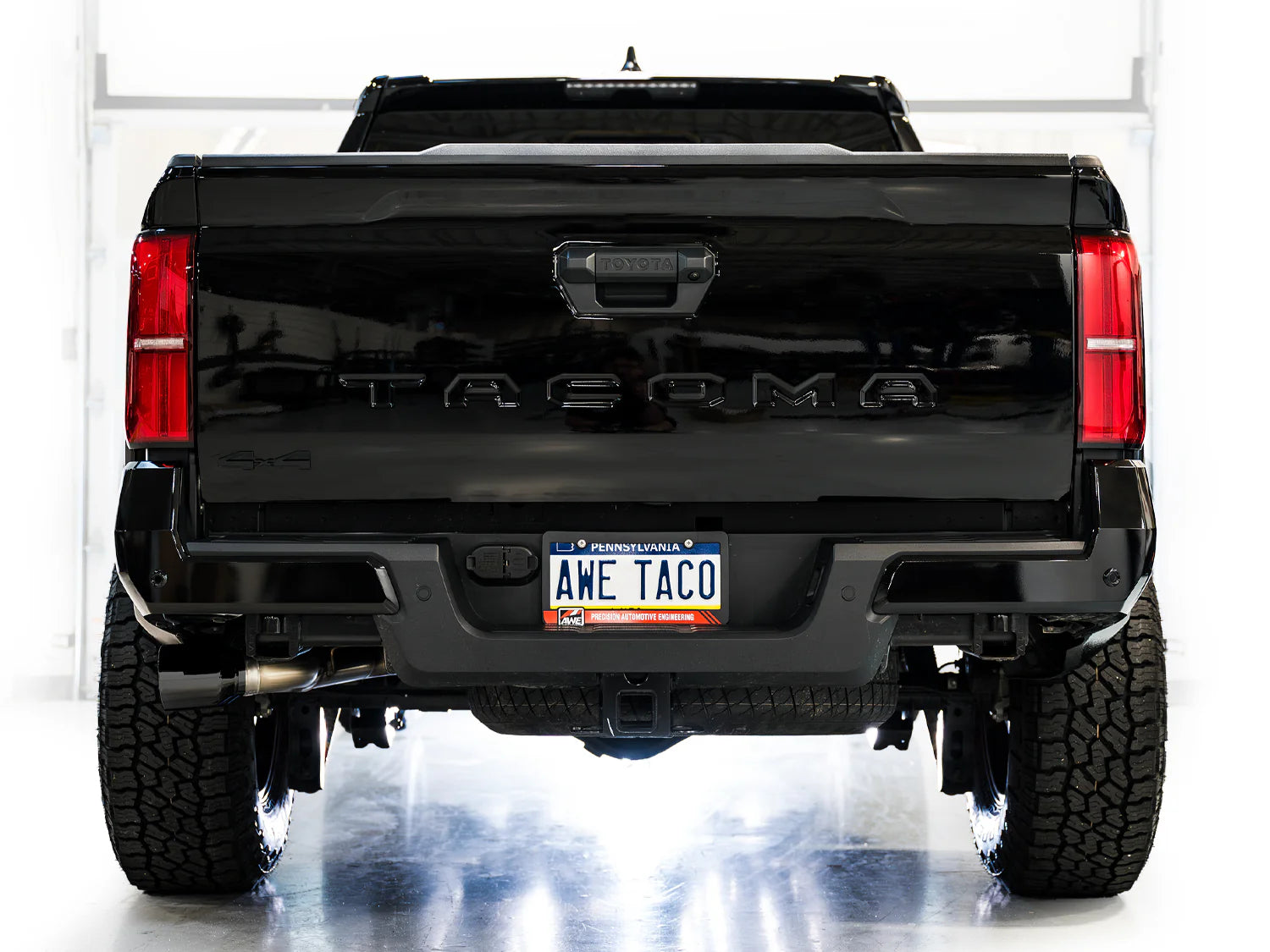

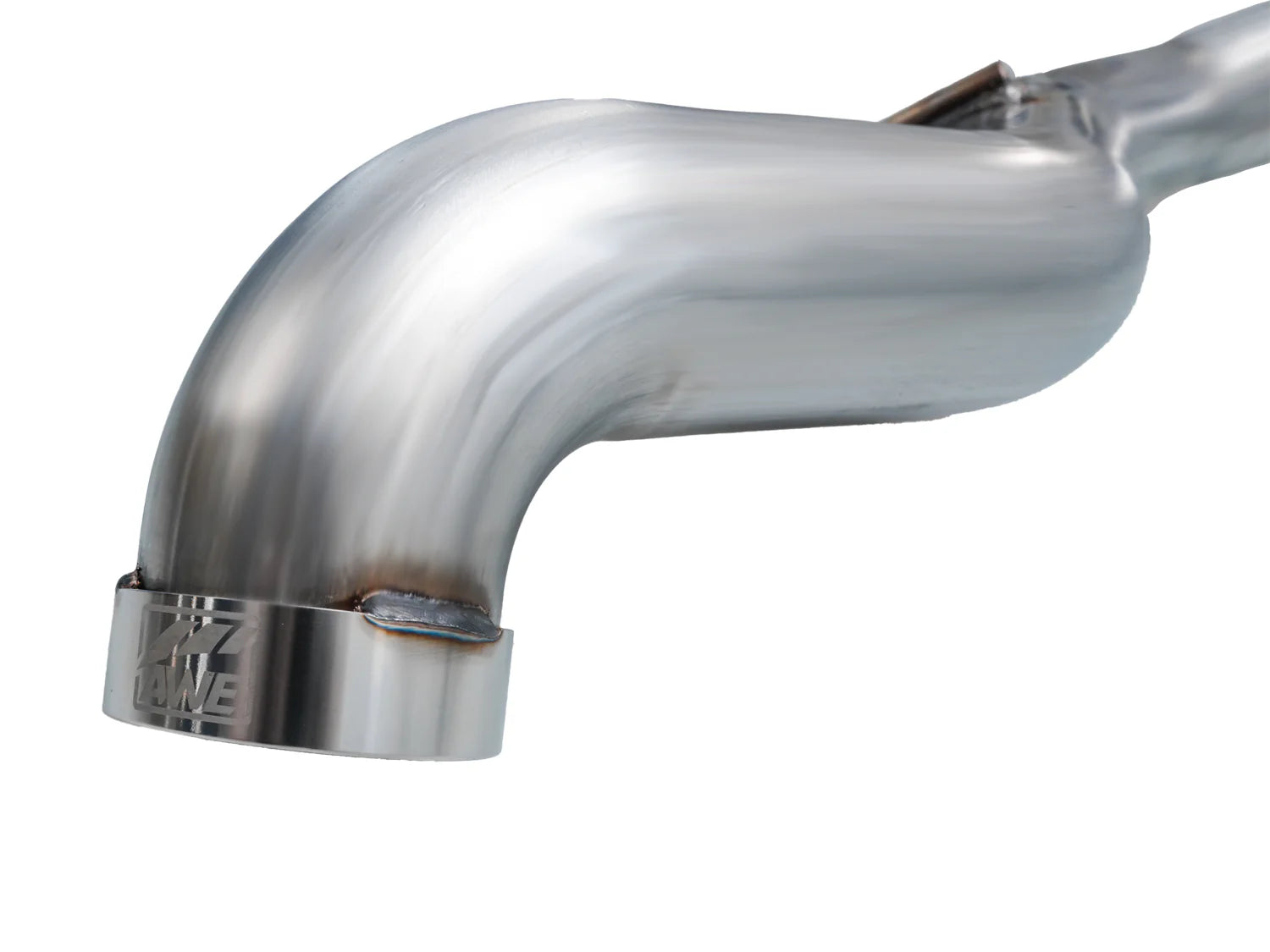

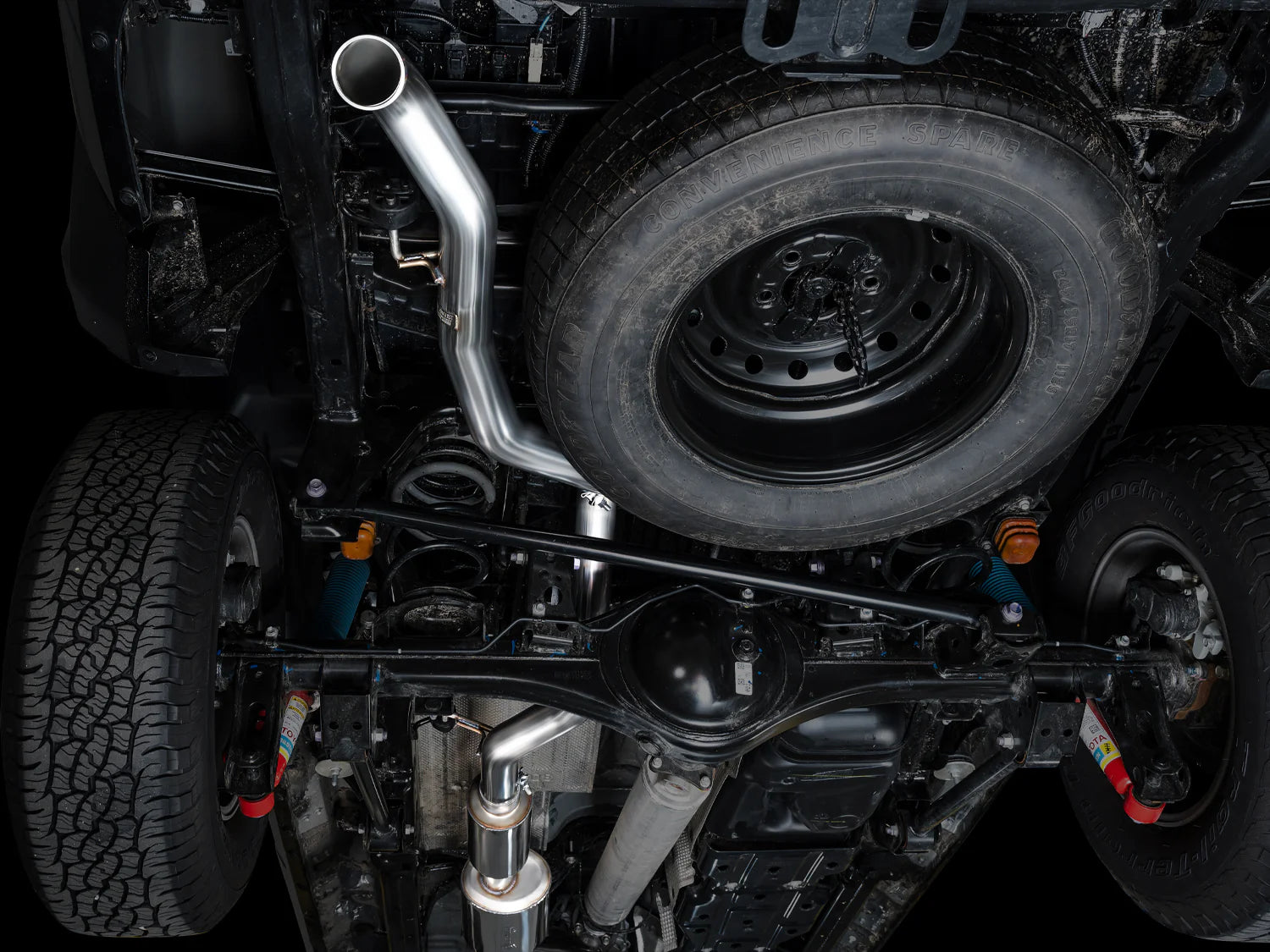

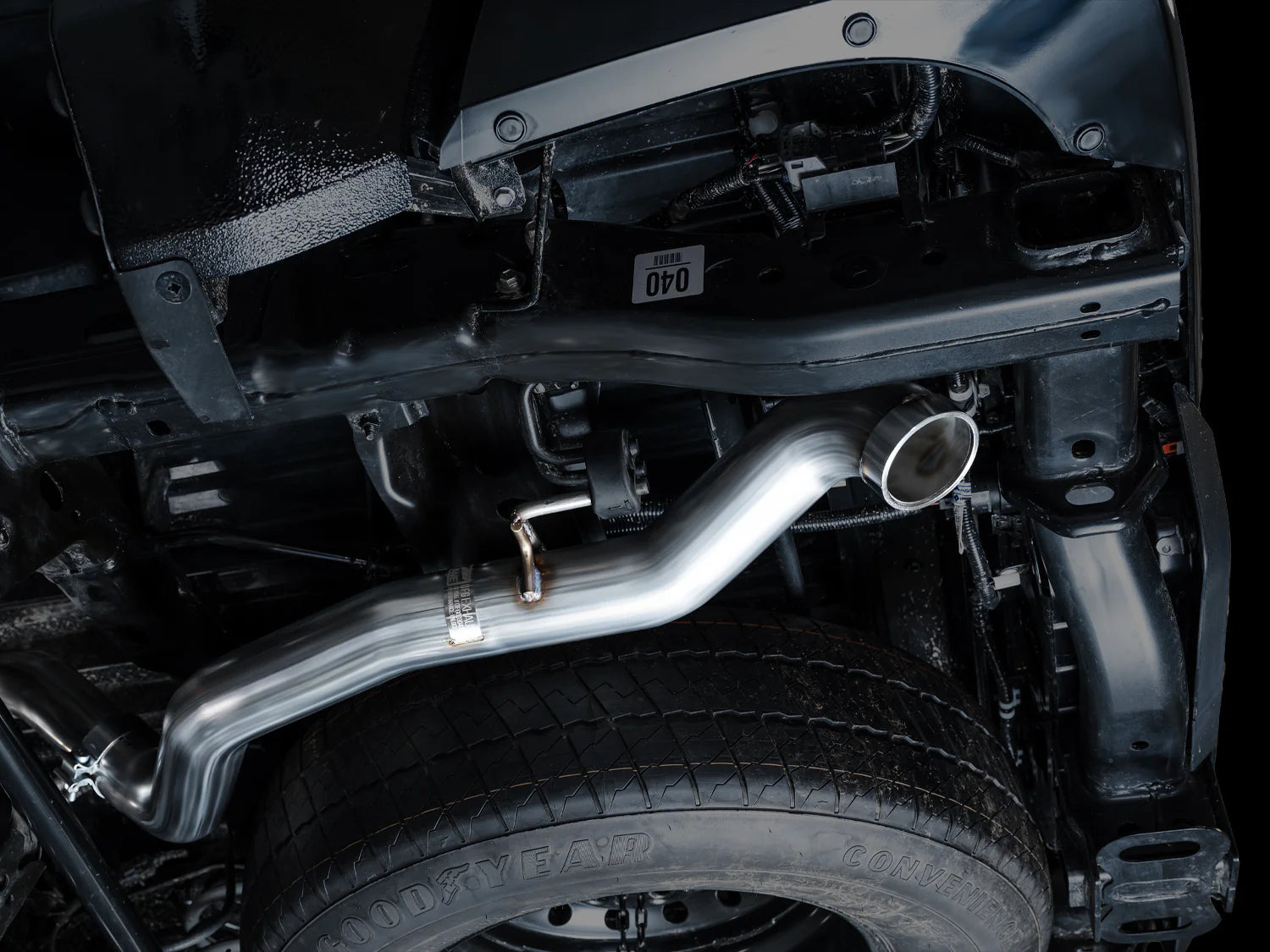

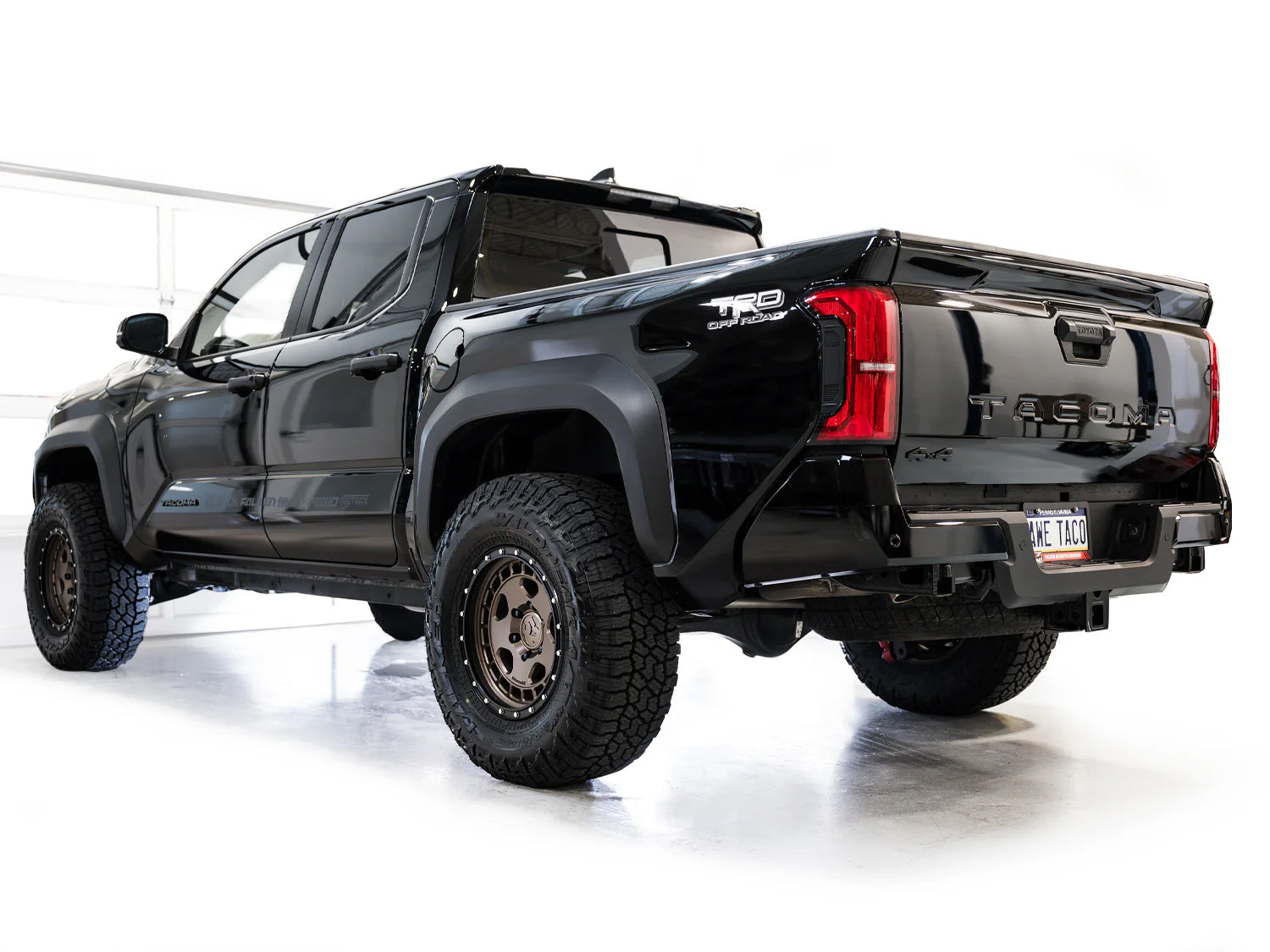

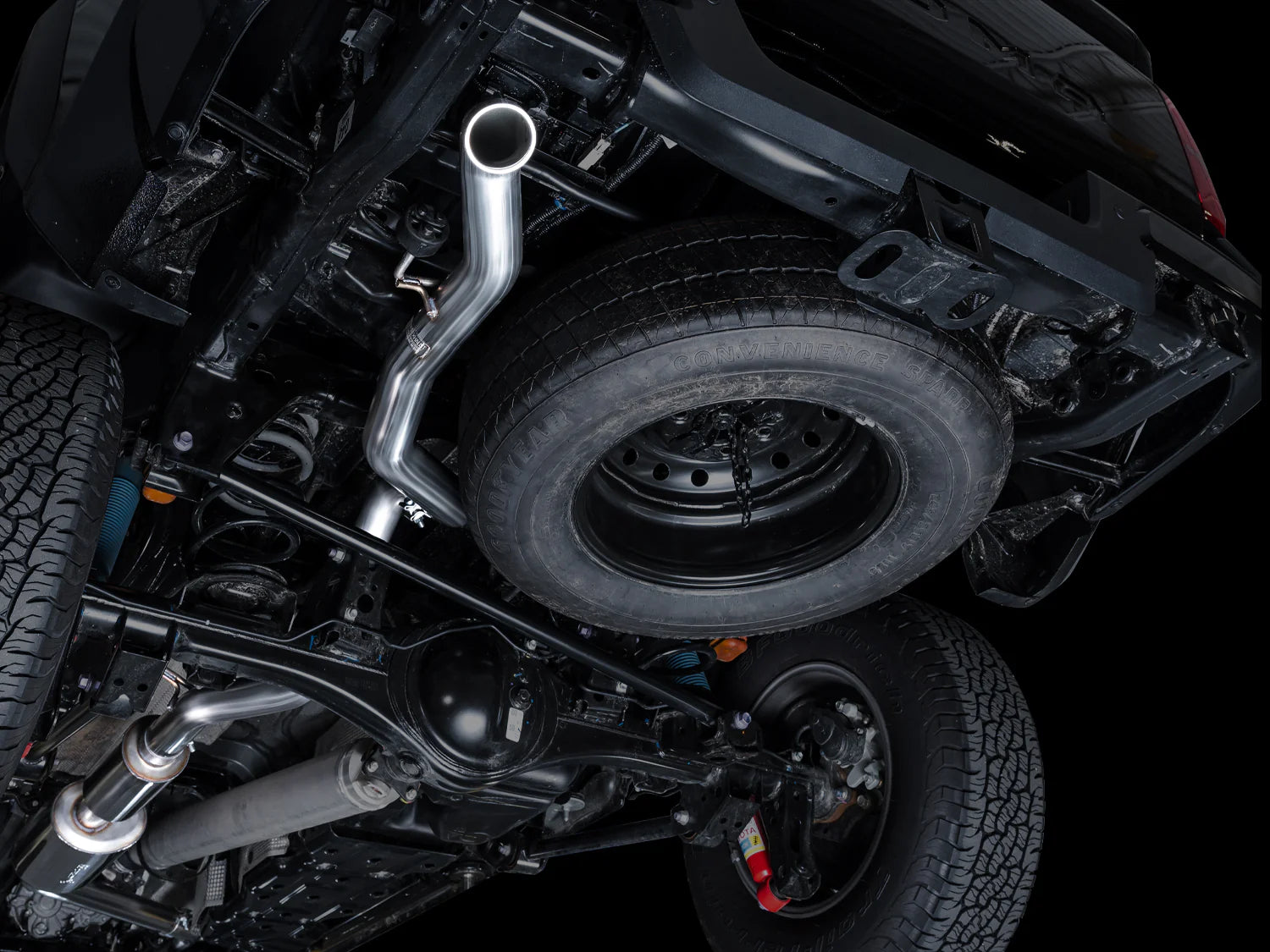

BashGuard™: What’s BashGuard? Thanks for asking. The AWE BashGuard™ is appropriately equipped with a .125” thick reinforced stainless ring of the exhaust outlet, tucked up really high out of the way of danger. This configuration is barely visible when looking at Tacoma on the ground, and quite literally impossible for any of Earth’s obstacles to reach.

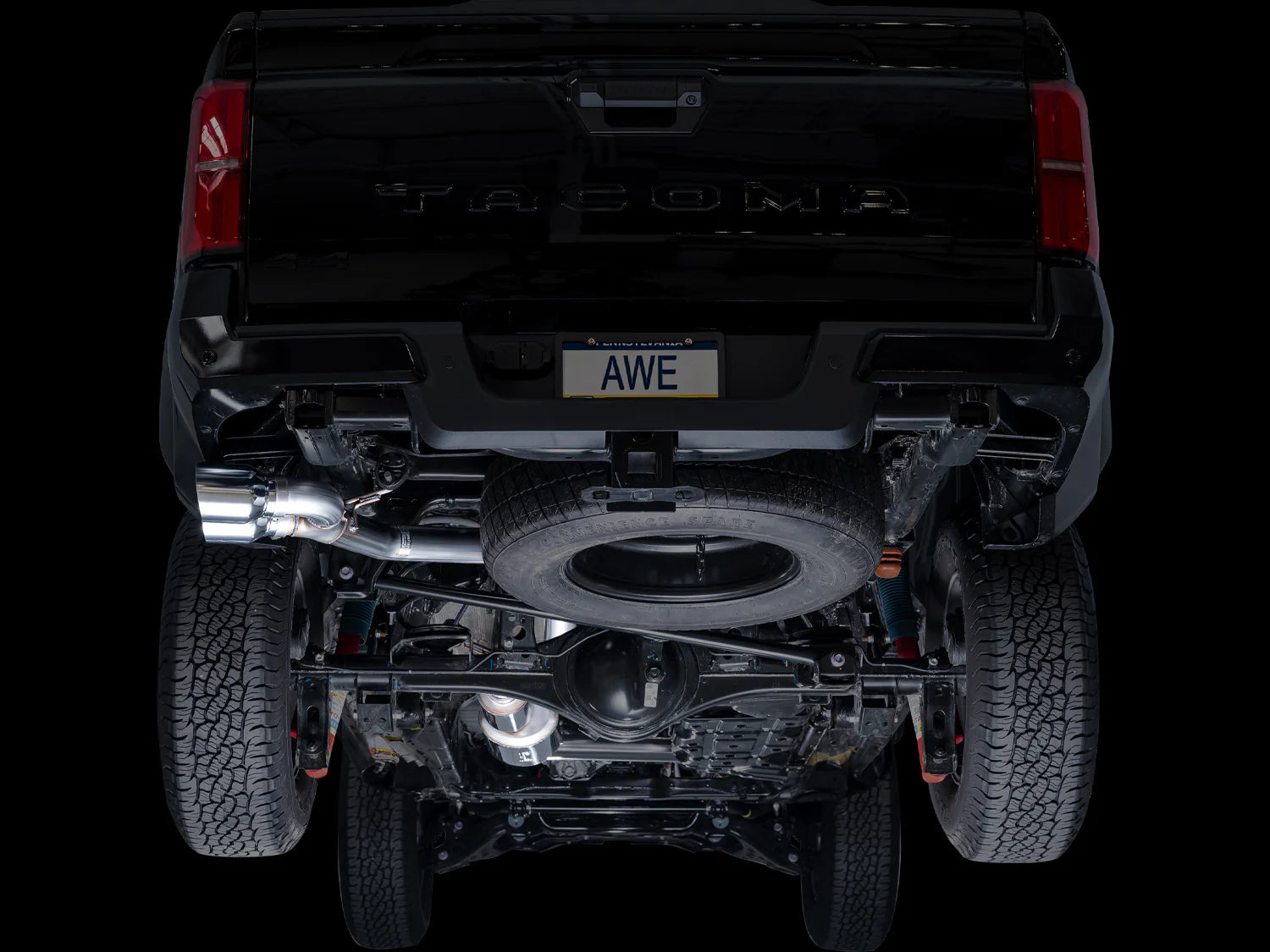

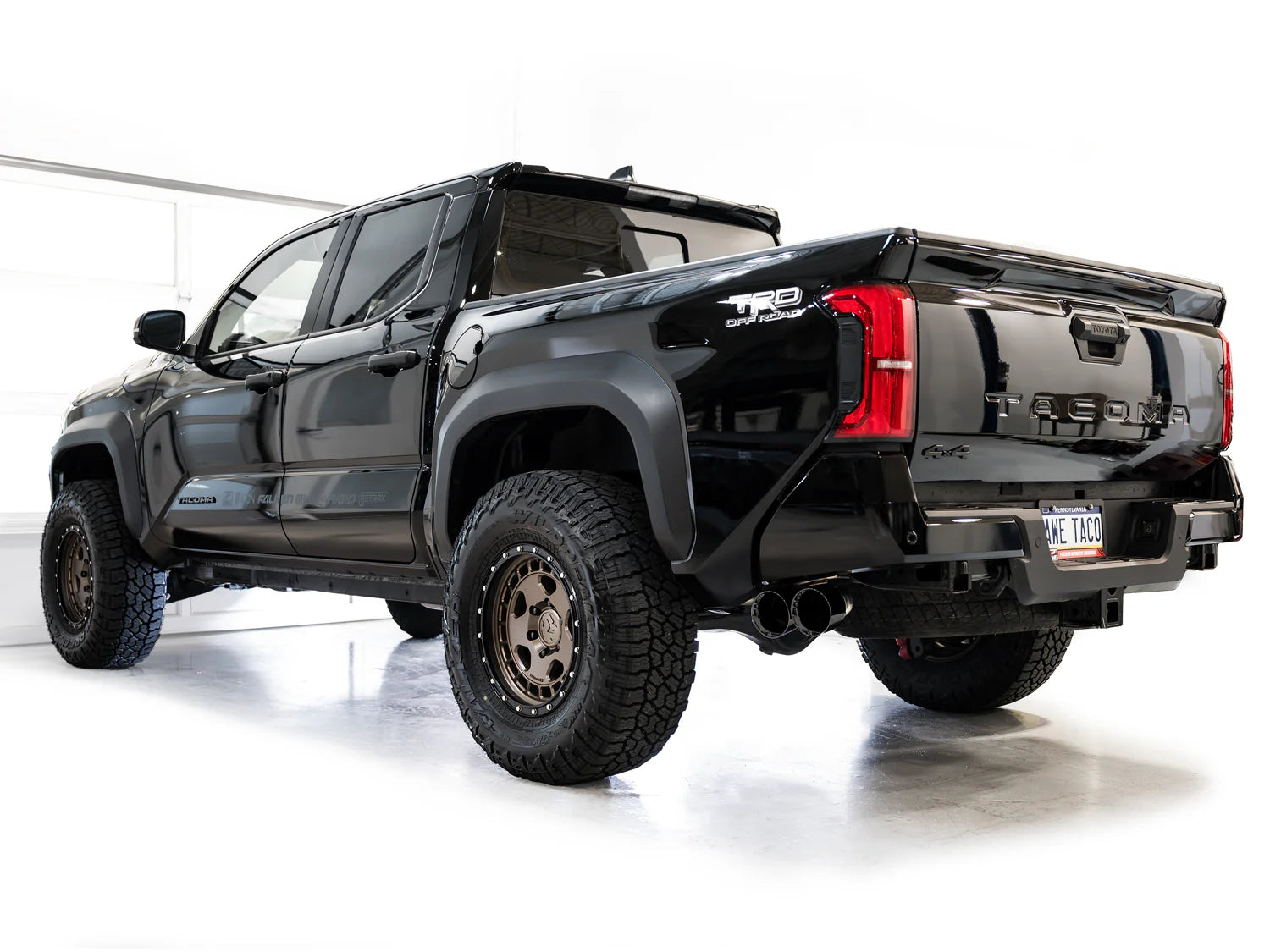

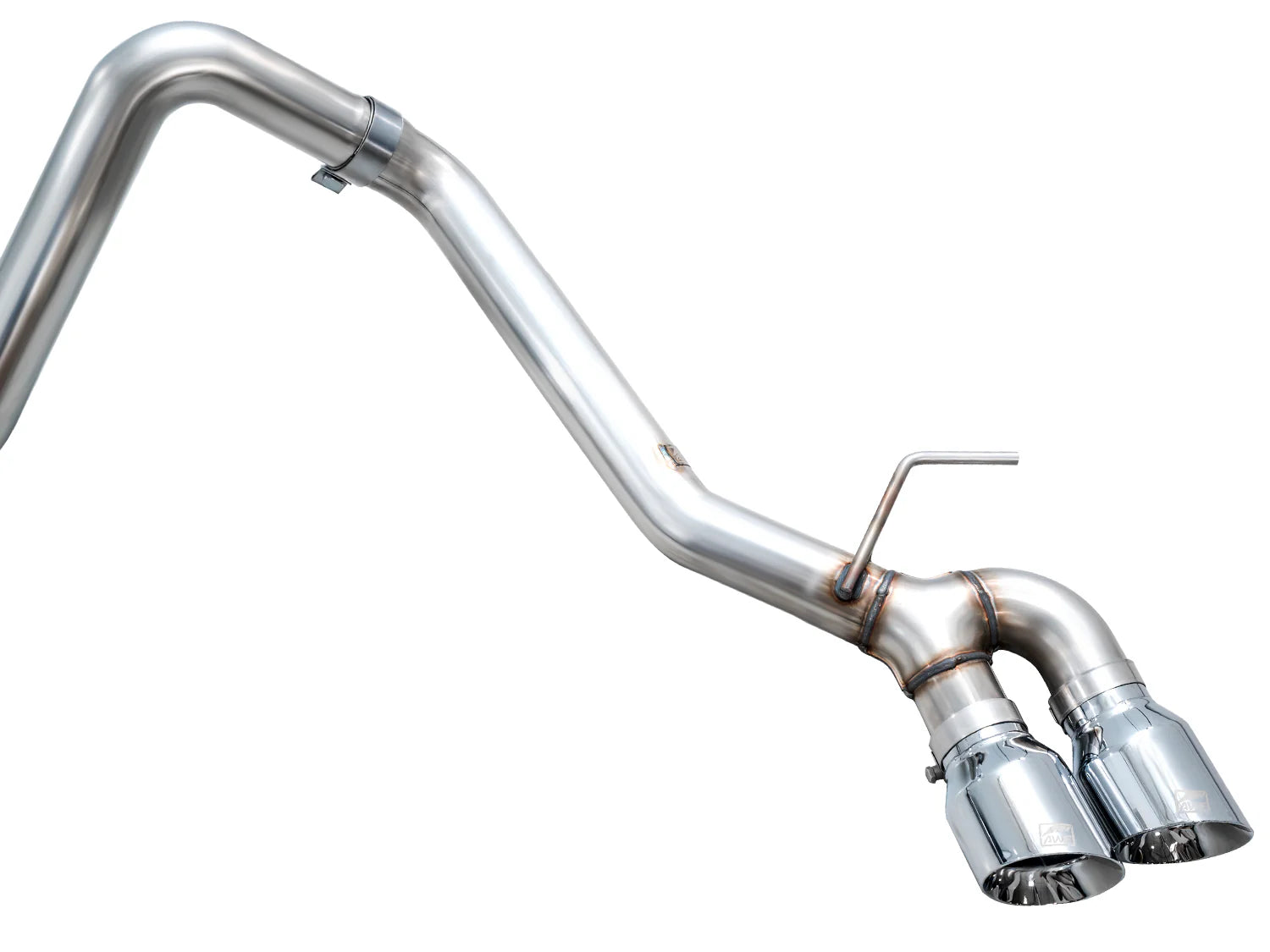

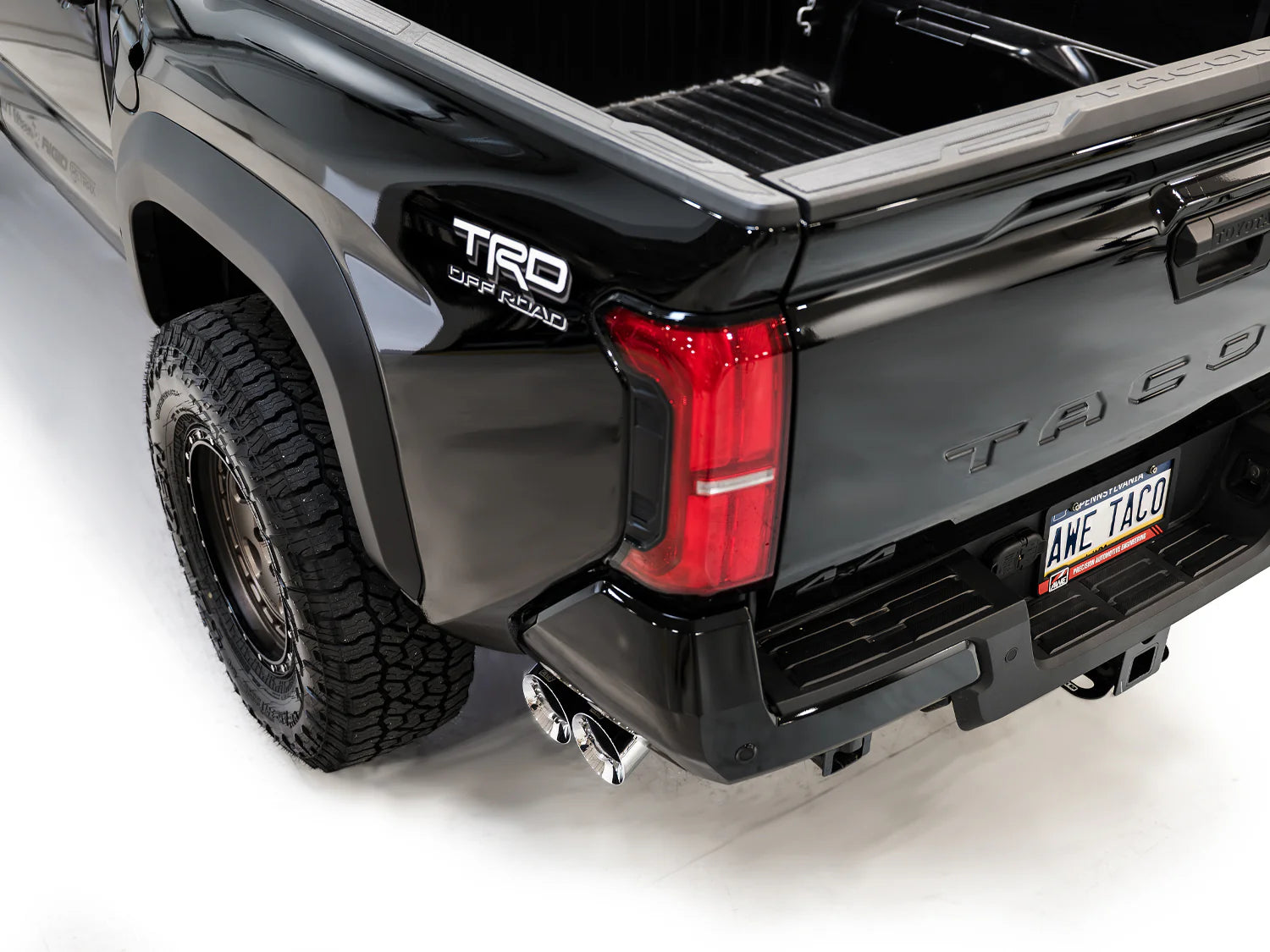

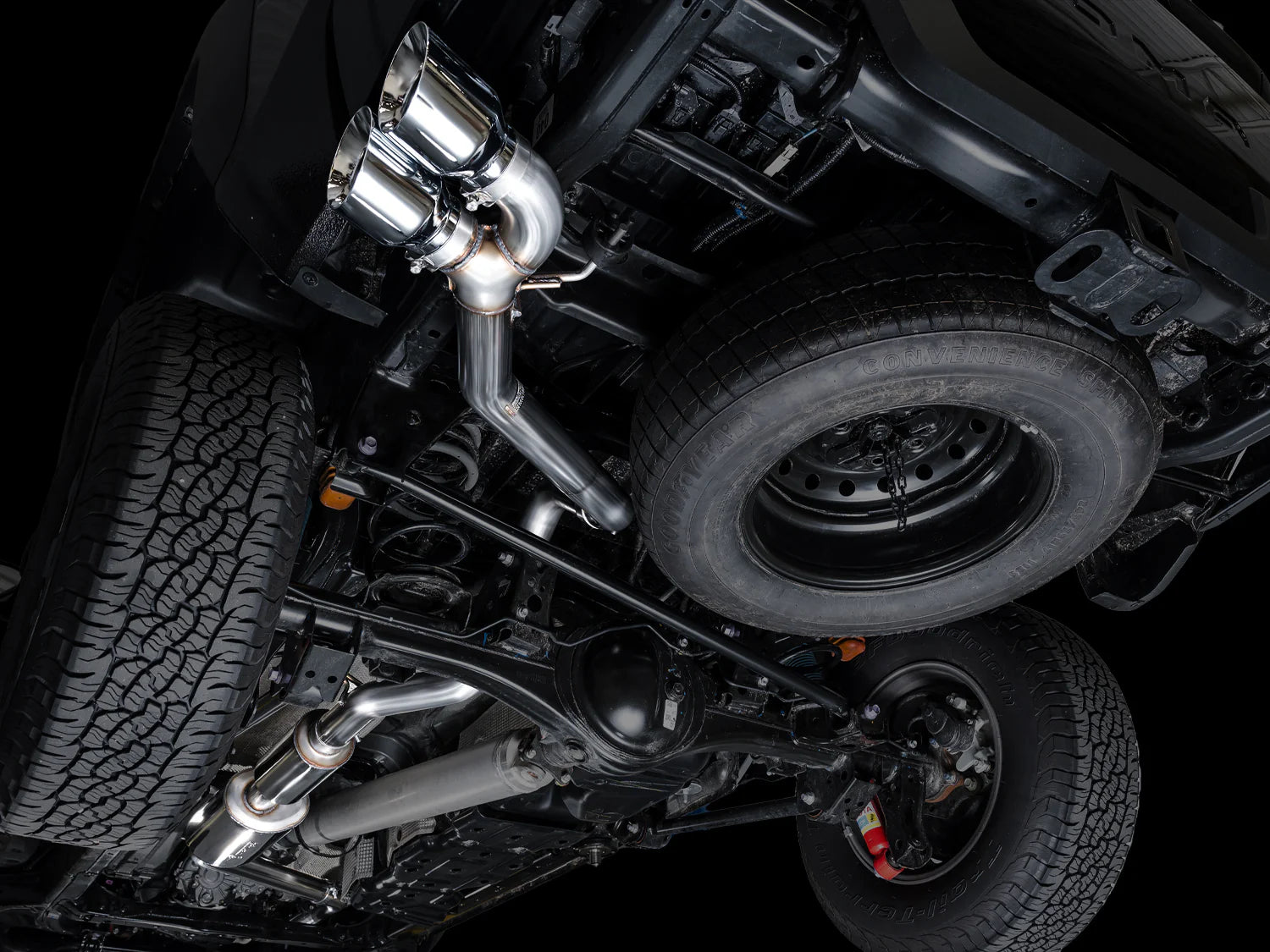

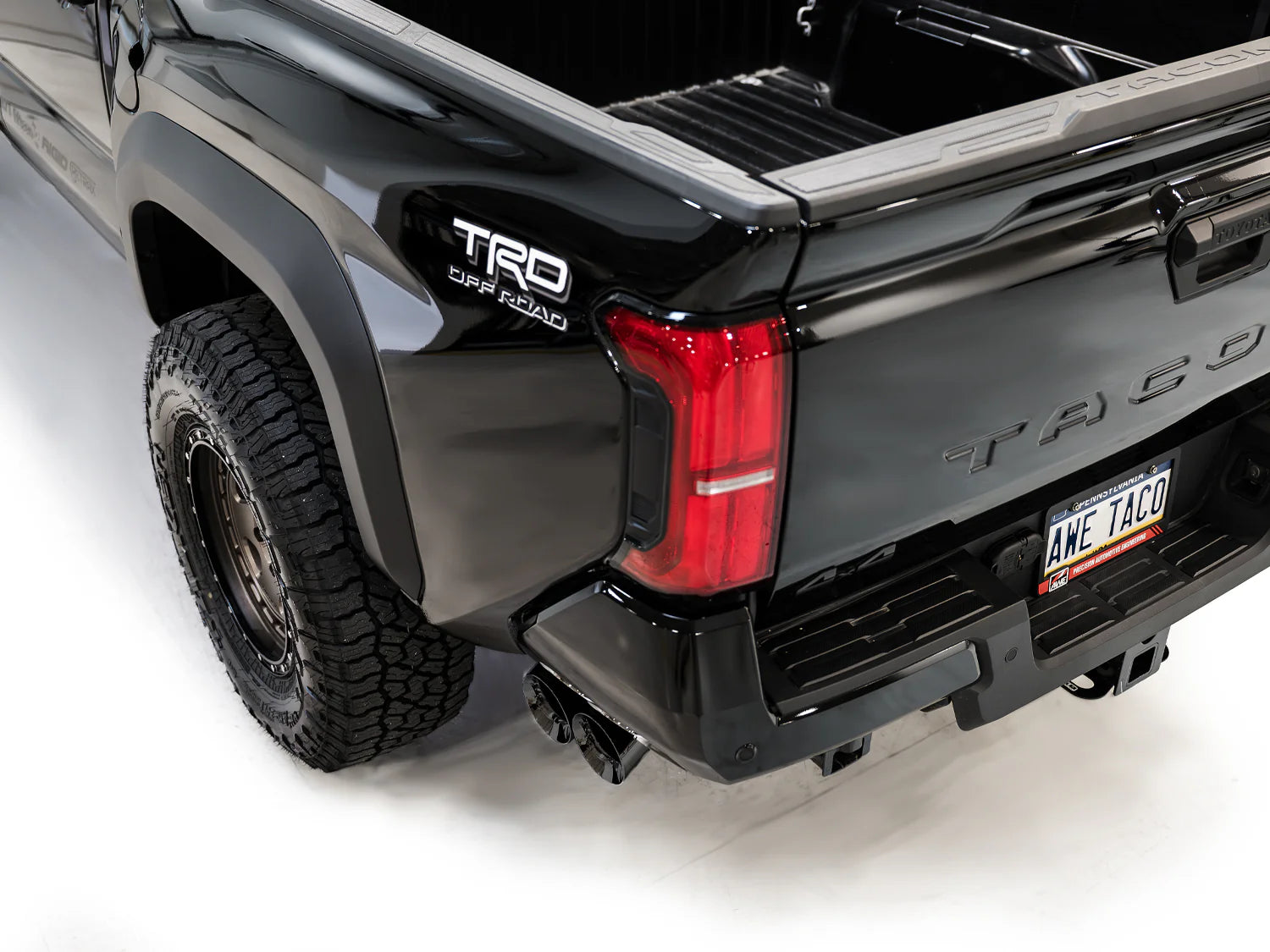

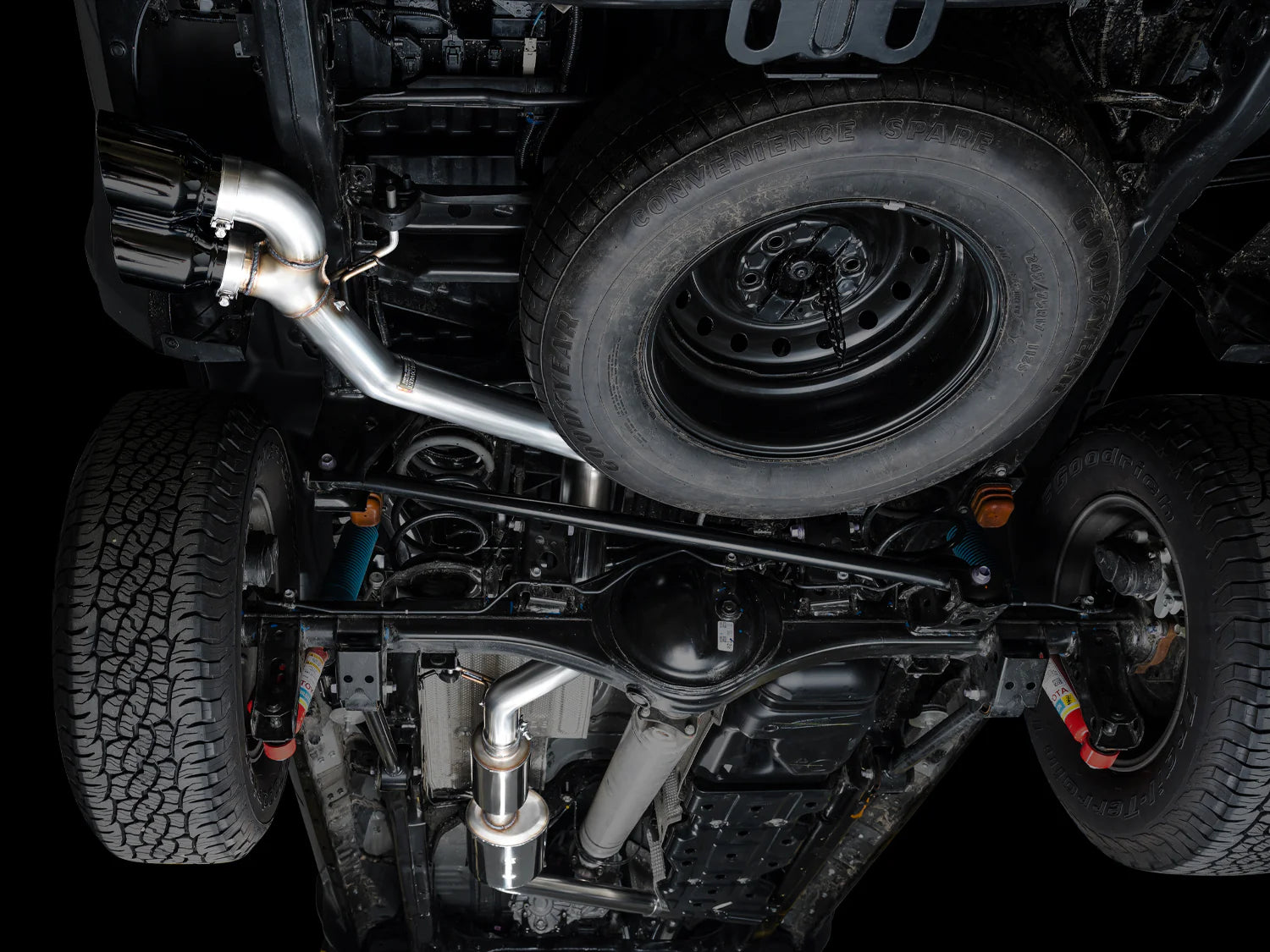

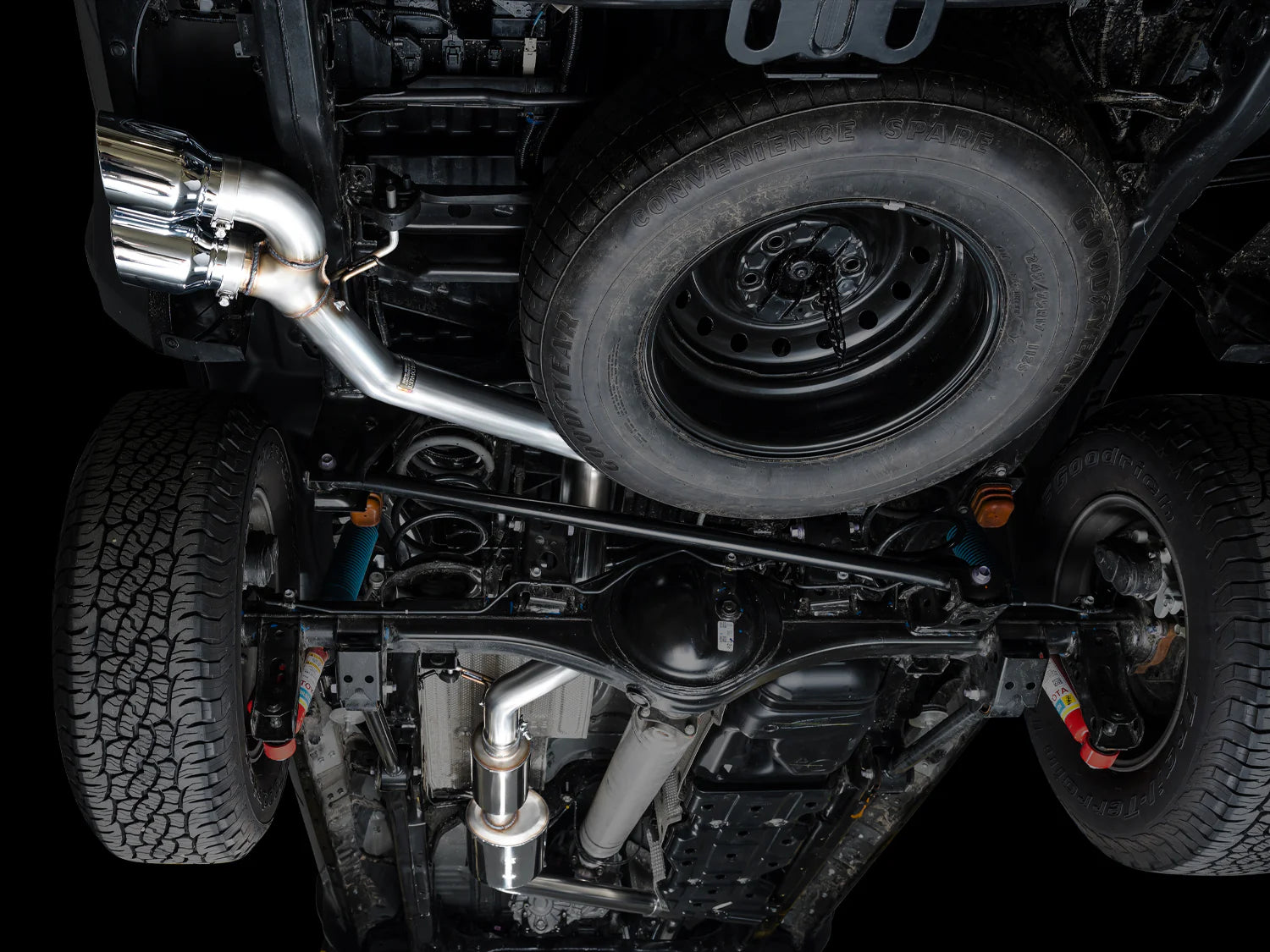

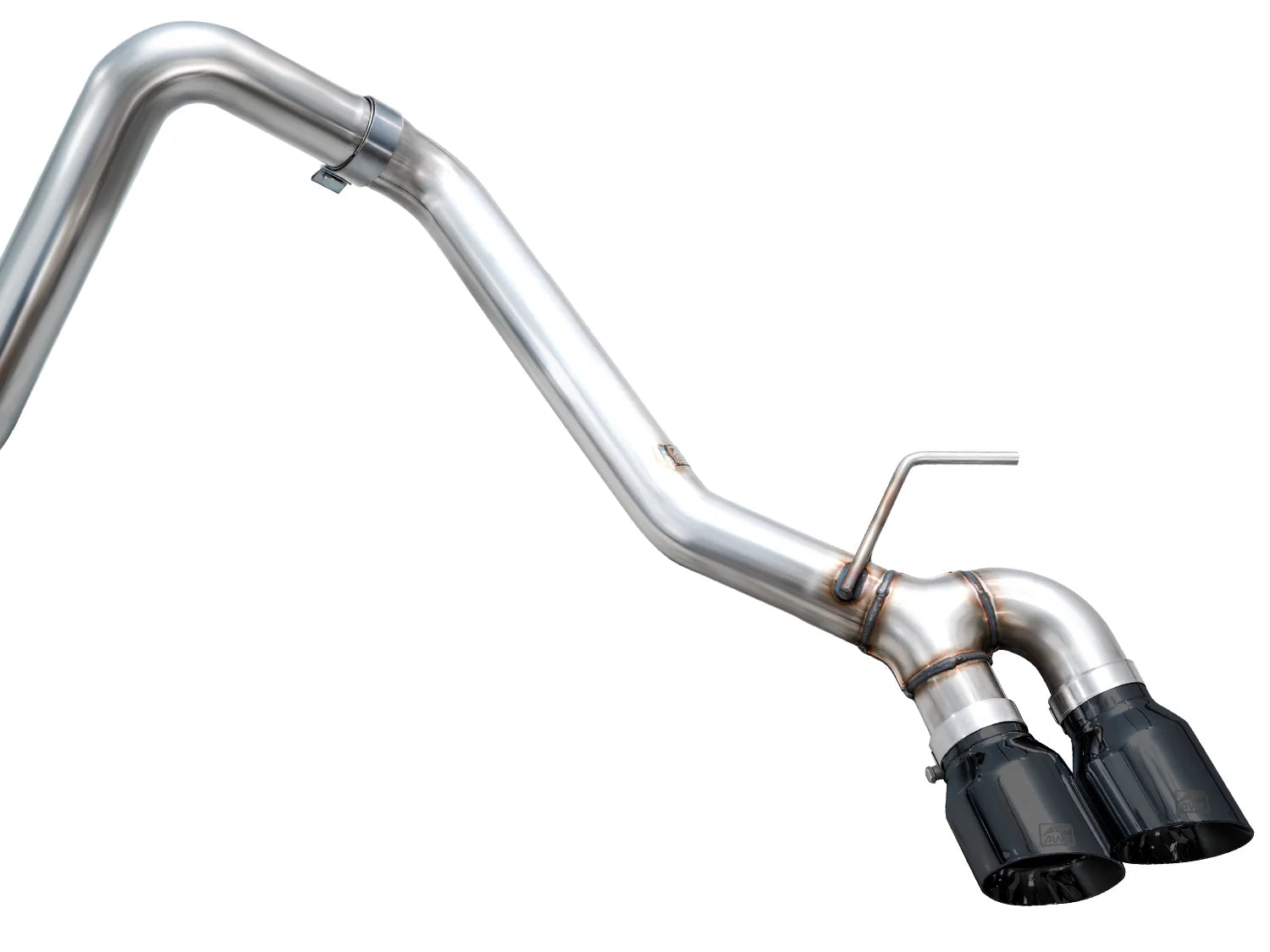

Dual Tip: Signature 4.5” slash-cut, double-walled tips are available in chrome silver or diamond black for drivers who want the look to match the exhaust note. The dual tips reside in the factory location, aligning with the left side of the rear bumper perfectly. Each tip is individually adjustable allowing depth into the bumper to be set according to personal taste.

100% emission-friendly:

The 0FG does not interfere with any factory emissions equipment.

Made in PA, USA:

Engineered, designed, and manufactured in-house at AWE.

The fine print:

AWE’s Perfect Fitment Guarantee, No CEL Guarantee, and a Lifetime Warranty all come standard.

4th Gen Toyota Tacoma AWE Exhaust Installation Instructions

What is 180 Technology®?

AWE's patented 180 Technology® works a little something like this: As exhaust gases exit the engine and flow into an AWE 180 Technology®-equipped resonator, they pass through strategically located ports, and into reflection chambers.

Sound waves, carried by these exhaust gasses, bounce off the walls of the reflection chambers. Depending on the sound requirements of each vehicle, AWE acoustic engineers adjust the size and location of the ports and the chambers. By controlling the size and location of these key elements, we also control when the sound waves exit the chambers. The specific timing of when the reflected sound waves re-join the main exhaust flow creates a one-hundred-and-eighty-degree out-of-phase sound wave that cancels out problematic frequencies.

Consistency through change.

AWE 180 Technology® is not on a “one size fits all” concept. Rather, AWE engineers design sound cancelation resonators based upon the specific acoustics generated by vehicle types, thereby ensuring perfect sound, every time. It’s one of the reasons AWE exhausts have earned a reputation for the perfect tone, regardless of application.

What it means to you.

The result? The removal of unwanted tones in all AWE 180 Technology®-equipped exhaust systems. The sound produced by this formula is the perfect, signature note. Unlocked performance and spot-on tone, every time.

A video’s worth 1,000,000 words.

180 Technology® in action, below.
