447607
Description

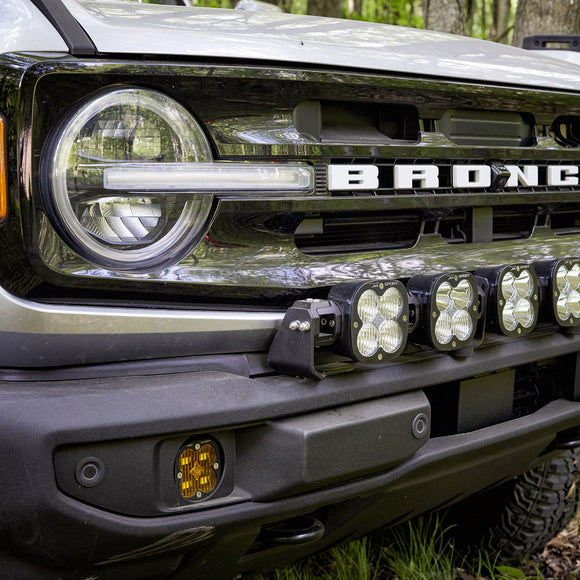

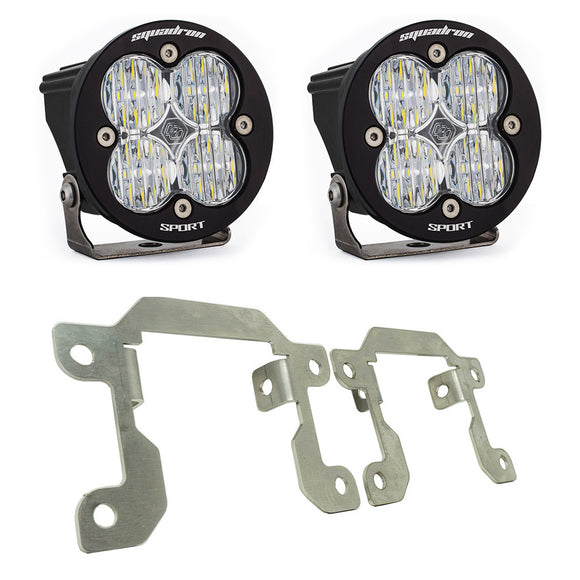

The Baja Designs Squadron Sport OEM fog light replacement kits are one of the simplest and cleanest options to upgrade the lighting performance of your Ford Ranger or Bronco (with plastic bumper). This kit comes with everything you need to make a quick and painless upgrade to your Ford Bronco or Ranger, with no cutting, trimming, or fumbling with wiring. The plug-and-play connectors fit right into your factory plugs, allowing you to maintain control with your factory hi/lo switch. While compact in size the Squadron Sport is equipped with a sleek black gloss aluminum housing that outshines the competition through both appearance and performance using next-generation LEDs pushing out 3,162 lumens. Our 30-Day Satisfaction Guarantee and Limited Lifetime Warranty are included for the ultimate in-purchase protection. USPTO Reg No. 5,766,659
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
FITS
SKU: 550005
Dimensions
| Depth (in.) | 2.770 |
| Height (in.) | 3.070 |
| Length (in.) | 3.070 |
| Weight (lbs.) | 0.750 |
Specifications
| Amperage Rating (A) | 2.200 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Wide Cornering |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 3162 |
| Description | Wide Cornering; Clear |
| Housing Color | Black |
| Housing Material | Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 4 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | Squadron Sport LED Light Pod |
| Wattage (W) | 30.360 |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
