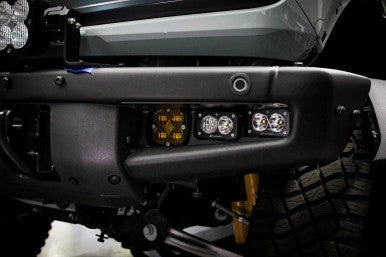

Baja Designs 2021+ Ford Bronco Amber SAE Fog Pocket Kit w/Upfitter

$1,516.33 CAD

Baja Designs SKU: baj447762UP

Earn [points_amount] when you buy this item.

447762UP

Description

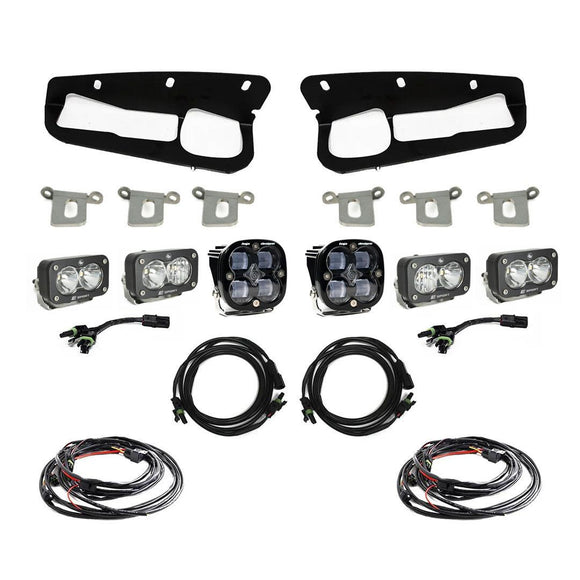

We here at Baja Designs know that you use your Bronco for what it was designed for. That’s why we offer the Squadron® SAE/Dual S2 Steel Bumper Fog Pocket Light Kit designed specifically for the factory Steel Bumper. Light up the trail, lead the pack, and differentiate yourself from the pack with a set of S2 Sport in spot, a set of S2 Sport in driving combo, and a set of our next generation Squadron® SAE. With all-new aspheric projector optics and with our advanced LED technology provides a performance increase in luminous flux of 56% over our previous generation SAE model. The all-new Squadron® SAE delivers 2,420 lumens per light with output reaching up to 15,800 candela at just 29 watts and meets the current SAE J583 fog lamp requirements, making it fully compliant with on-road regulations This is a comprehensive kit and does not require any additional parts for installation. 447761, 447762 Kit Includes: (2) S2 Sport Spot (2) S2 Sport Driving Combo (2) Squadron® SAE, Spot in Clear or Amber (2) Left and Right side fog light facia mounts (2) Wire Harnesses (640117) (2) 55″ Splitter (613606) (2) Splitter (613607) All Necessary hardware and parts bags. 447761UP, 447762UP Kit Includes: (2) S2 Sport Spot (2) S2 Sport Driving Combo (2) Squadron® SAE, Spot in Clear or Amber (2) Left and Right side fog light facia mounts (2) Upfitter Wire Harnesses (640093) (2) 55″ Splitter (613606) (2) Splitter (613607) All Necessary hardware and parts bags.

Satisfaction Guarantee – 30-Day Money Back Guarantee

Limited Lifetime Warranty – Complete Purchase Protection

ClearView – All The Light, Right Where You Need It

MoistureBlock – Waterproof, Rain Proof, Submersible

CopperDrive – Only LED Driven At 100 Percent

5000K Daylight – Less Driver Fatigue, Natural Color

NOTE: uService® is NOT a feature of SAE products. If tampered, it will void the warranty. Our Limited Lifetime Warranty is valid only if sent back for repairs.

FITS

Ford Bronco 2021-2023
Ford Bronco Raptor 2022-2023
Detailed Specs
INCLUDED WITH KIT:

SKU: 540003

Dimensions

Depth (in.) 1.680
Height (in.) 1.760
Length (in.) 2.930
Weight (lbs.) 0.500

Specifications

Amperage Rating (A) 0.900
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 1581
Description Driving/Combo; Clear
Housing Color Black
Housing Material Powder Coated Cast Aluminum
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes Beam
Lighting Quantity 2
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type S2 Sport LED Light Pod
Wattage (W) 12.420
Wiring Harness Included No

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)

SKU: 540005

Dimensions

Depth (in.) 1.680
Height (in.) 1.760
Length (in.) 2.930
Weight (lbs.) 0.500

Specifications

Amperage Rating (A) 0.900
Average Rated Life (hr.) 49,930
Beam Pattern Wide Cornering
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 1581
Description Wide Cornering; Clear
Housing Color Black
Housing Material Powder Coated Cast Aluminum
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes Beam
Lighting Quantity 2
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type S2 Sport LED Light Pod
Wattage (W) 12.420
Wiring Harness Included No

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
