448049
Description

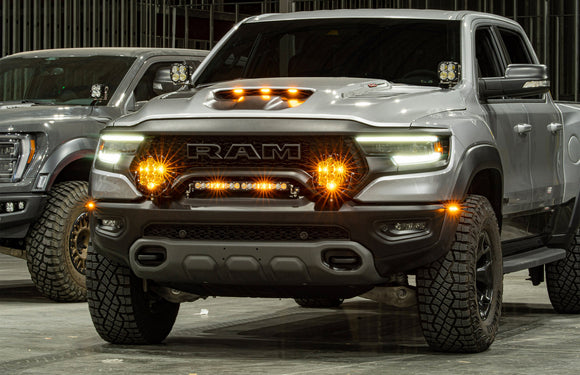

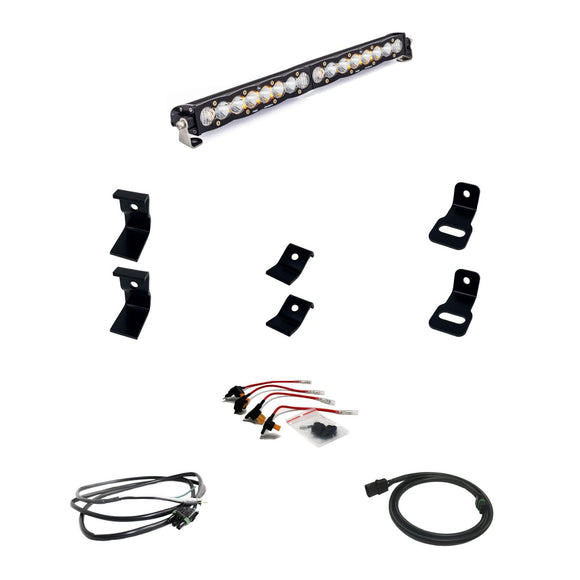

Our Ram 1500 TRX S8 Grille kit was designed specifically to keep a low profile while allowing for maximum performance. The kit includes mounts that fit into factory locations without cutting or trimming and includes both the wiring and a 20 inch S8 Driving/Combo for an easy install. With the S8 you will be able to utilize it's back lit feature giving a differentiating look from other trucks.
FITS
Ram 1500 Rebel 2019-2022
Ram 1500 TRX 2021-2022
Detailed Specs
INCLUDED WITH KIT:
SKU: 702003
Dimensions
| Depth (in.) | 3 |
| Height (in.) | 1.6 |
| Length (in.) | 20 |
| Weight (lbs.) | 4.5 |
Specifications
| Amperage Rating (A) | 8.0 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 12,700 |
| Description | Driving/Combo; Clear |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam/Amber Backlit Feature |
| Lighting Quantity | 16 |
| Lighting Technology | Cree LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | S8 20 Inch LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 120 |
| Wiring Harness Included | No |
Standards & Compliance
| Patent No. | D780,964 |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
