Description

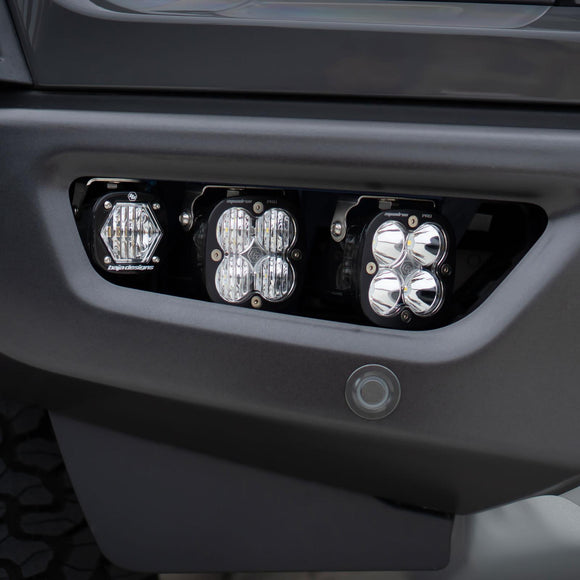

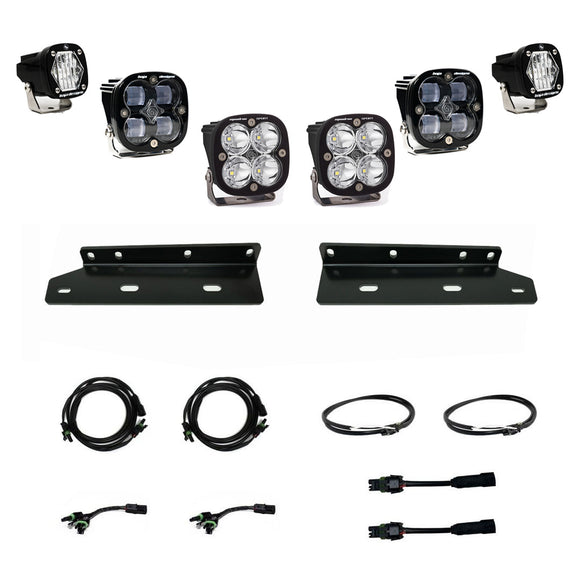

Separate your truck from the pack with the Baja Designs Ford Raptor “SAE” Fog Light Kit for the Ford F-150 Raptor (’21-22). This kit utilizes two Squadron® Sports (3,150 lumens each), two Squadron® SAE (2,420 lumens each), and two S1s (2,375 lumens each). This mounting kit includes two Ford-specific mounting brackets and a wiring harness, allowing you to use your factory switch. Engineered with all-new aspheric projector optics and with our advanced LED technology provides a performance increase in luminous flux of 56% over our previous generation SAE model, the all-new Squadron® SAE delivers 2,420 lumens per light with output reaching up to 15,800 candela at just 29 watts. Designed to meet the current SAE J583 fog lamp requirements, the Squadron® SAE is fully compliant with on-road regulations. This innovative approach allows for a highly controlled light pattern with a sharp cutoff, making them an ideal choice for driving through dust, fog, and inclement weather. Backed by our limited lifetime warranty and 30-day satisfaction guarantee, giving you the ultimate in-purchase protection. This kit comes with everything you need to install. USPTO Reg No. 5,766,659
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
NOTE: uService® is NOT a feature of SAE products. If tampered, it will void the warranty. Our Limited Lifetime Warranty is valid only if sent back for repairs.
FITS
SKU: 380005
Dimensions
| Depth (in.) | 2.100 |
| Height (in.) | 2.100 |
| Length (in.) | 2.100 |
| Weight (lbs.) | 0.400 |
Specifications
| Amperage Rating (A) | 1.420 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Wide Cornering |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 2320 |
| Description | Wide Cornering; Clear |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 1 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | S1 LED Light Pod |
| Voltage | 9-28 |
| Wattage (W) | 19.596 |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 550001
Dimensions
| Depth (in.) | 2.770 |
| Height (in.) | 3.070 |
| Length (in.) | 3.070 |
| Weight (lbs.) | 0.750 |
Specifications
| Amperage Rating (A) | 2.200 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Spot |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 3162 |
| Description | Spot; Clear |
| Housing Color | Black |
| Housing Material | Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 4 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | Squadron Sport LED Light Pod |
| Wattage (W) | 30.360 |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
