677098
Description

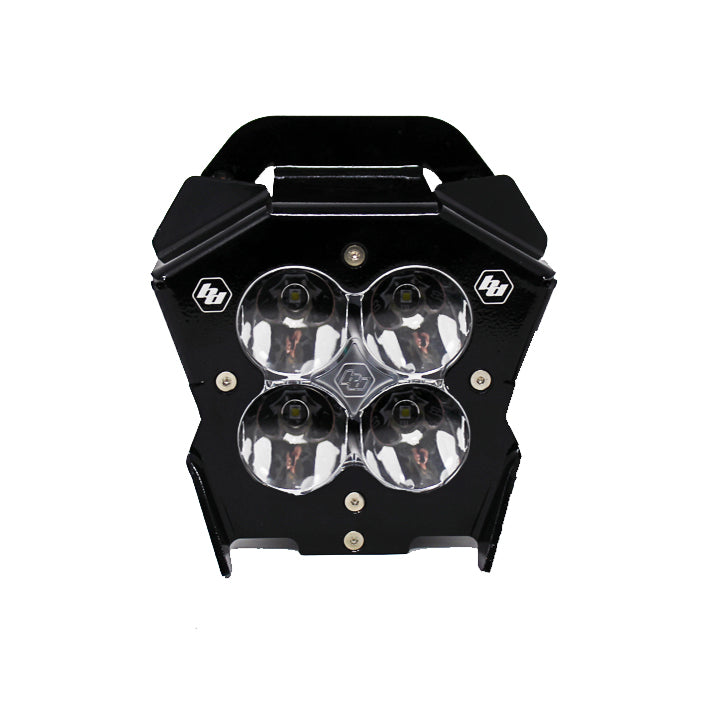

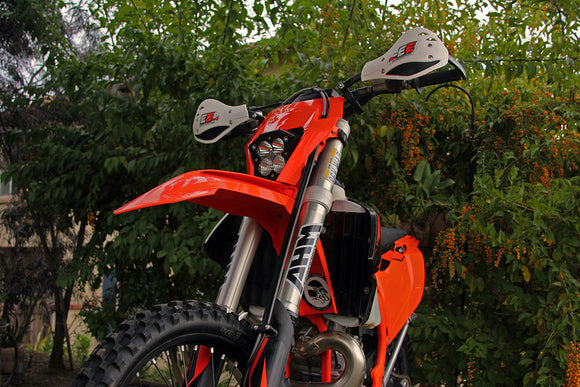

If you're looking to go night riding look no further, our Baja Designs drop in replacement headlight kit for KTM '17-23 XCF-W/XC(TPI)/XC-W(TPI)/EXC-F models (see fitment chart) is a major upgrade from stock and features a rugged design. This headlight kit was designed with ample adjustability, and features a significant amount of vertical and horizontal spread for ultimate trail coverage. This specific model utilizes our XL80 which produces 9,022 lumens and features a 20 percent dimming feature. Installation on this kit is as easy as installing a factory headlight, we provide a plug and play connector and all necessary hardware. Baja Designs offers an industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.
NOTE: 129016 Hi/Lo harness - This is an additional add-on part that was designed to retain the factory dual sport bike's hi/low pin out for their bar switch. The Hi-Beam Indicator will always be on when used with our Hi/Low KTM relay harness.
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
Unsure if your bike is powerful enough to run this kit? Check our chart HERE.
SKU: 670003
Dimensions
| Depth (in.) | 3.650 |
| Height (in.) | 4.430 |
| Length (in.) | 4.430 |
| Weight (lbs.) | 2.450 |
Specifications
| Amperage Rating (A) | 5.500 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 9022 |
| Description | Driving/Combo; Clear |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Dimming Feature (20%) |
| Lighting Quantity | 4 |
| Lighting Technology | Cree LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | XL80 LED Light Pod |
| Universal or Specific | Universal |
| Wattage (W) | 75.900 |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
