Banks Power 01-18 GM / RAM Natural Differential Cover Kit 11.5/11.8-14 Bolt

19259

Banks Ram-Air^® differential cover extends lubrication life and retains fuel economy. Thanks to its superior fluid and aerodynamics, the Ram-Air^® Cover out-performs stock and flat-back high-capacity covers and does so with less lubricant. Increased distance between service intervals and less lubricant means you'll save money while extending gear life.


2003-05 Dodge RAM 5.9L Non-HO
Will not fit 14-bolt 10.5" ring gear housing

RAM 6.4L Gas Trucks
Customers must visually confirm which differential cover is installed from factory.
See Fitment Check Graphic Below.

Key Highlights

• New patented design features Ram-Air scoops for fastest cooling
  • Provides cold high velocity air, overcoming “dead air zone” behind differential
  • Scoops force air up and into massive heat radiation fins
  • Engineered to break-away if snagged on an obstacle
• Banks cools 5X better than flat-back covers in on-road towing tests over the same road, same weather, operator and vehicle
• Cools 118% better than flat-backs in 200hp 60mph sustained tests
• Dry-mount high-pressure silicone O-ring seal. No messy RTV clean!

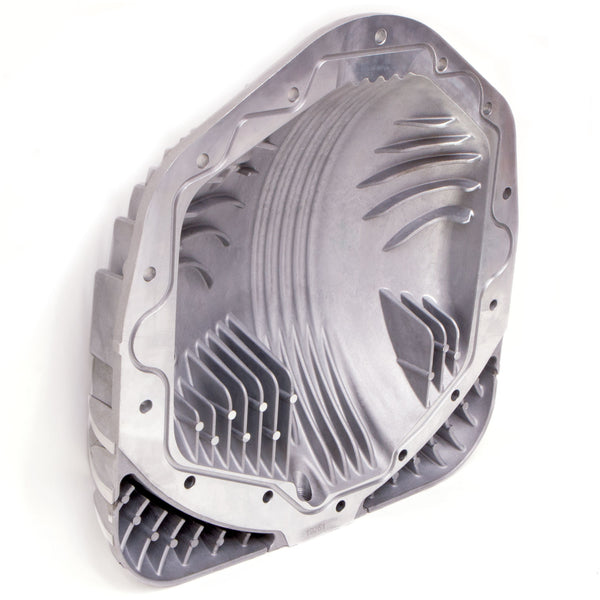

• Internal fins transfer heat through the cover into the external fins
• Clears spare tire heat shield, Panhard bars and other components
• Does not sacrifice any ground clearance
• Limited Lifetime Warranty

Fluid Dynamics

• Axle tube lubricant guides directs lube to bearings w/o overfilling
• Cover mates flush with differential housing for smooth fluid flow
• Ring gear raceway controls fluid flow to the pinion and bearings
• Low fluid aeration means longer fluid life

Technical Specs

• Weight: 11.7 lbs
• External heat radiation fin count: 24
• Internal heat absorption fin count: 26
• Dimensions: 14.2 in X 13.3 in X 3.8 in
• External heat radiation fin surface area: 533.782 in2
• Internal heat absorption fin surface area: 119.882 in2
• External heat radiation total surface area: 808.81 in2
• Internal heat absorption total surface area: 215.78 in2
• Fasteners: 14 x stainless steel M8-1.25 flange hex bolts
• Material: A380 aluminum diecast with CNC machined surfaces
• Internal Volume: About 4.0 Qts (Check OEM Owners Manual)

Oil service

• Magnetic drain plug
• Magnetic fill port plug
• 20° angled fill port for easy access
• No need to remove cover to change fluid
• 1/2 in sight glass with contrast screen (visual aid) and Viton seal
• Banks recommends Amsoil 75W-90 Severe Gear Synthetic Gear Lube
• Fill level depends on model year: (About 4.0Qts Fill To OEM Level)
