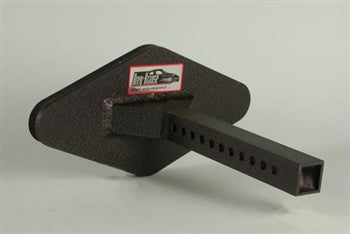

BK SEAT BRACE FOR FACTORY FOLDING SEATS

R-9019

Engineered to extend the protection of Brey-Krause harness mount bars to the back of your seat, the seat support assembly is constructed from 6061-T6 aluminum with a ½” thick layer of high density foam. The foam firmly cushions the back of the seat against the support assembly. This seat brace is designed for conventional factory reclining seats. The R-9020 seat brace is recommended for cars with one-piece racing seats.

Material: 6061-T6 aluminum with ½” thick layer of high density foam.
Finish: Powder-coated wrinkle black
Weight: 2 lbs.
Models: R-9019 seat brace will work with the bolt-on and weld-on roll cage mounting brackets: R-9021, R-9022, and R-9023.
Miscellaneous: Foam firmly cushions the back of the seat against the support assembly. Support can be drilled and through bolted to aftermarket seats if desired. Brackets are sold separately.

Related Parts:
R-9020 Seat Brace - Fixed Back Composite Seats
R-9021 Seat Brace Mounting Kit - for Roll Bar/Roll Cage
R-9022 Seat Brace Mounting Kit - for Roll Bar/Roll Cage
R-9023 Seat Brace Mounting Kit - for Roll Bar/Roll Cage
R-9024 Seat Brace Mounting Kit for R-1030, R-1029 Harness Mount Bars
