BTR V2 ROCKER ARM TRUNNION UPGRADE KIT - NO BOLTS - GM LS - TK002NB

BTRTK002NB

BTR V2 LS ROCKER ARM TRUNNION KIT - TK002

NOTE : THE TRUNNION WILL HIT THE PASSENGER SIDE VALVE COVER BAFFLE ON EARLY STYLE LS1/LS6 COVERS!

FOR LS1/LS3/99-13 LS TRUCK STYLE ROCKERS

The V2 trunnion kit builds on the success and knowledge we gained with our V1 kit. The V2 features a trunnion with pre-installed inner race bearings. The V1 kits have stood up to an enormous amount of abuse, but we decided to upgrade them to a pressed inner race comprised of 52100 heat treated bearing steel, over the more commonly used 8620 carburized steel found in our V1 kits and many OEM applications. Additionally, these feature a self oiling axle with priority feeding to the trunnion itself.

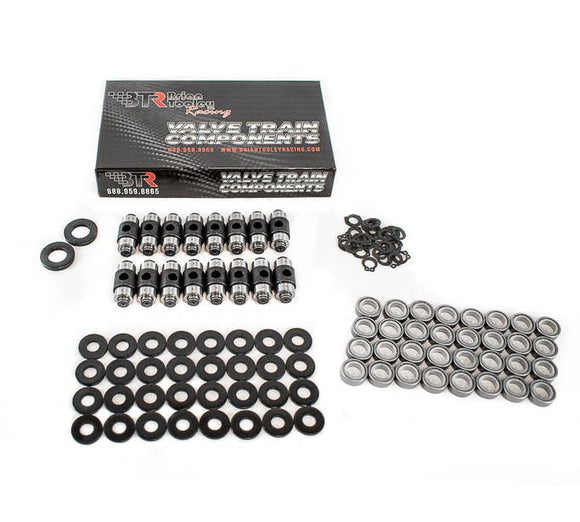

Components in kit:

- 16 of part number TK/TRUNIONV3 rocker trunnions

- 32 of part number TK/INNER RACE trunnion races

- 32 of part number TK/GRIP RING clips

- 33 of part number TK/BEARING trunnion bearings

- 32 of part number TK_RET retainers

- 2 of part number TK/WASHER assembly washers
