BMS Billet Strut Cross Braces for 2022+ G42 BMW M240i

Sold in pairs. Available in Black, Silver, Blue, and Red anodized.

FEATURES & BENEFITS

• The perfect addition to your G42 M240i engine bay
• 1 piece design machined from a solid block of billet aluminum
• Improved chassis rigidity
• Decreased flex during cornering
• Direct bolt-on replacement, no drilling required
• Easy installation

• Made in the USA



Vehicle Fitment

• 2022+ G42 BMW M240i (mounting hardware included)

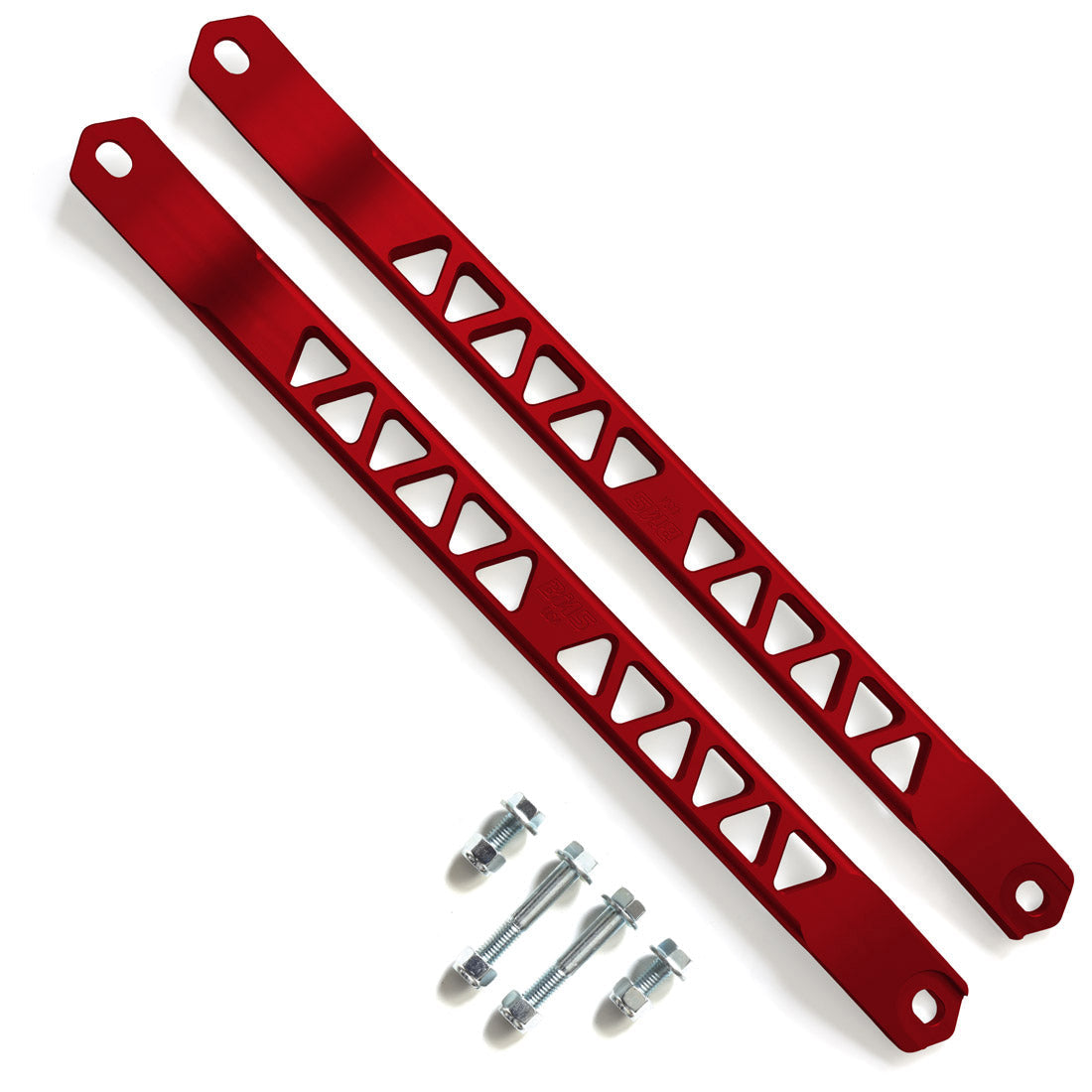

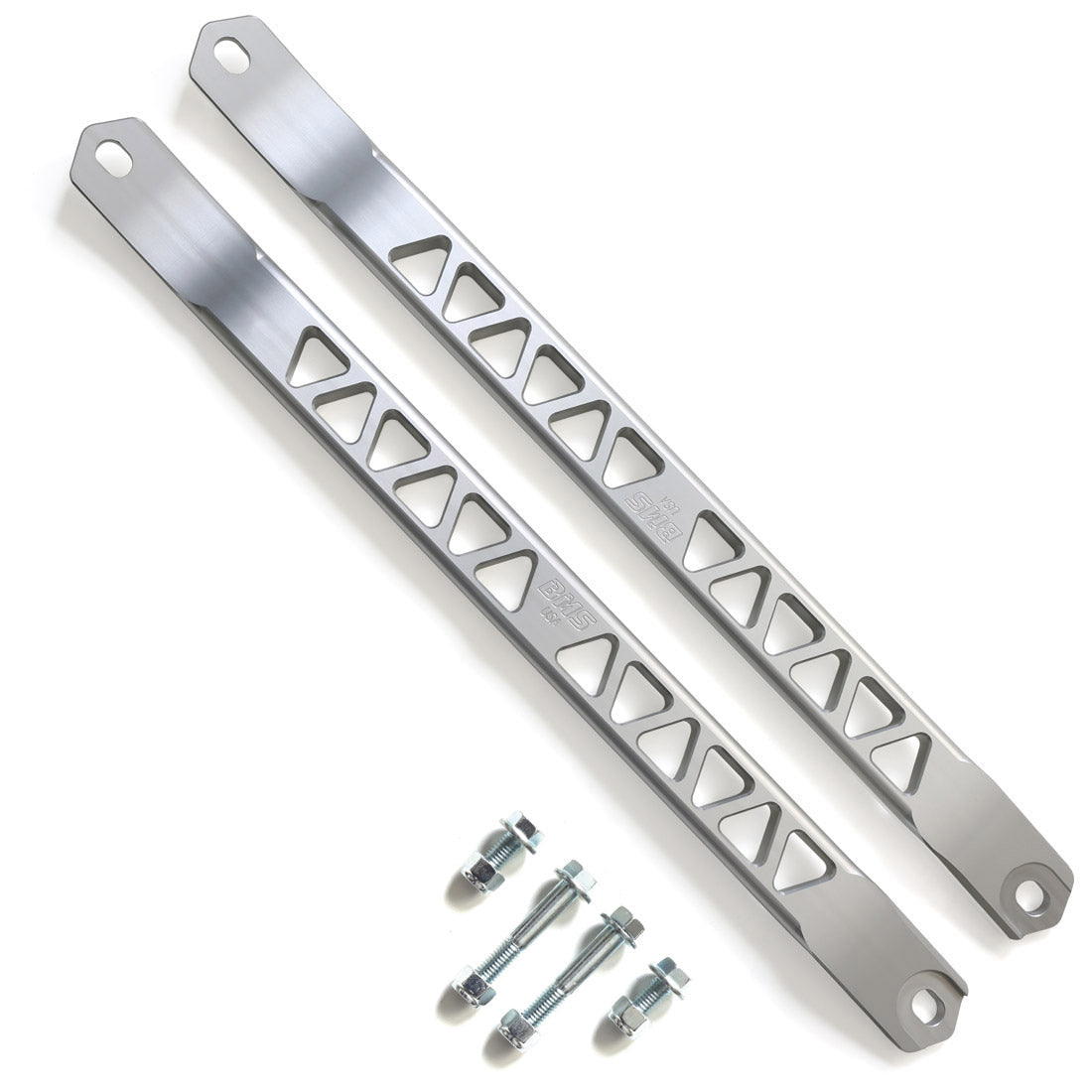

2022+ G42 BMW M240i Strut Brace Kit Includes
(2) CNC machined billet aluminum strut braces
(2) Short flange bolts (front) (M10 x 1.5 mm Thread, 40 mm Long)
(2) Long flange bolts (rear) (M8 x 1.25mm thread x 50mm long)
(2) lock nuts (M8 x 1.25mm Thread)


🔧 Installation instructions: When the BMS strut braces are placed on the car the BMS logos should be facing outwards. Place the longest supplied bolt trough the upper brace bolt hole and through the strut tower all the way through to the front wheel well. Next place the shorter supplied bolt through the front brace hole, then attach the lock nut below and tighten. Next attache the supplied lock nut to the bolt inside the wheel well and tighten. Repeat on the other side.
