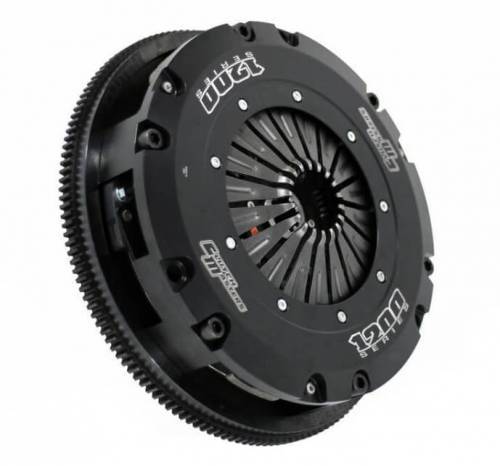

Clutch Masters 94-04 Dodge Ram 2500/3500 5.9L 5spd FX1200 Race Twin Disc Clutch w/ Steel Flywheel

Clutch Masters 94-04 Dodge Ram 2500/3500 5.9L 5spd FX1200 Race Twin Disc Clutch w/ Steel Flywheel

$3,060.00 CAD

Clutch Masters SKU: clm05CM1-TD12R-S

Earn [points_amount] when you buy this item.

Description Availability

05CM1-TD12R-S

Description

1200 SERIES – (12.00” Twin Disc)
The 1200 series is a larger diameter assembly, which is designed for high torque output applications. The 1200 Series has a higher holding capacity, and designed for excessive towing on truck applications. The 1200 series Twin disc will accept one sprung disc creating a slightly smoother engagement compared to two rigid discs


“Race” (TD12R) – 1 sprung 6-puck ceramic disc, and 1 6-puck ceramic rigid disc.
Tq Rating: 2,000 ft/lbs.

Clutch Masters 1200 Series Twin Disc features:
  • Components can be purchased separately for economical repair, or the unit can be sent back to have repaired.
  • Positive release and minimal increase in peddle effort.

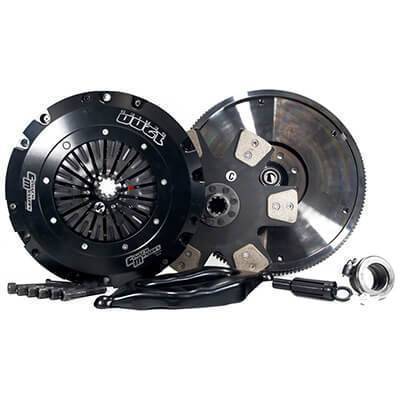

All systems include:
  • Aluminum Cover Assembly with attached Diaphragm
  • Pressure Plate Ring
  • Two Discs (ceramic)
  • One Mid Plate
  • Billet Steel Flywheel (Aluminum available on select applications, call for price)
  • Release Bearing
  • Clutch Fork, pivot ball, and clip
  • Pilot Bearing
  • Pressure Plate Bolts
Average weight of the entire assembly is 10% lighter than OEM to prevent excessive chatter and gear rattle.

This website does not show live stock.

If the product is in stock we ship same/next day.

If a product needs to be ordered in the typical wait time is 1-2 weeks.

Shipping times vary depending if the part is in stock at our warehouse and which shipping option is chosen at checkout.

Please contact us for an accurate ETA and availability.
