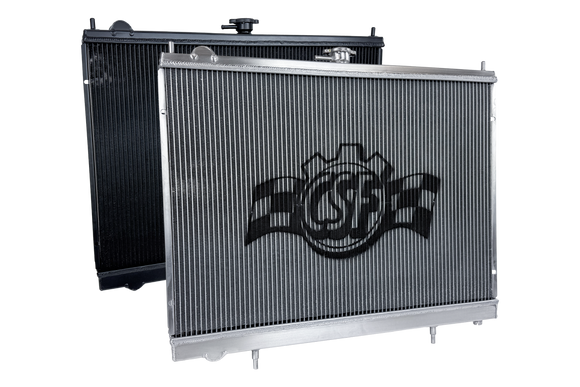

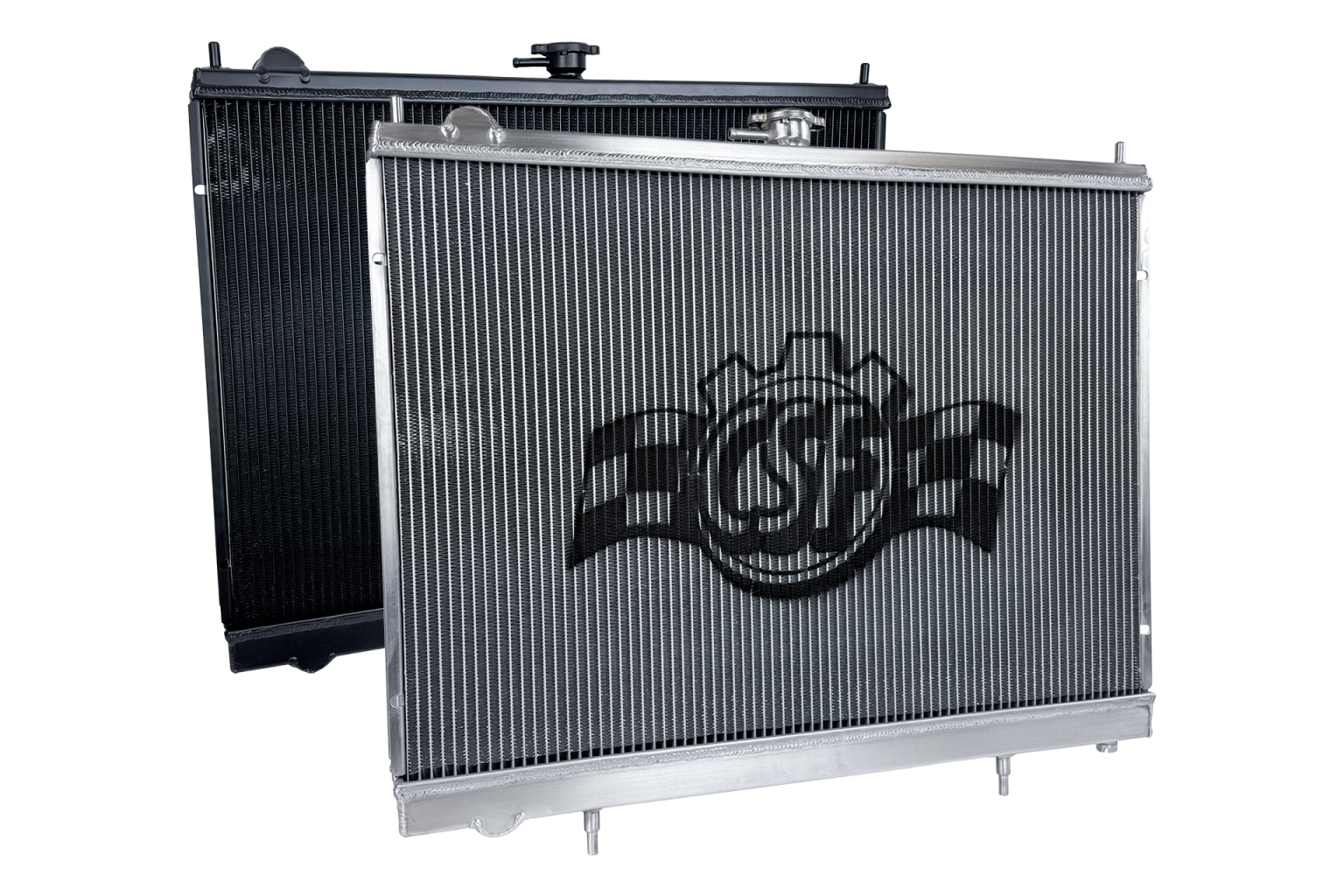

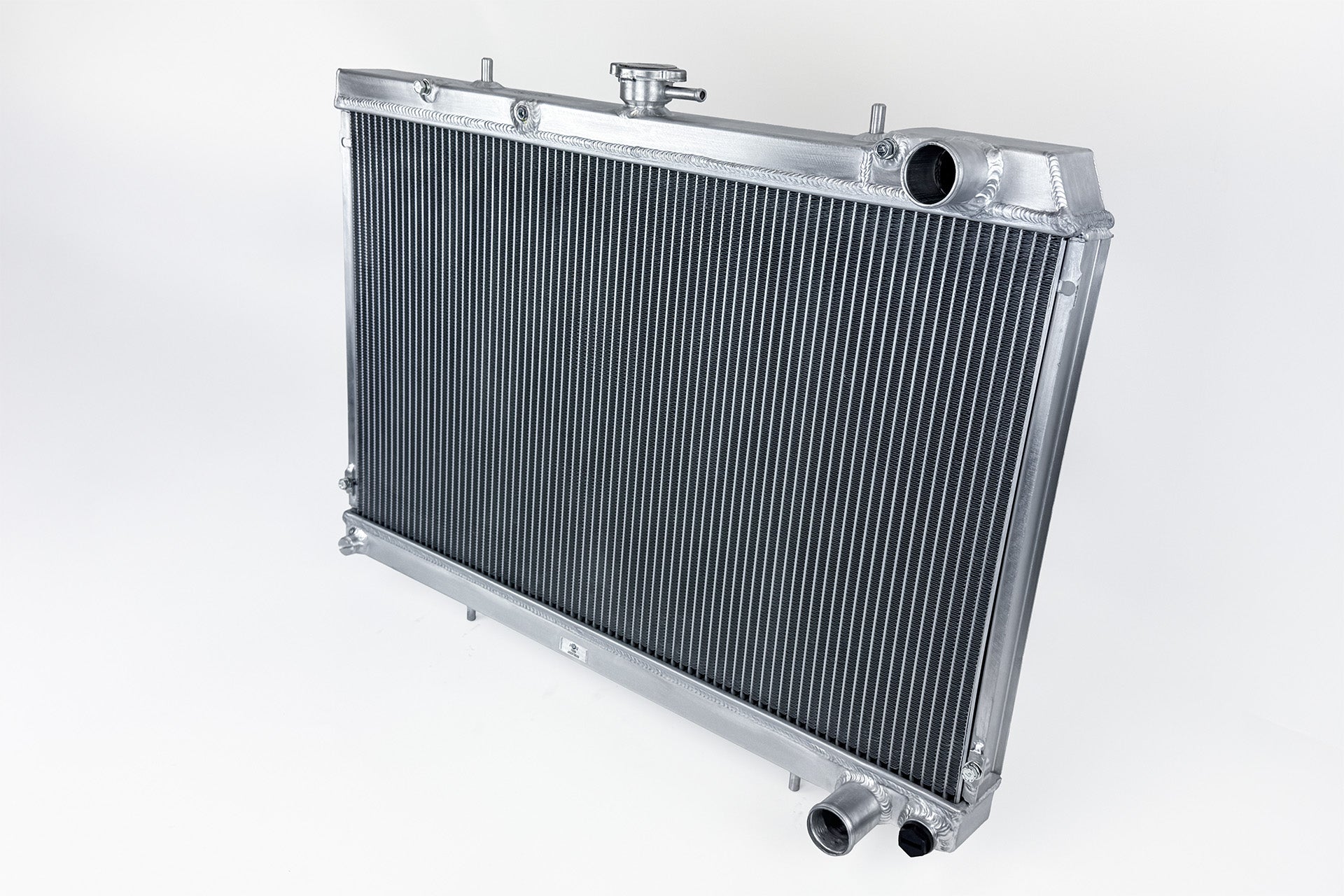

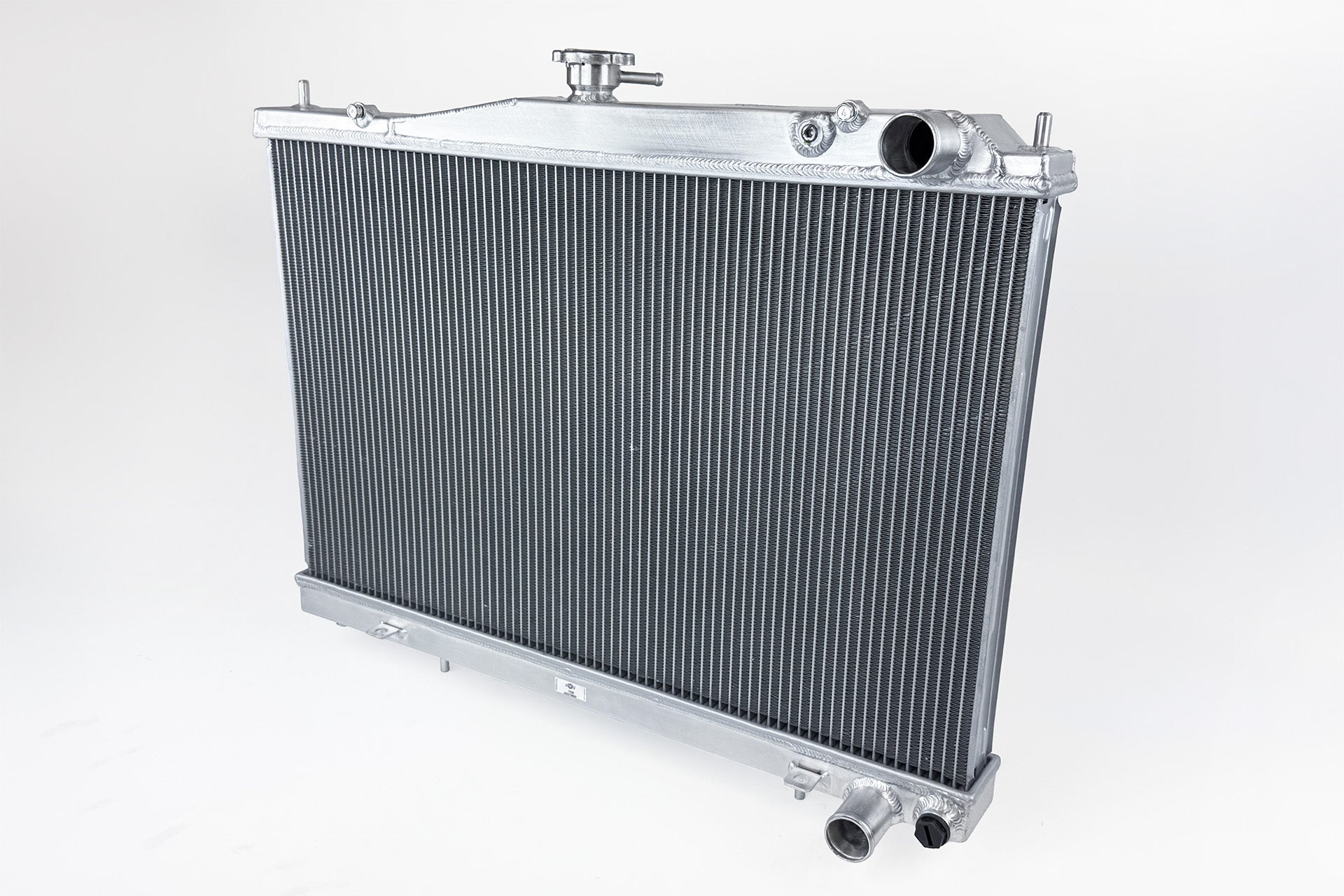

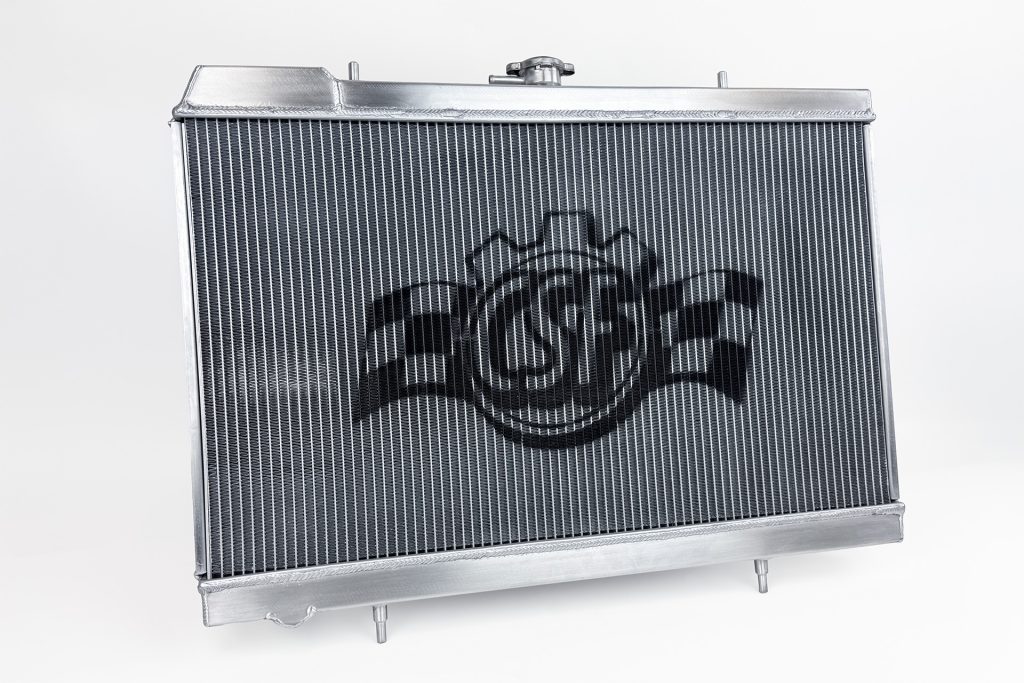

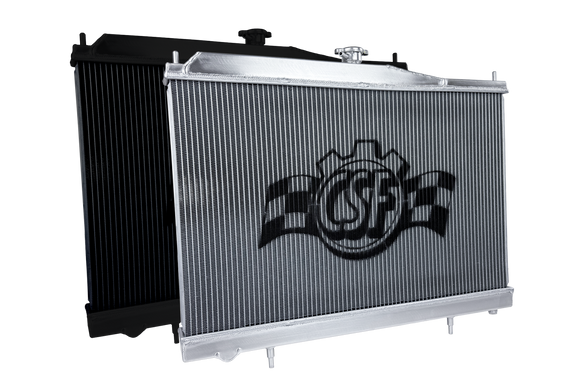

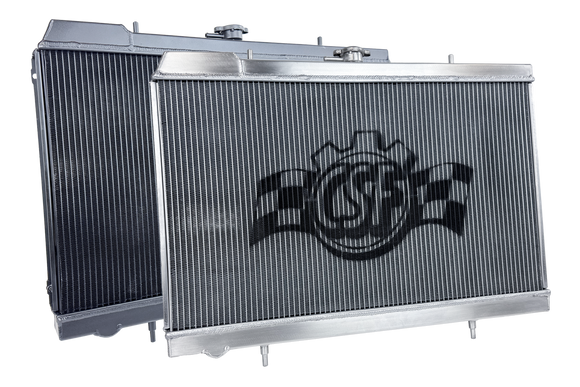

CSF Nissan R32 / R33 / R34 Skyline High-Performance All-Aluminum Radiator (CSF #7229/#7229B/#7230/#7230B/#7231/#7231B)

The Nissan Skyline is probably one of the most famous JDM vehicles. In the United States, the Nissan GT-R is still one of the most popular JDM imports regardless of generation. Over the last decade, we’ve seen more and more of these vehicles imported to the states and the demand for quality parts has grown steadily. Especially for the R32, R33, and R34 Nissan Skylines.

After the huge success of the CSF x TopRank Billet R32 (CSF #7217/7217B) & R33 (CSF #7219/7219B) Radiators, CSF received a lot of feedback from customers looking for a non-billet version. CSF is now pleased to announce the full line of High-Performance All-Aluminum Radiators for the R32, R33, and R34 Nissan Skylines.

Design & Engineering

The inline 6 motors found in the R32/R33/R4 Skylines are quite robust. Whether you have a basic 2.0L RB20 or legendary RB26, you probably don’t worry too much about engine reliability. The GT-R’s RB26 is well known for making big power and being reliable while doing it. However, power gains come at the cost of a lot of extra heat. While the factory radiator does a decent job keeping heat in check on stock setups, it’s always better to have more protection, especially as you’re making big power upgrades.

OEM vs CSF

The 2-Row 42mm core greatly not only increases the fluid capacity of the radiator, but also improves the cores ability to dissipate heat. CSF’s Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. More cooling rows also improve the overall efficiency of the radiator. More cooling tubes means more surface area for the coolant’s heat to dissipate from.

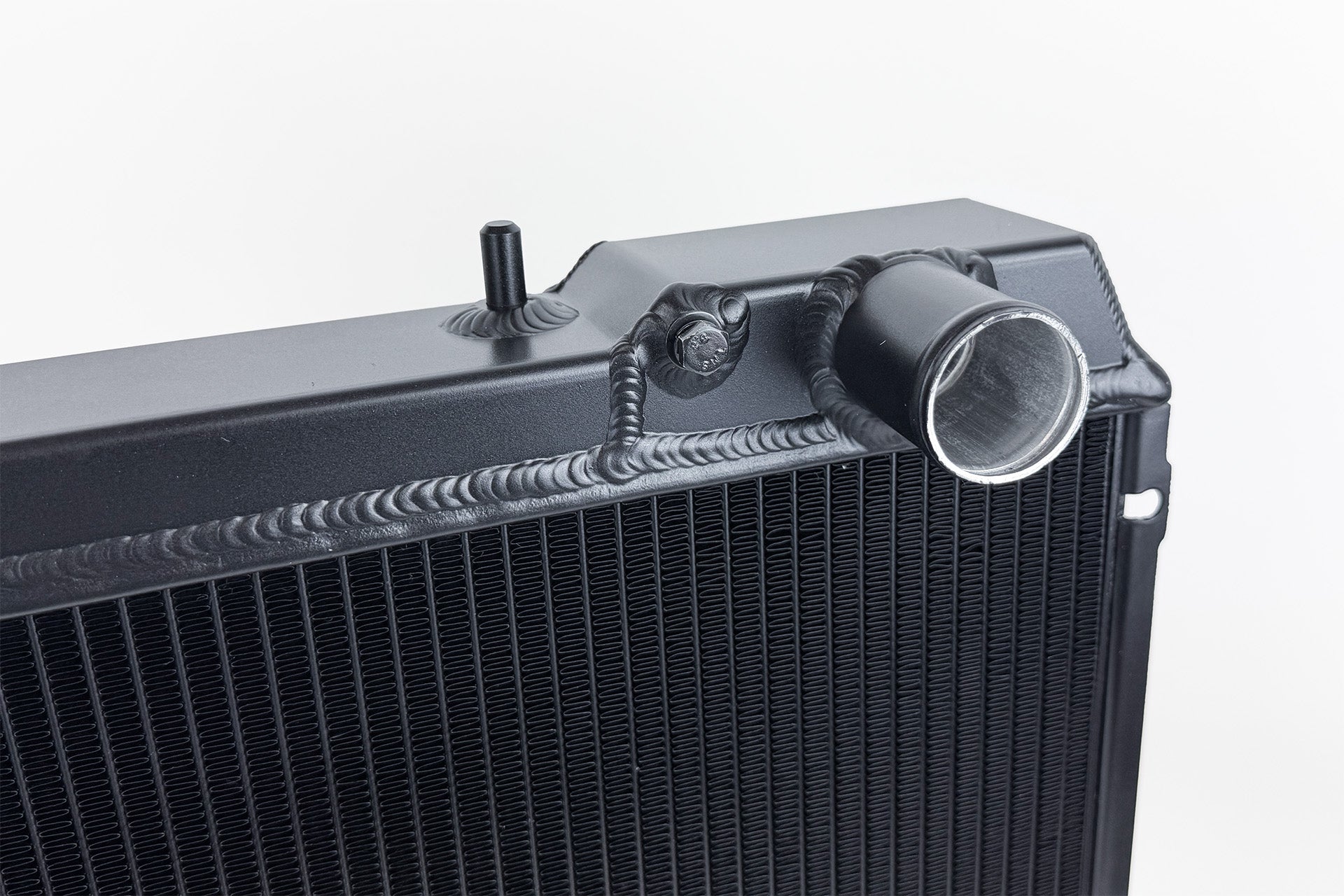

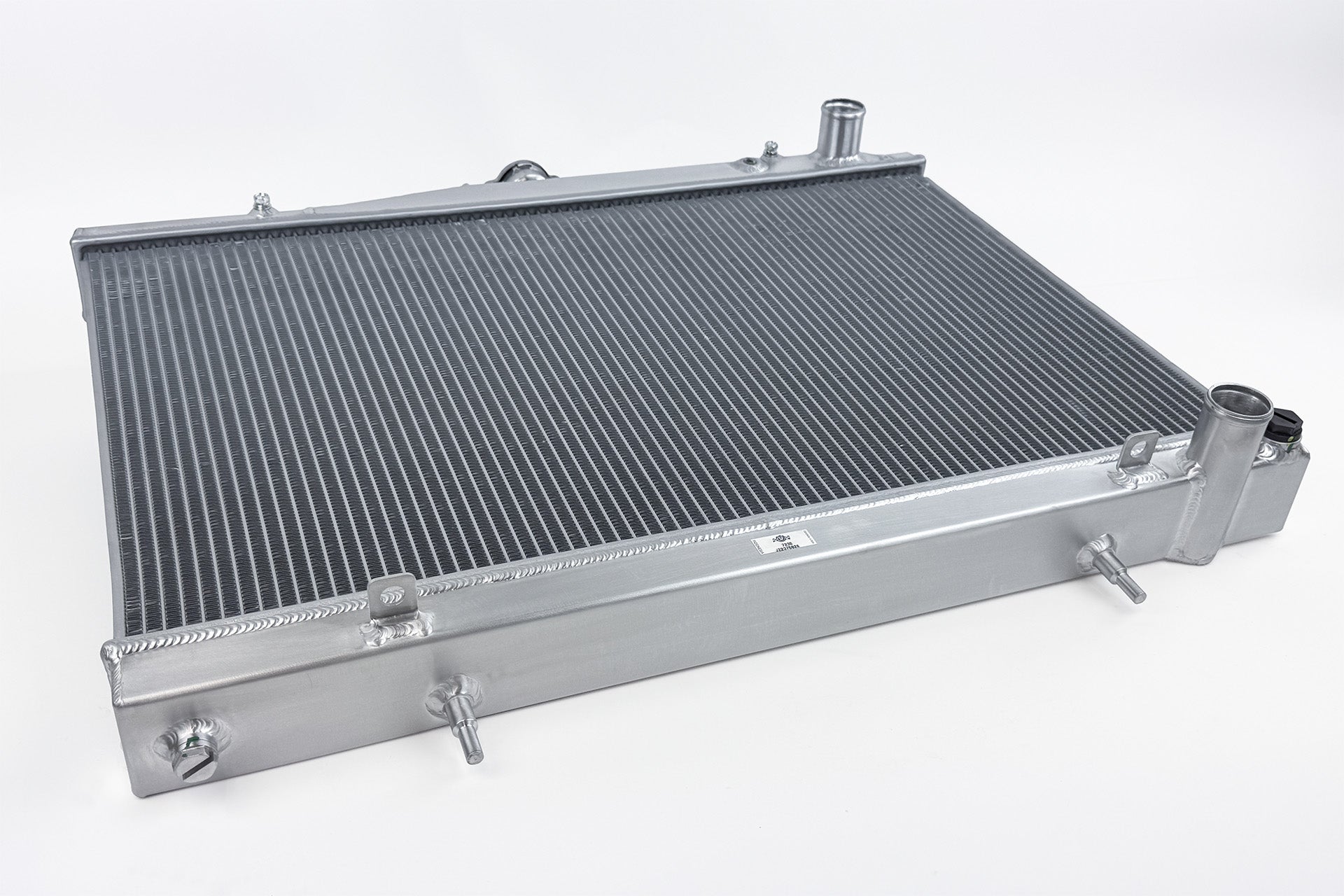

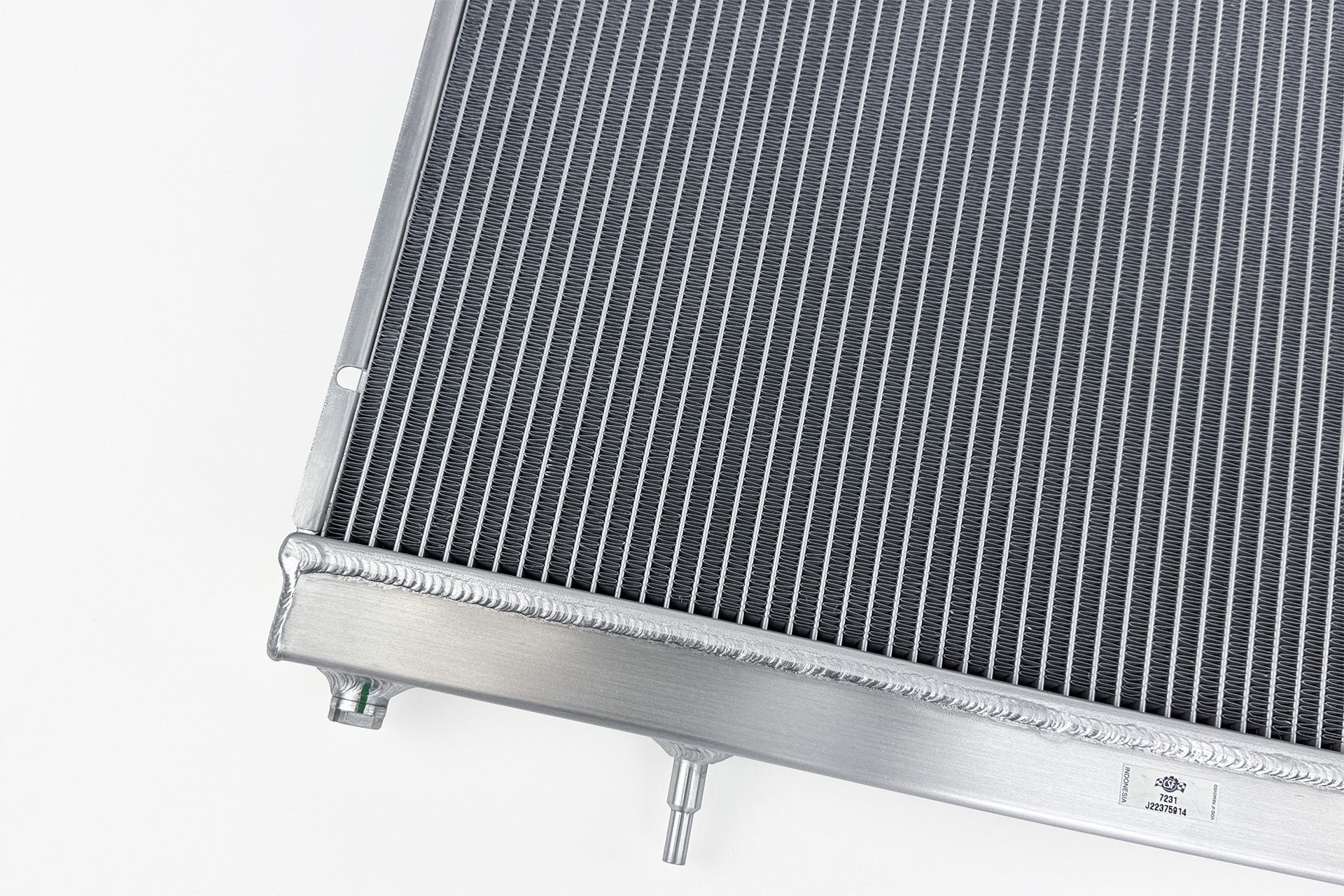

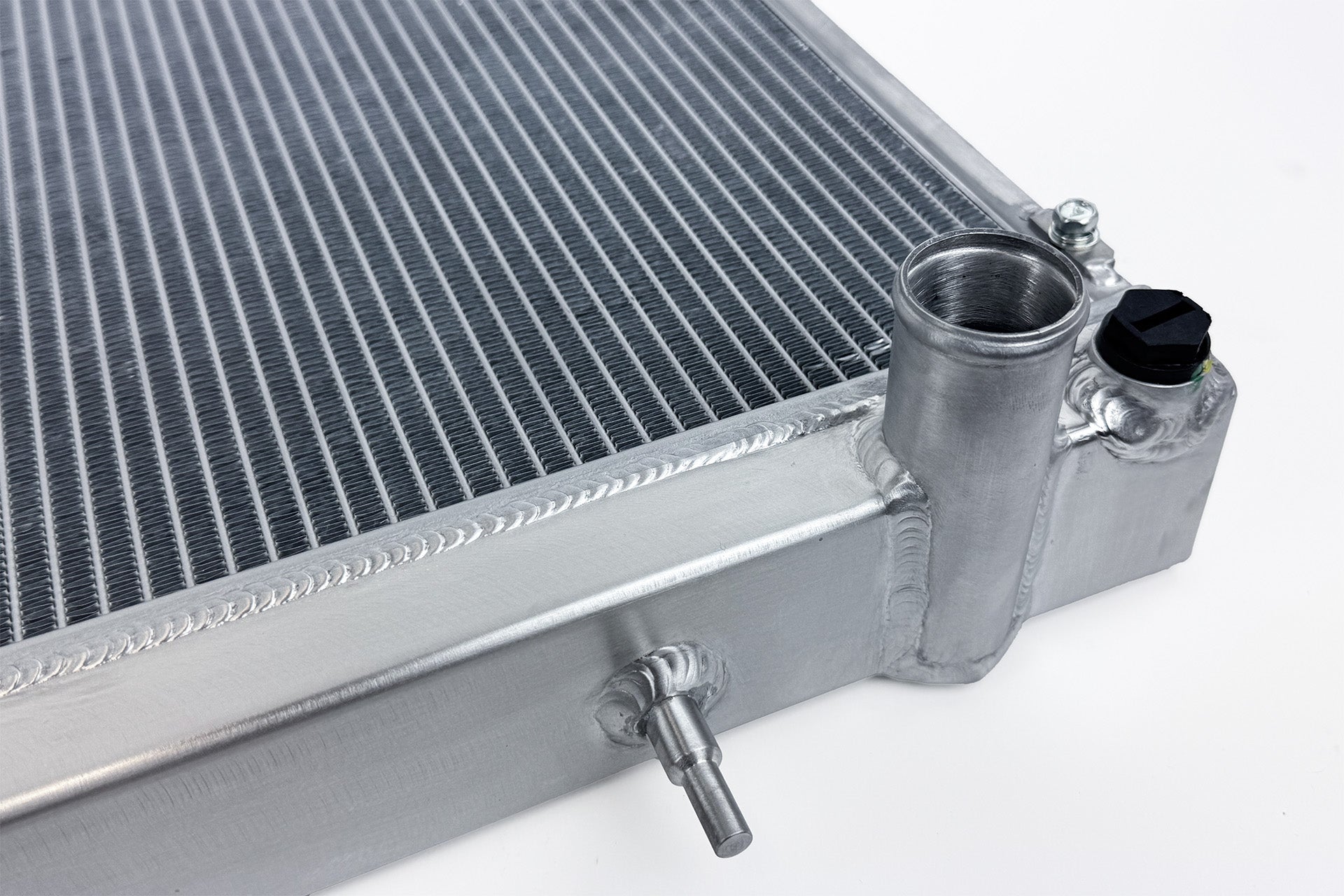

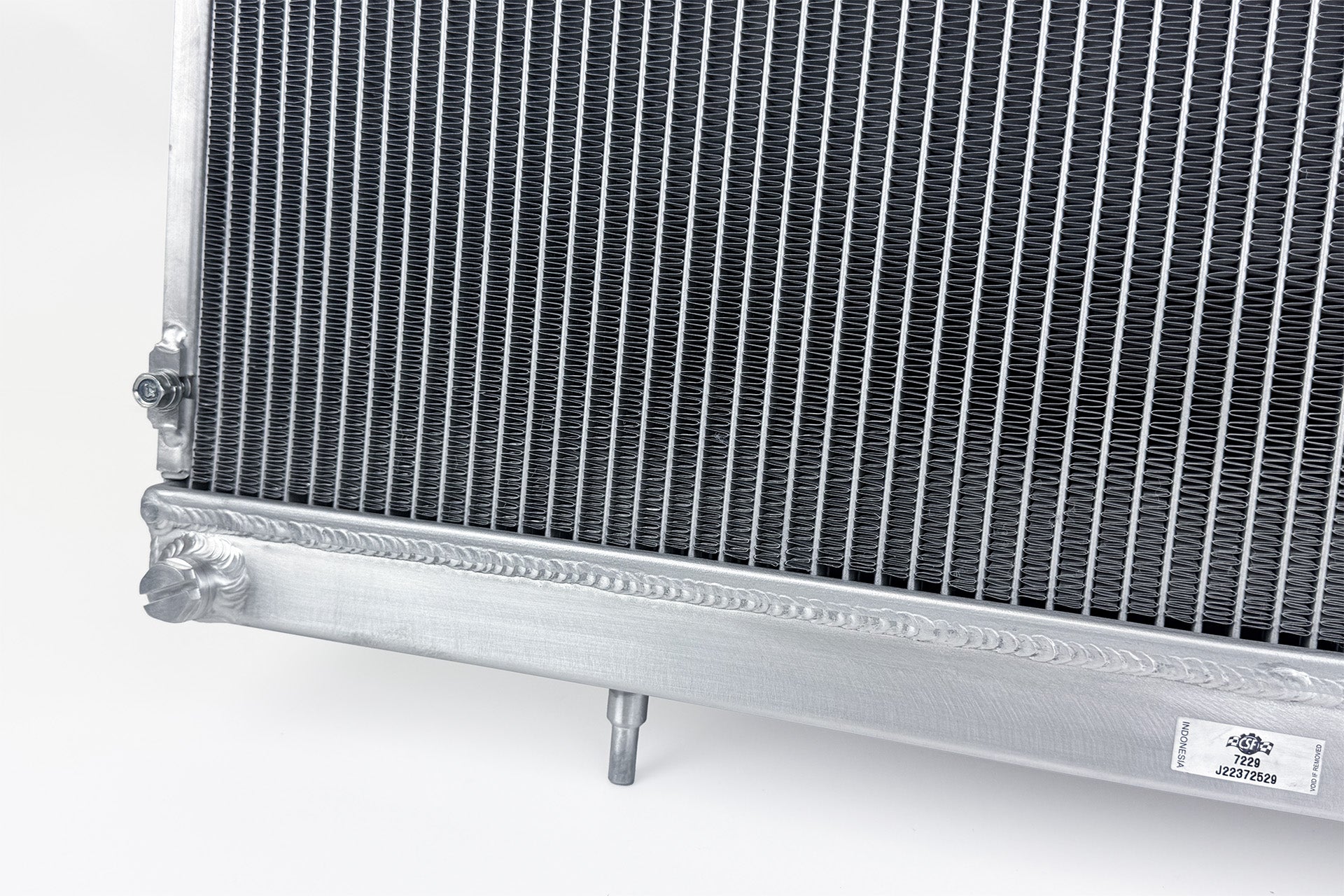

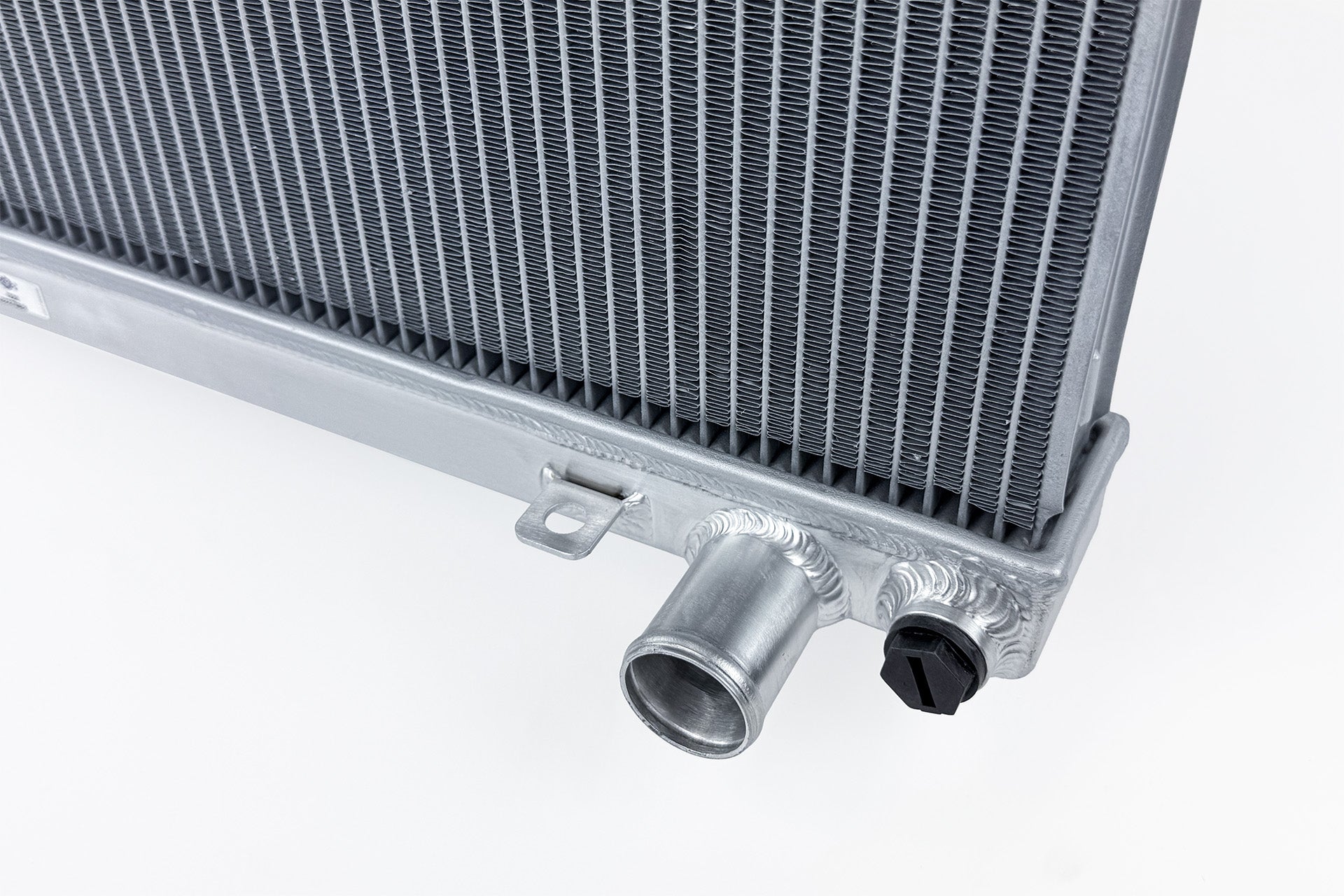

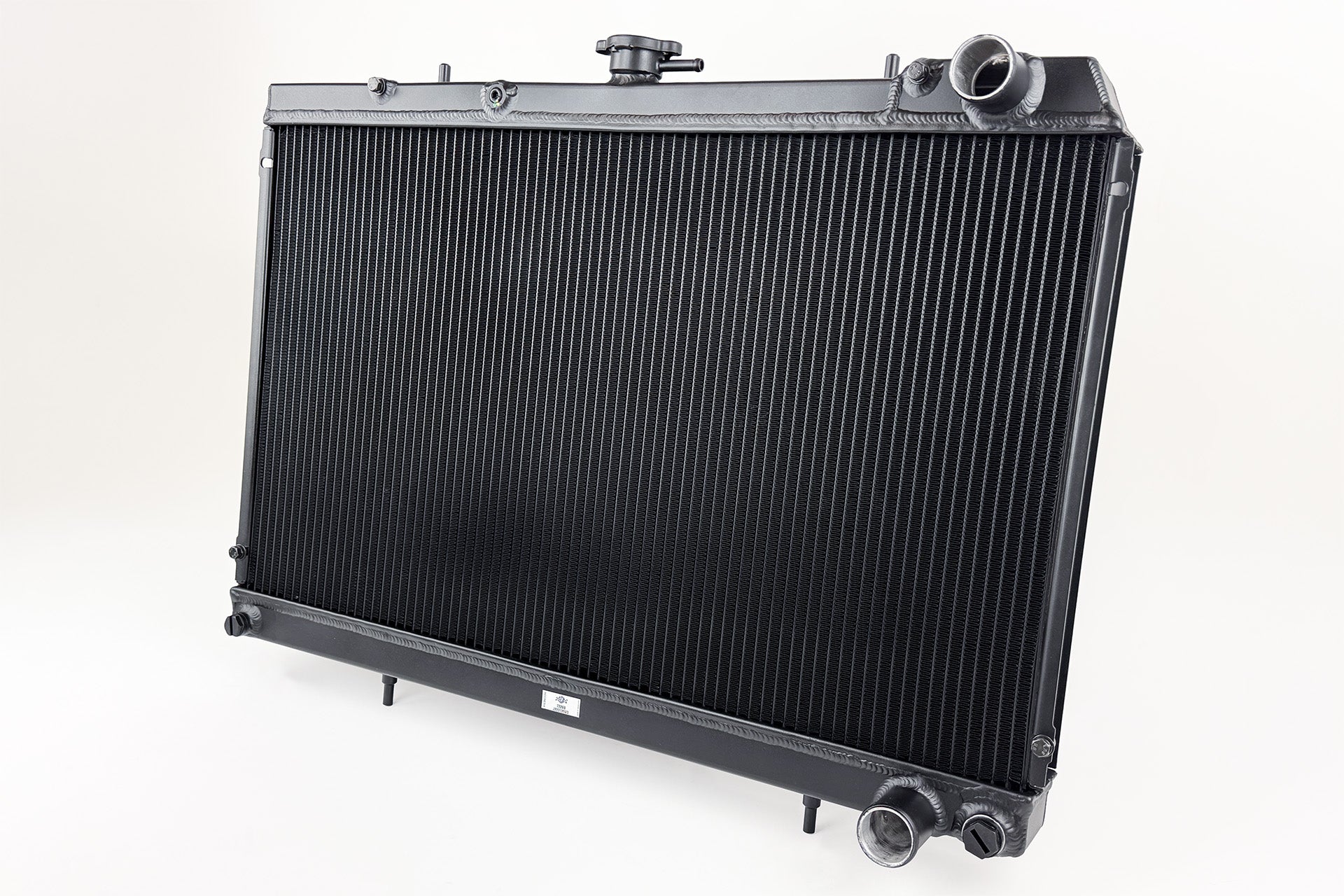

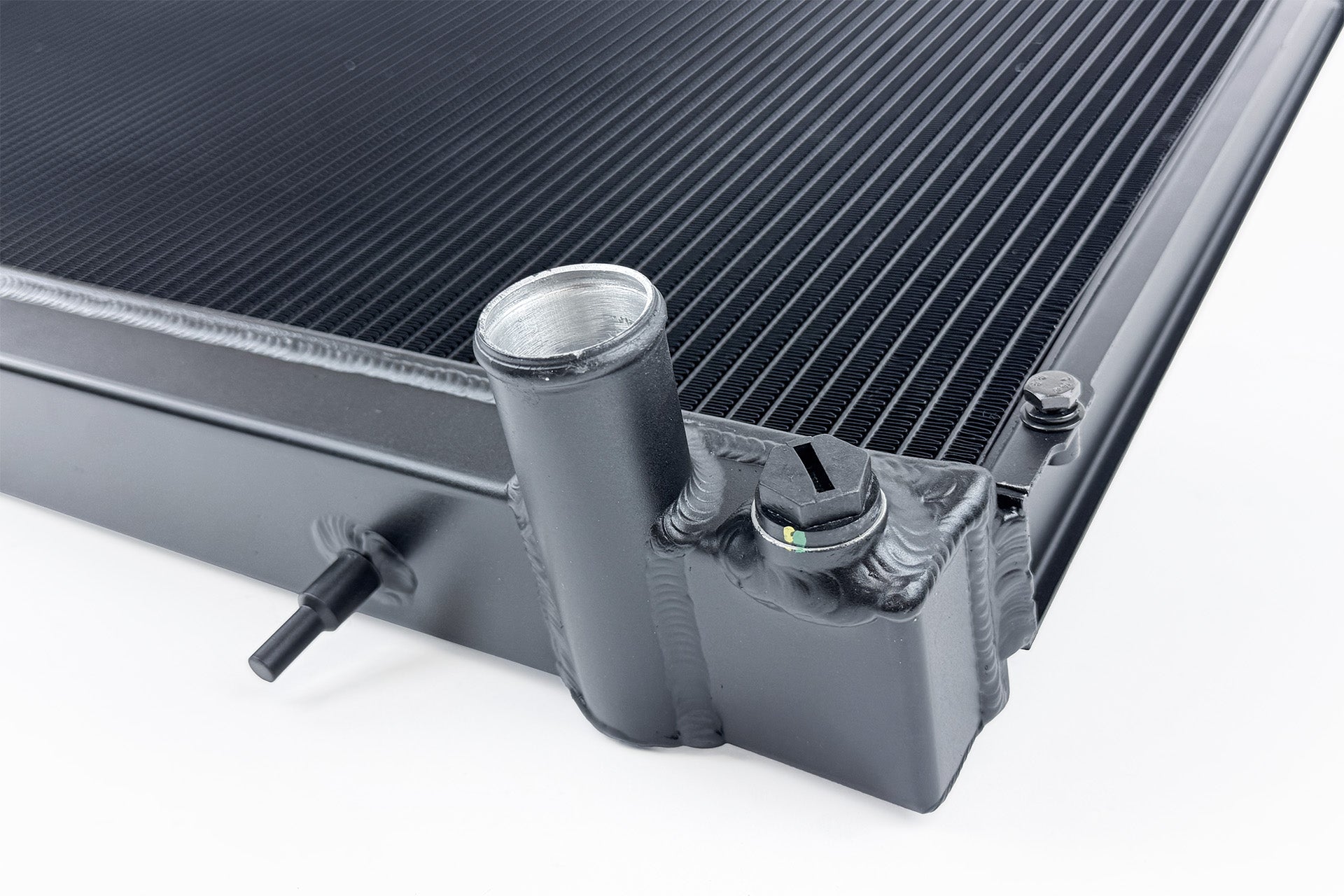

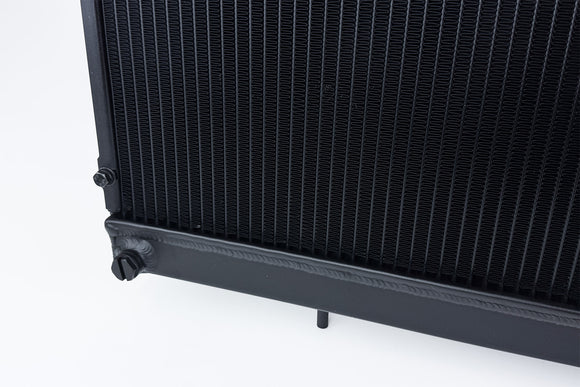

Each end tank is constructed from high-grade aluminum for strength and durability. The TIG-Welded construction further increases the overall strength. Each top end tank includes a pre-plugged 1/8th NPT and each bottom end tank includes M16x1.5P ports for temperature sensors. The CSF radiators mount in the factory location and require no modifications or cutting.

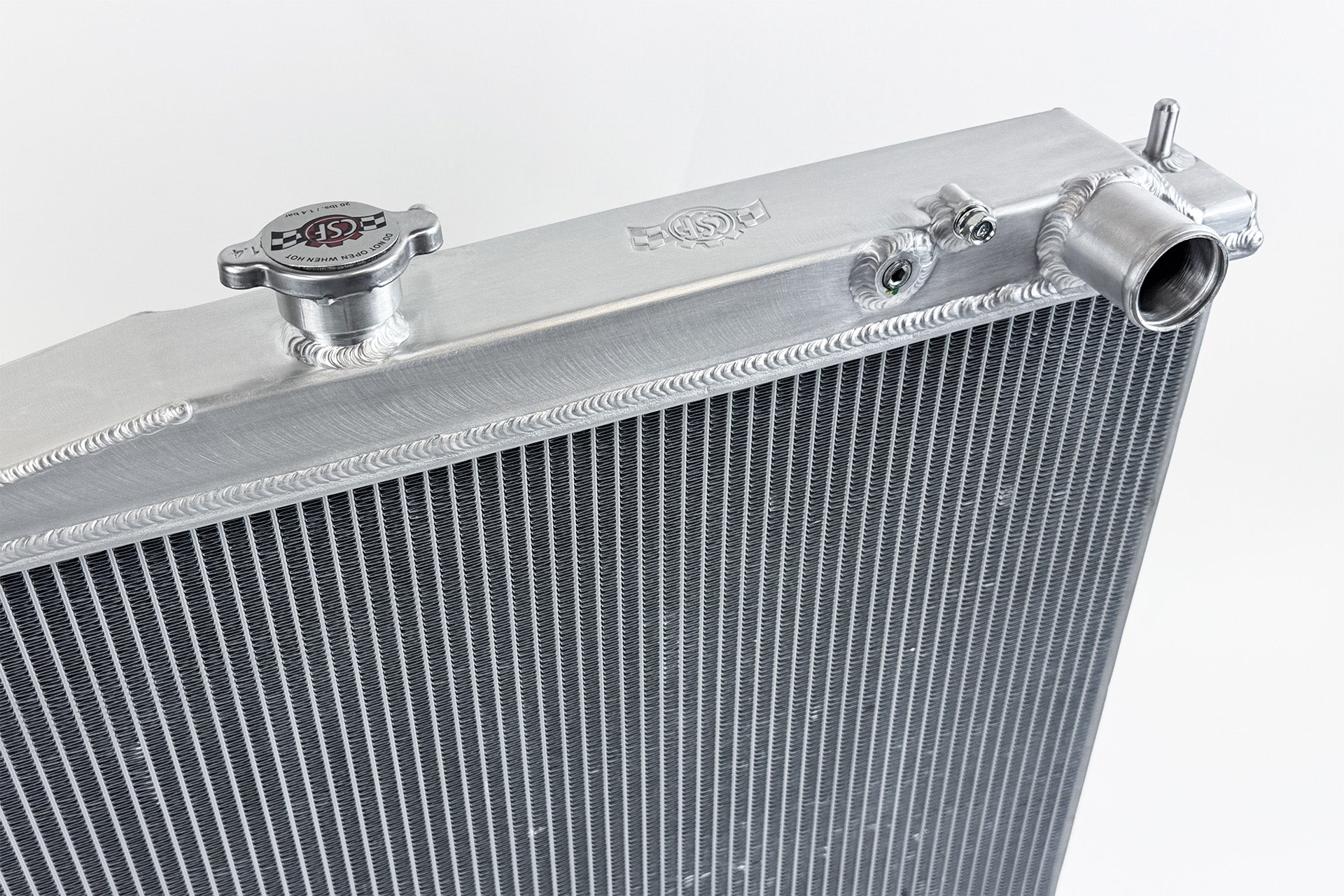

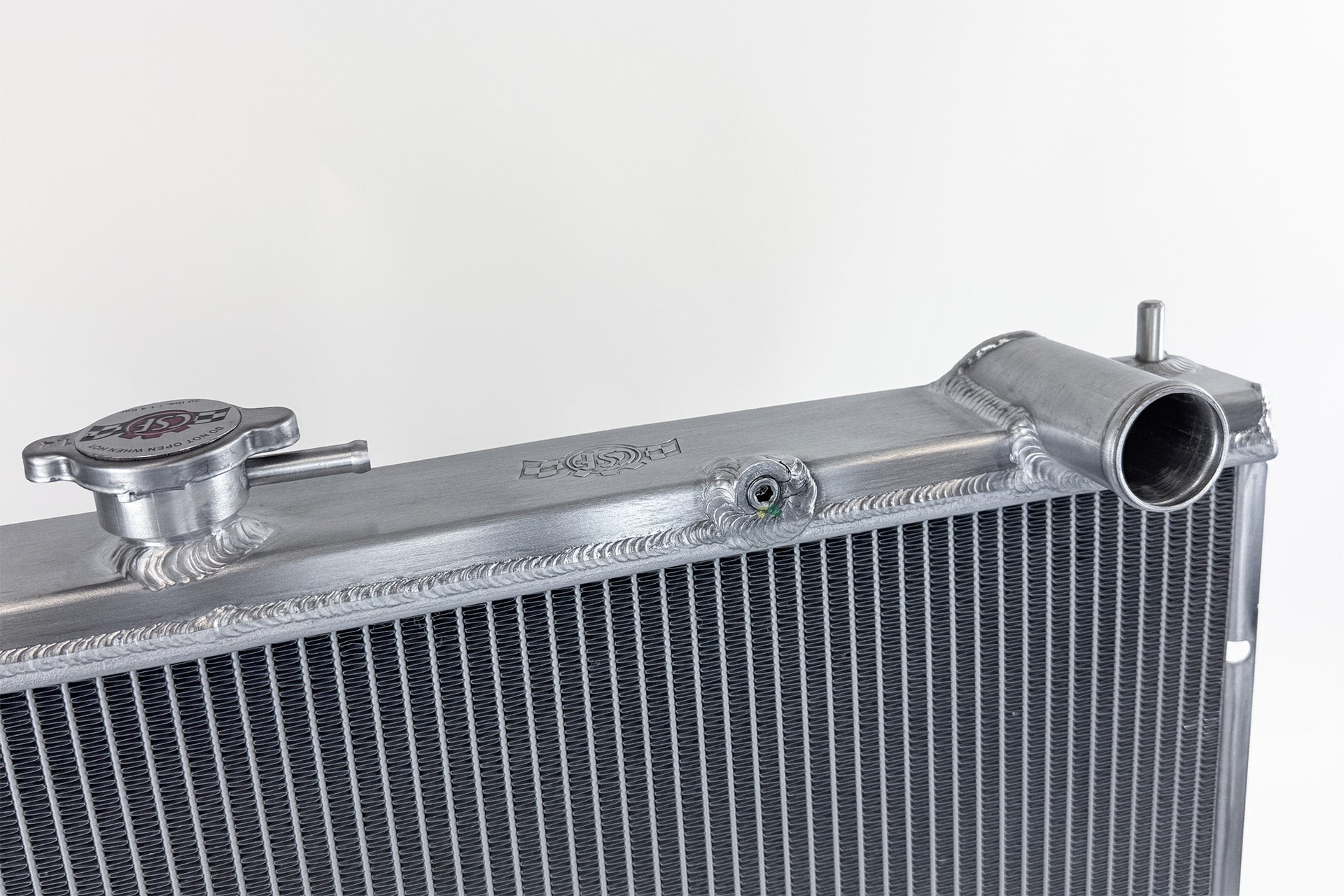

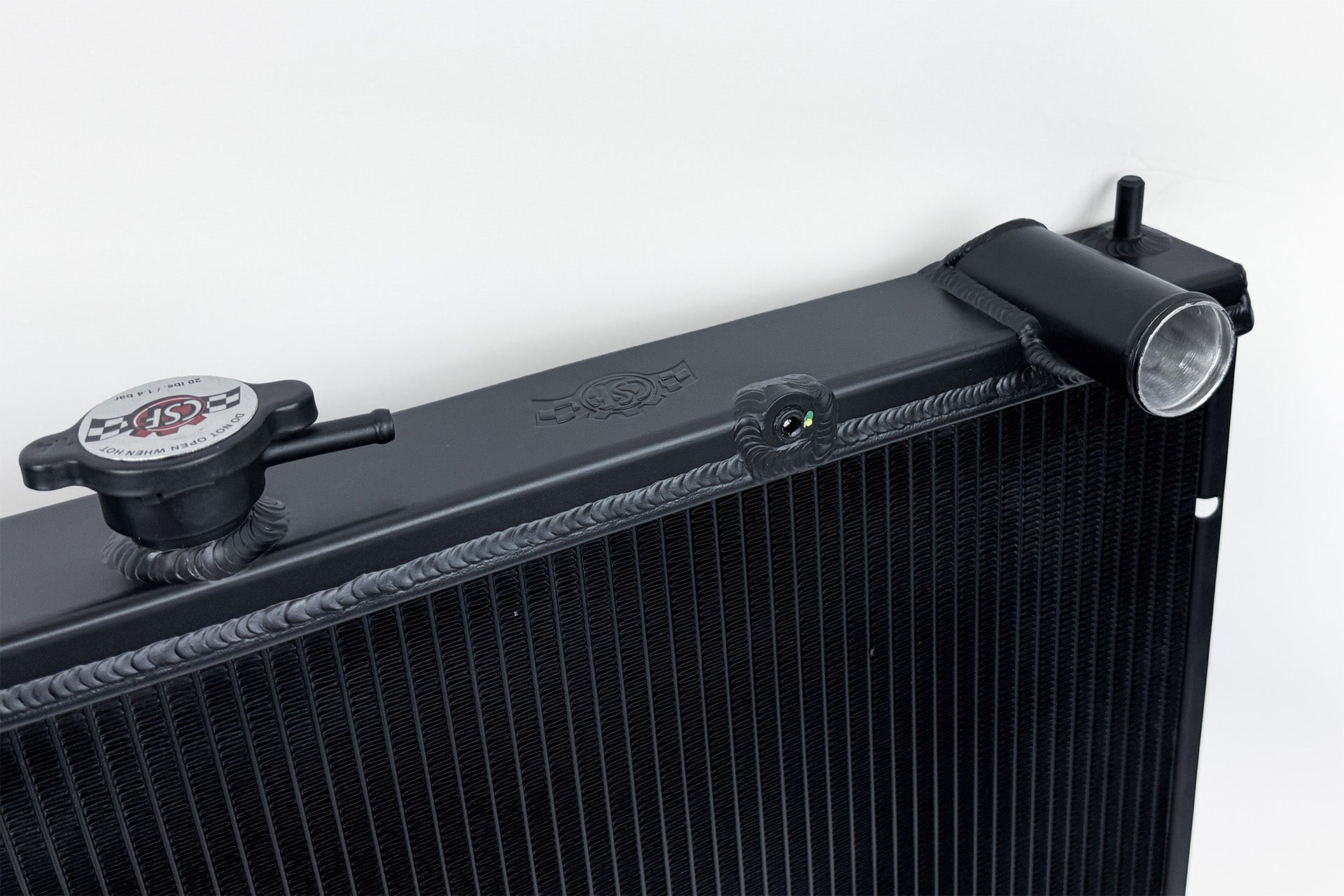

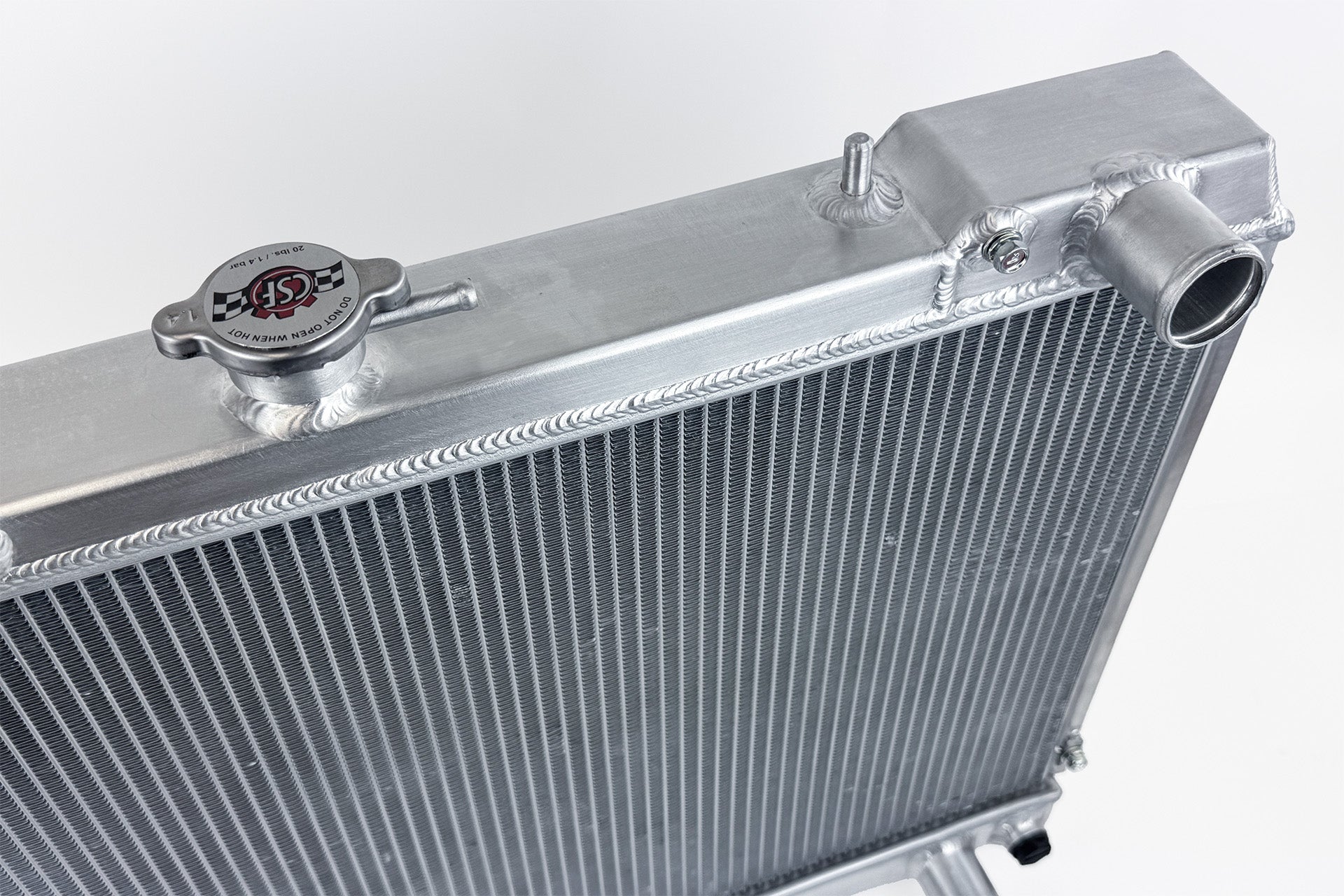

Each radiator includes a 1.4 bar high pressure cap with an embossed CSF logo. High pressure radiator caps raise the boiling point of coolant. This helps protect the system from boiling over at higher operating temperatures. While the radiator is designed to keep the system from reaching such temperatures, it is always good to have extra protection for situations where the coolant gets too hot.

Featured Vehicles

Throtl R34 GT-R

The Throtl Nissan R34 GT-R built by Mickey Andrade debut at SEMA 2024. This 2 Fast 2 Furious tribute build was the first R34 to feature a CSF Radiator and is just an immaculate build.

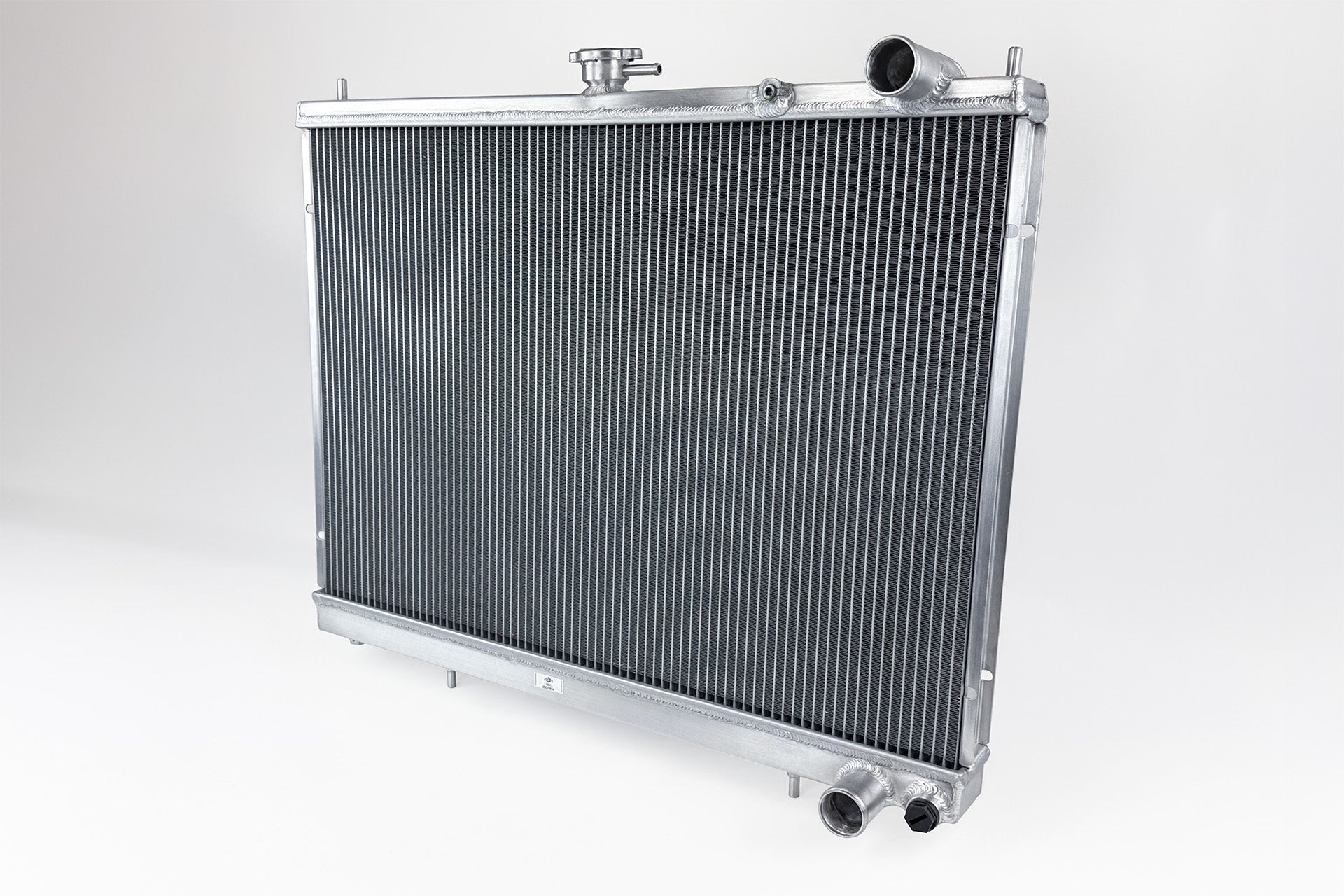

Nissan R32 / R33 / R34 Skyline High-Performance All-Aluminum Radiator Features
(CSF #7229/#7229B/#7230/#7230B/#7231/#7231B)

• 2-Row – 42mm Ultra-High-Performance Core
• 75 Cooling Tubes with CSF’s Exclusive B-Tube Technology
• 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• CNC Machined Mounting Pins and OEM Style Inlet/Outlet
• 1/8th NPT Temp Sensor Port on Top End Tank

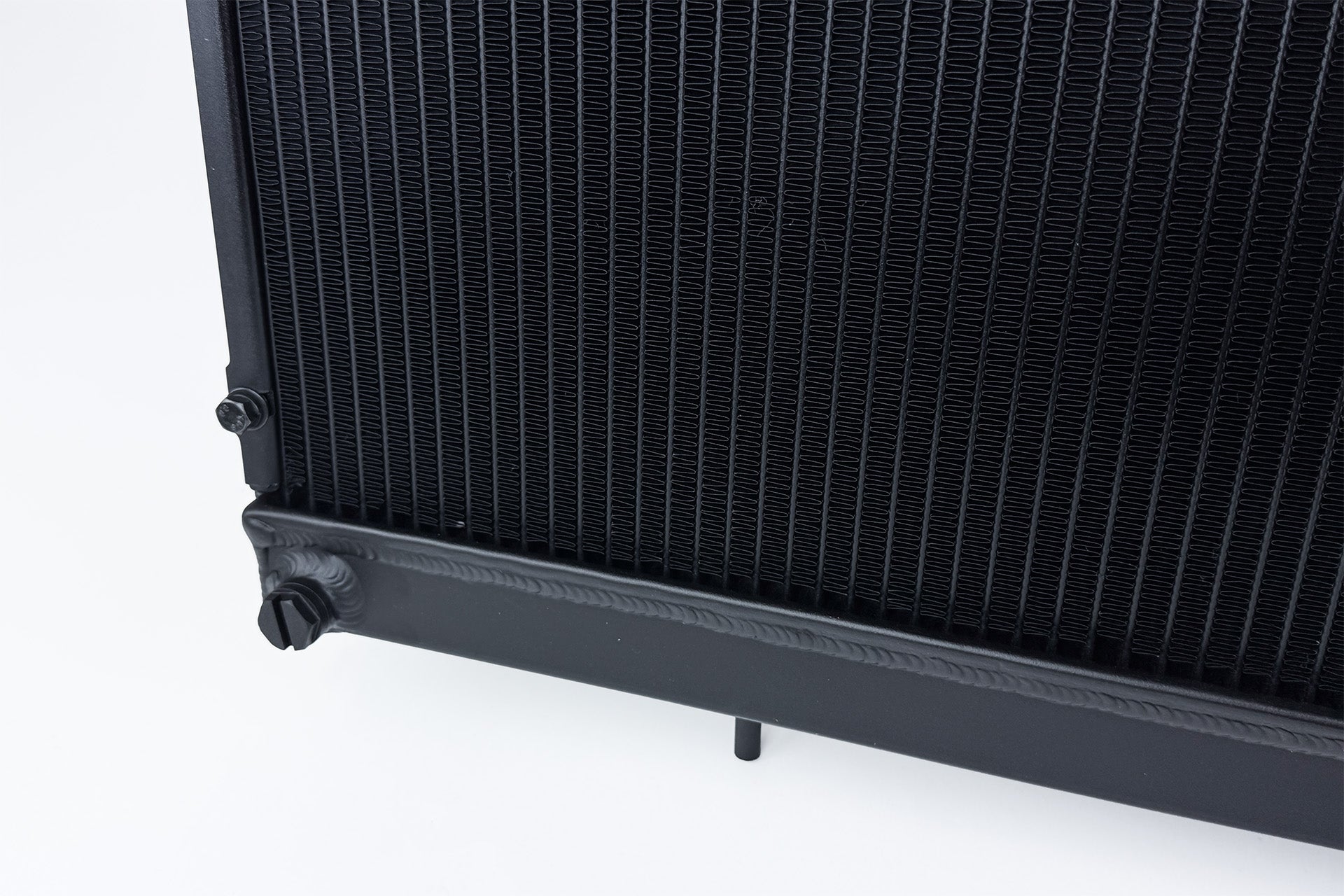

• M16 x 1.5P temperature sensor port with pre-installed plug
• 100% All Aluminum TIG-Welded Construction
• 1.4 Bar High Pressure Radiator Cap with CSF embossed logo
• True Plug-and-Play “Drop-in Fit” Installation Requires Absolutely No Modifications
• Individually Leak and Pressure Tested
• OE Location Fan Shroud Mounting Points
• 2-Year Limited Warranty

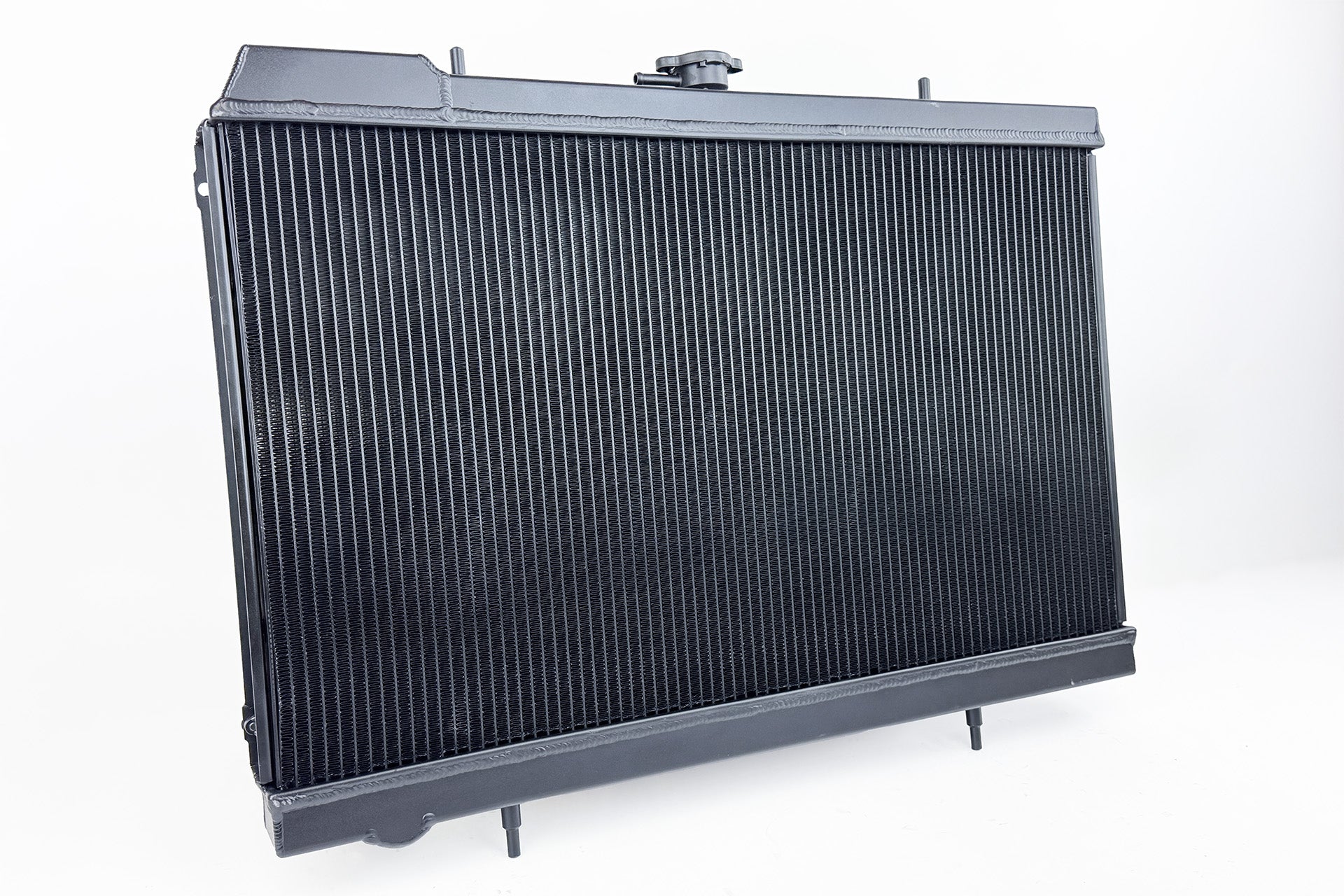

• CSF #7229/7229B Applications:
  • 1989-1994 Nissan R32 Skyline GT-R (incl. V-Spec & V-Spec II)
  • 1989-1993 Nissan R32 Skyline GTS / GTS-t / GTS-4 / GTS-25
  • 1989-1993 Nissan R32 Skyline GTE
  • 1989-1993 Nissan R32 Skyline GXi

• CSF #7229/7229B OEM Part Numbers:
  • Nissan: 21410-04U01

• CSF #7229/7229B

• CSF #7230/7230B Applications:
  • 1995-1998 Nissan R33 Skyline GT-R (incl. Nismo, V-Spec, CRS, etc)
  • 1994-1997 Nissan R33 Skyline GTS / GTS-25 / GTS-4 / GTS-25t

• CSF #7230/7230B OEM Part Numbers:
  • Nissan: 21410-15U17

• CSF #7230/7230B*

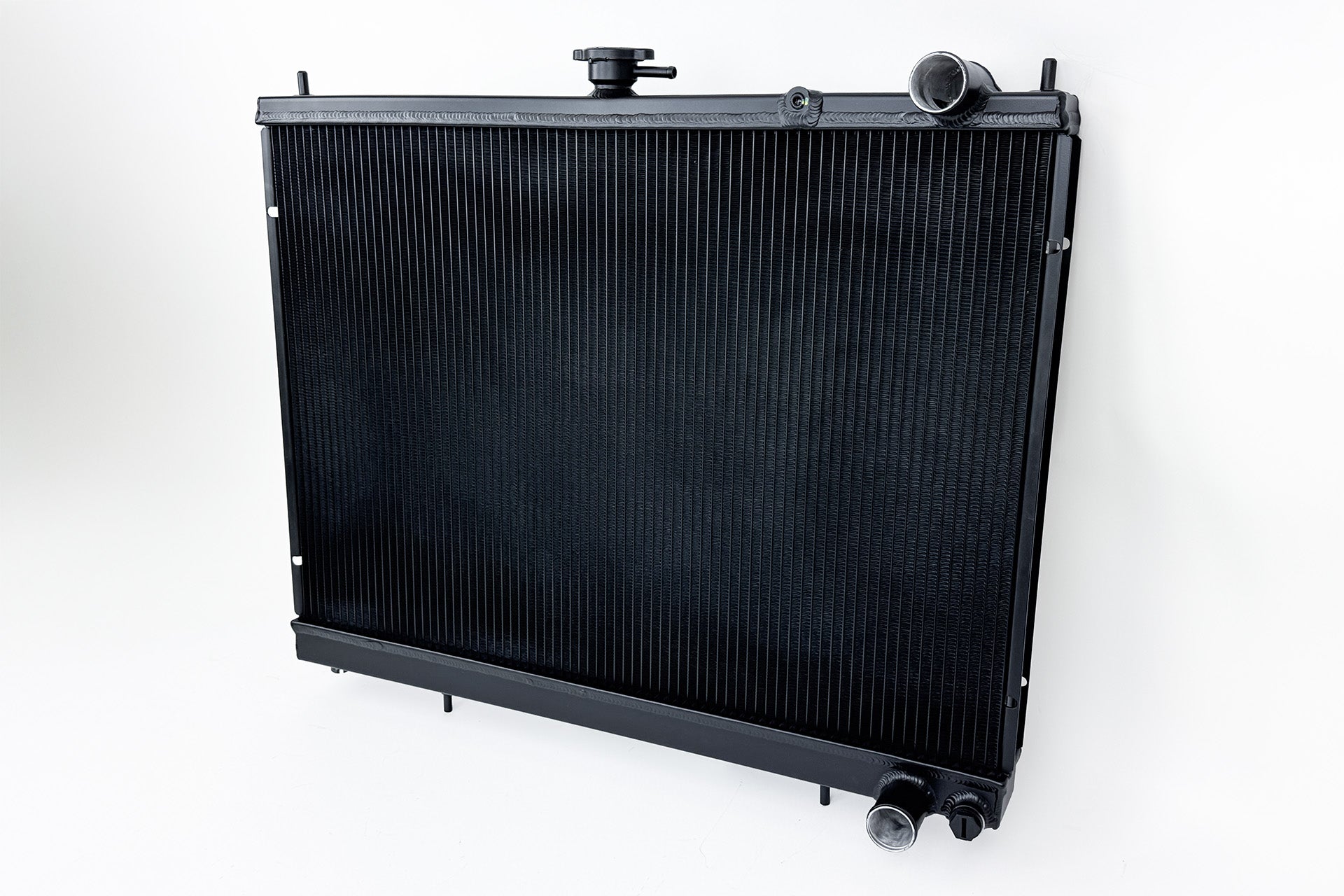

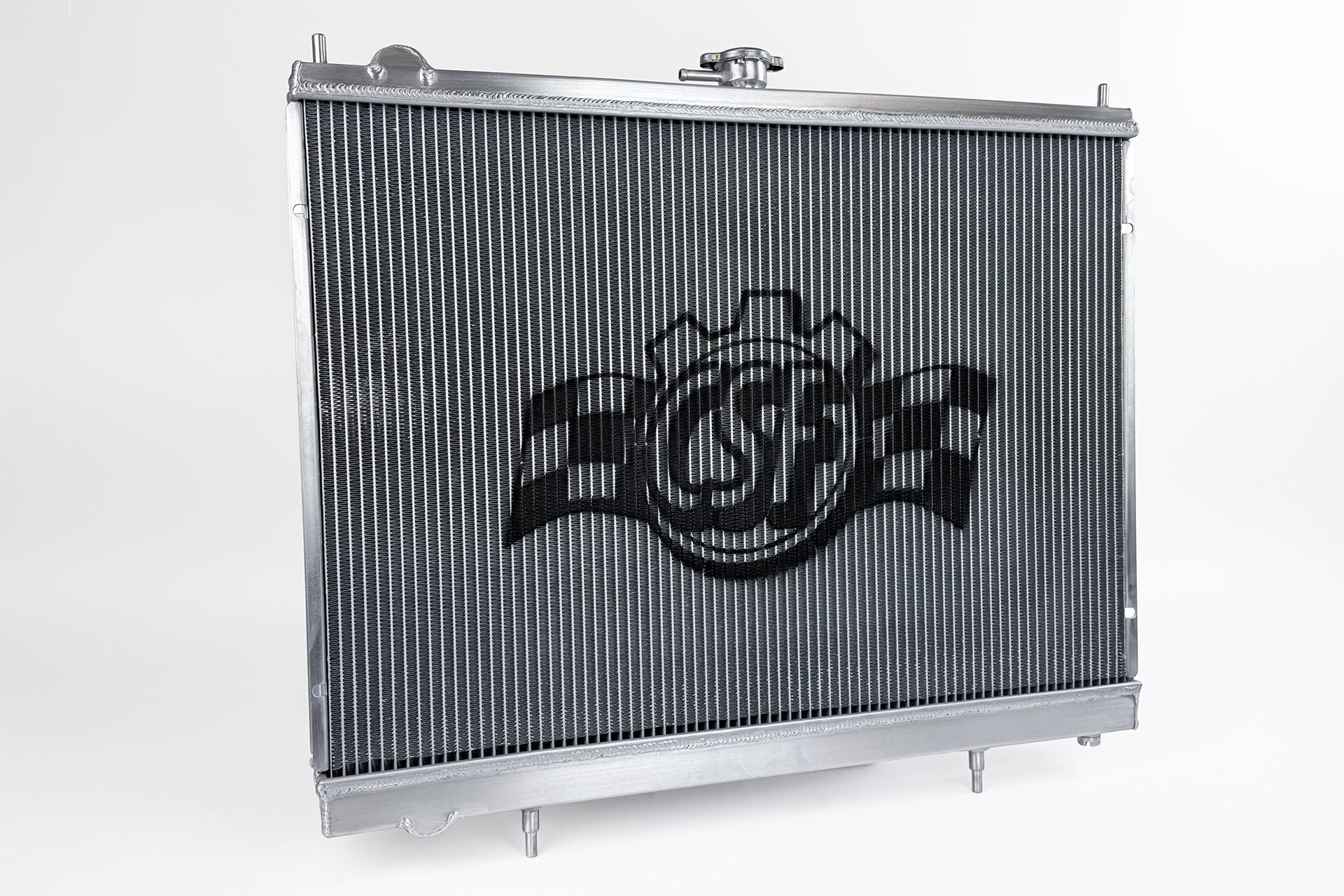

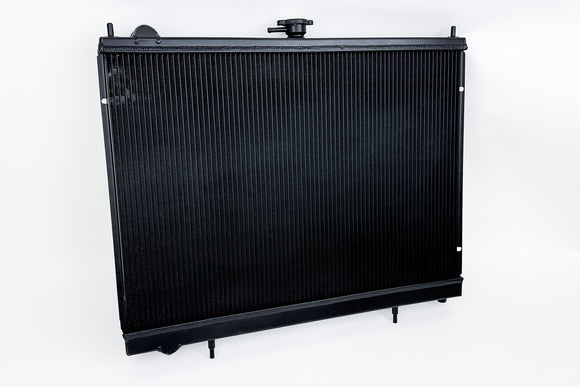

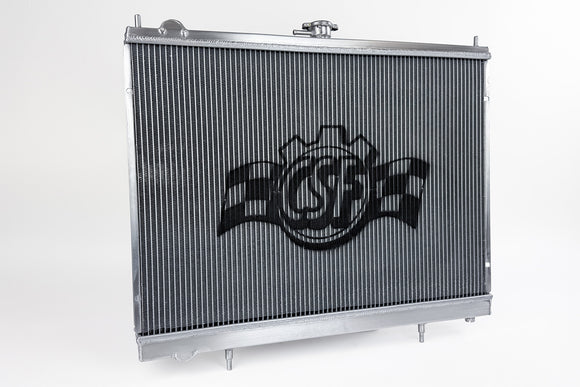

• CSF #7231/7231B Applications:
  • 1999-2002 Nissan R34 Skyline GT-R (incl. Nismo, V-Spec, M·spec, etc)
  • 1999-2002 Nissan R34 Skyline GT / 25GT / 25GT-V / 25GT FOUR / 25GT Turbo
  • 1999-2002 Nissan R34 Skyline 25GT-X / 25GT-X FOUR / 25GT-X Turbo

• CSF #7231/7231B OEM Part Numbers:
  • Nissan: 21410-AA401

• CSF #7231/7231B
