DS032048DS
OVERVIEW

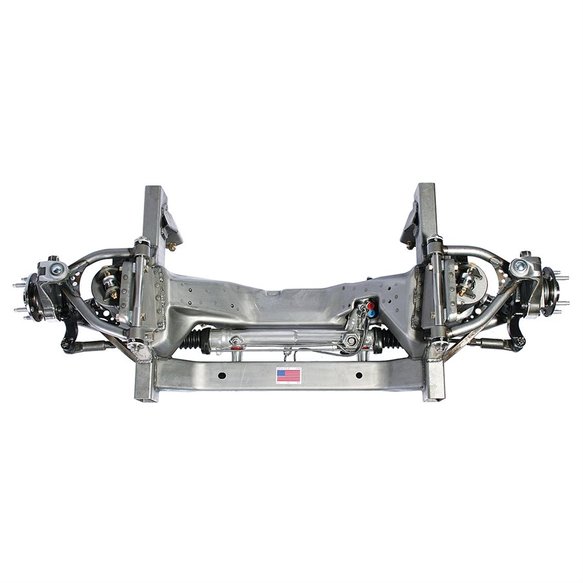

Detroit Speed's X-Gen series of front suspension systems allow you to integrate Detroit Speed suspension technology into any vehicle. This complete suspension module is available with a 59.5" track width and is ready to be subbed into your application with the 2" x 4" rail sections. These are the same suspension systems found in Detroit Speed's bolt-in front frames so they have been designed, engineered, and developed to provide the ultimate in performance on both the road and the track. Base Shock: The DSE/JRi 'Detroit Tuned' base shock is a 'pure blood pedigree' racing shock in its most efficient form as a non-adjustable unit. Although non-adjustable, it shares all the increased dynamic responses of all the JRi adjustable models while providing excellent ride quality on the street.
Features:
- Detroit Speed exclusive suspension geometry for superior ride and handling
- OEM quality stamped crossmembers for improved structural rigidity
- Tubular upper and lower control arms
- 'Detroit Tuned' aluminum body coilover shocks
- Torrington Bearings
- 'Detroit Tuned' power rack and pinion steering
- Caster tuner bushings which allow independent caster/camber adjustments
- Integrated splined sway bar
- Spanner Tool for easy shock adjustments
SPECS
| Bolt Pattern | 5x4.5 |
|---|---|
| Brand | Detroit Speed |
| Distance from Rear of Framerail to Susp. Axis | 13.188in |
| Emission Code | 5 |
| Finish | Powdercoated |
| Framerail Dimensions | 2in x 4in x .120 w |
| Framerail Length | 25.25in |
| Maximum Wheel Backspacing | 6.125in |
| Nominal Ride Height | 1.9in |
| Outer to Outer Frame width | 34.25in |
| Product Type | X-Gen Subframe |
| Shock Type | Non Adjustable |
| Total Suspension Travel | 6in |
| Track Width | 59.5In |
| UPC | 090127166932 |
| California Proposition 65 Required | Yes |
| Part Number | 032048DS |
