DS032050-RDS
OVERVIEW

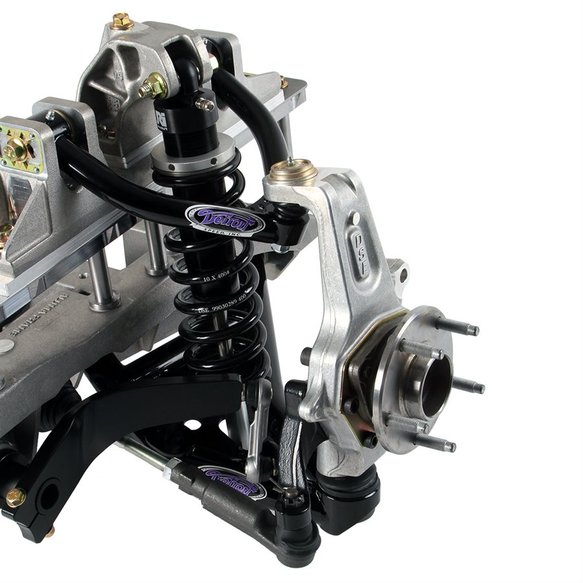

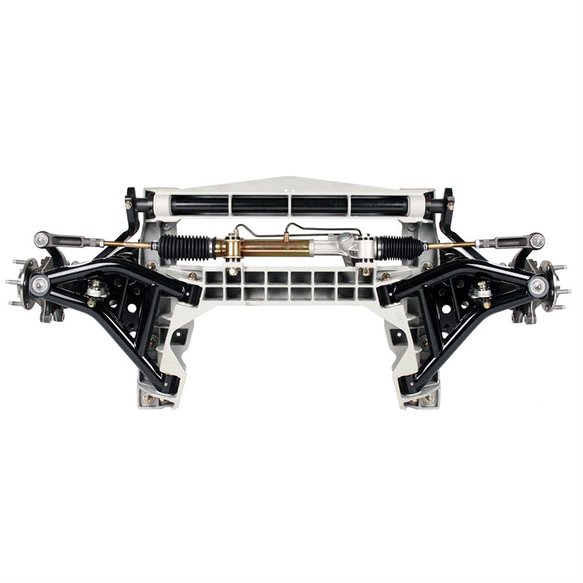

All aluminum front suspension system for 1964.5 -1970 Mustangs featuring Detroit Speed's unique suspension geometry with 6" of suspension travel for the ultimate in ride and performance. Spring Rate: 400lbs/in Spring Free Length: 10inDouble Adjustable w/ Remote Canister: This DSE/JRi shock has all of the qualities of the double adjustable shock and incorporates a gas charged bladder to provide high frequency and low speed dampening control. Remote Canister Shock Mounts: These billet aluminum shock mounts are manufactured for securing your remote shock canisters to the vehicle. The shocks mount with two 1/4"-20 x 1/2" button head screws.
Features:
- Unique cast aluminum cradle and mounting components resulting in a high strength to weight ratio and precise fitment
- Tubular upper and lower control arms
- 'Detroit Tuned' rack and pinion steering
- Detroit Speed/JRi aluminum coilover shocks with 'Detroit Tuned' valving available in fixed valve, single adjustable, double adjustable, or remote canister double adjustable versions
- Torrington Bearings
- Splined integrated style Anti-roll bar
- Detroit Speed's Speed-LIGN caster/camber adjusters allow a wide range of adjustability to be made precisely and quickly without needing any additional shims
- Utilizes aluminum uprights and hub packs with a Ford 5" x 4-1/2" bolt pattern
- Can fit up to P265/35R18 tires on a 9" rim on early models and up to P295/35R18 tires on a 10.5" rim on later models
- Retains stock framerails and inner fenders and only requires a small amount of fabrication for installation
- Engine mount kits available for Ford small block Windsor engines, Ford FE big block engines, Ford 4.6, 5.4, and Coyote 5.0 modular engines including the Boss 302; as well as, GM LS engines
- Spanner Tool for easy shock adjustments
- Forged Detroit Speed Spindle
- Composite Anti-Roll Bar Bushings
SPECS
| Bolt Pattern | 5x4.5 |
|---|---|
| Brand | Detroit Speed |
| Emission Code | 5 |
| Finish | Aluminum |
| Product Type | Aluma-Frame Subframe |
| Ride Height | 1 in. +/- 1 in. |
| Shock Type | Double Adjustable Remote |
| Static Camber | -0.5 degrees +/-0.2 degrees |
| Static Caster | 8 degrees +/- 0.5 degrees |
| Static Toe | 0 degrees +/- 0.1 degrees |
| Total Bumpsteer (28 | .070 in. |
| Total Suspension Travel | 6 in. |
| Turning Angle | 27 degrees |
| UPC | 090127166994 |
| California Proposition 65 Required | Yes |
| Part Number | 032050-RDS |
