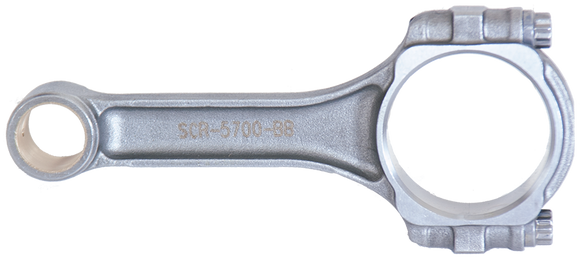

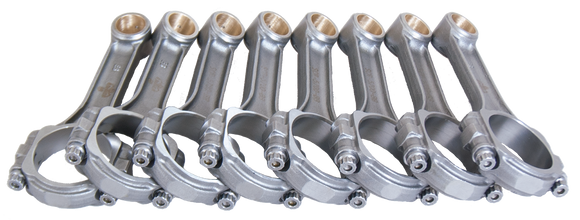

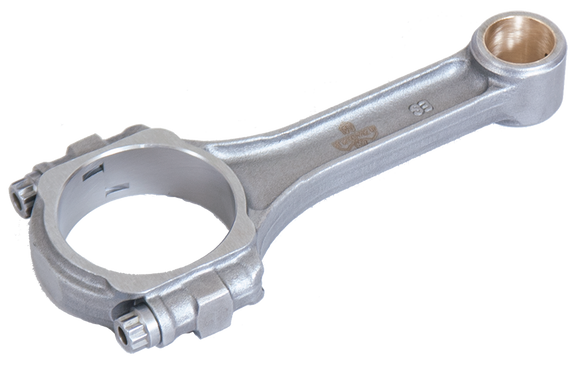

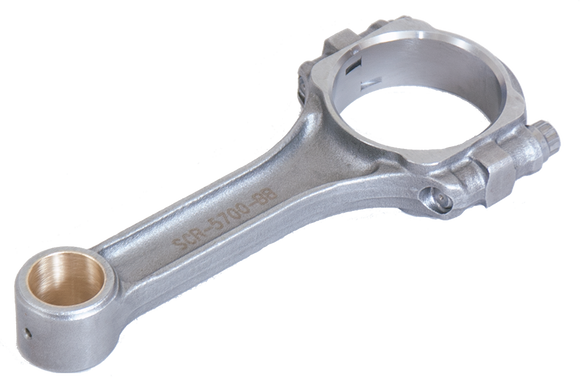

Eagle Chevrolet Small Block I-Beam Rod Set

SIR5700BBLW

Important Torque to 40 ft-lbs - ARP moly lube only!

Highlights:

• Bolts: 3/8" ARP 8740
• Material: Forged 5140 Steel
• Center to Center Length: 5.700"
• Pin Size: 0.927
• Pin End Width: 1.063
• Rod Journal: 2.1
• Housing Bore: 2.225
• Big End Width: 0.94
• Silicon-Bronze pin bushing for full-floating piston pins.
• Typical Weight: 560g

Forged 5140 steel I-Beam connecting rods are an upgrade from O.E. rods and feature a shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Recommended for naturally-aspirated, pump gas, road car use.
