Eventuri Carbon Intake System - Toyota / B48 / A90 / Supra

Fitment for the MKV Supra 2.0 B48

The MK5 Supra Eventuri intake has been developed to provide the turbo with a less restrictive flow path whilst maintaining low inlet temperatures. Heat and Volume are the main considerations when designing an intake for turbocharged engines. In the Supra, the intake system is located next to the exhaust manifold which rapidly heat soaks the engine bay. High temperatures are detrimental to engine performance as the turbo would have to build boost with heated, less dense air and so the only way to ensure IATs are kept to a minimum is for a fully sealed intake. This, however, results in a restriction with only one stock air feed to draw air in from.

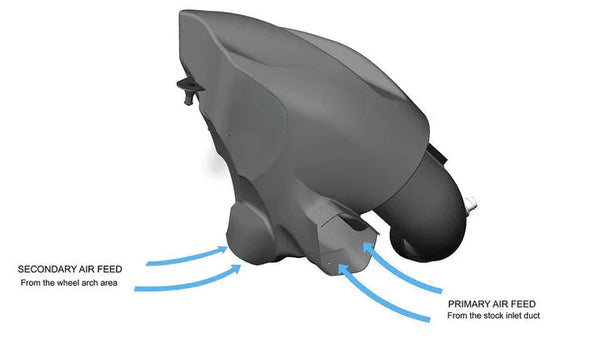

During development, we noticed an additional opening into the wheel arch area and took advantage of this by adding a secondary feed to our airbox. Furthermore, our sealed airbox also has a heat shield with gold reflective to minimize the radiative heat transfer from the exhaust manifold. In order to maximize volume, we made the airbox as large as possible with a recess for potential strut braces. The stock convoluted intake tube is replaced with a smooth carbon tube which is also larger in internal volume with a starting internal diameter of 111mm (4.4″) smoothly tapering down to match the turbo inlet. The tube provides a smooth path from the filter to the turbo inlet. Finally, we use a custom-made high-flow dry filter which is ISO tested for filtration performance and has a larger filtration area than the stock filter.

Each intake system consists of:

• Carbon Fiber Airbox with Dual Feeds
• Bespoke High Flow Dry Cone Filter
• Carbon Fiber Inlet Tube with 111mm opening ID
• CNC Machined Temperature Sensor Mount
• CNC Machined Breather adapter
• Heat Shield with Gold Reflective Backing
• Laser Cut Stainless Steel Brackets
• Silicon Coupler with OEM Specification Clamps
