Forced Performance Mitsubishi Evo 9 Black Turbocharger Ball Bearing SS Turbine Housing

2005070

EVO IX BB Black

• Compressor wheel - 82HTZ
• Flow rating - 71LB per minute
• CW Measurements - 59.1MM Inducer / 82MM Exducer
• TW Measurements - 67.3MM Inducer / 58.8MM Exducer
• Compressor Housing - 84MM Flow Advancement Port Cover
• Turbine Housing - FP Stainless or MHI Stock Configuration
• CHRA - Xona Rotor Dual Ceramic Ball Bearing
• Oil Line - Stock Oil Feed Line Compatible

The FP Black has long been the performance benchmark in the stock appearing EVO IX market. It has propelled the platform into the low 9’s and beyond the 600WHP mark. It’s a potent combination of a 67MM turbine wheel mated to our 82HTZ compressor wheel for a flow rating of 71LB a minute. In addition to the things you know and love about the journal bearing Black, this unit utilizes our Xona Ball Bearing CHRA for increased durability in situations where you might see low oil flow such as road racing or autocross applications.

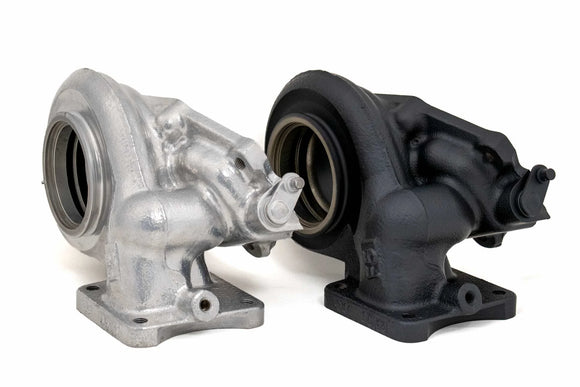

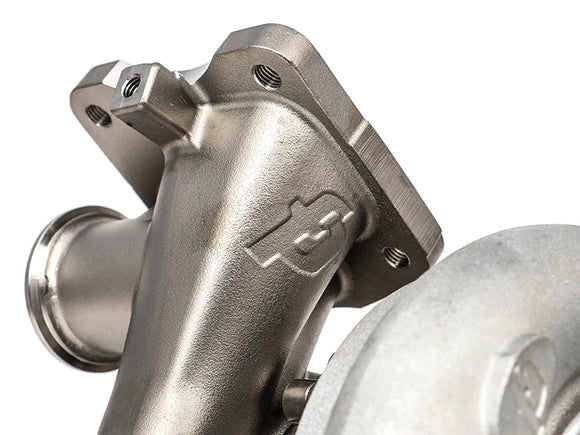

All EVO 9 turbos will now come standard with our new cast stainless turbine housing. This turbine housing has been designed to maximize flow while not sacrificing spool characteristics. It has a 3" outlet and has a TiAL MV-S waste gate flange machined directly onto the housing. Choose the "EVO 9 Cast O2 Housing" from the related items at the bottom of this page for the product page.

The FP EVO Stainless Turbine Housing was designed for race applications where the turbocharger would be operating above 20psi. Attempting to operate below 20PSI can result in boost creep in some applications.

Attention: All Forced Performance turbochargers are built to order to your exact specifications and should not be considered on the shelf ready to ship unless specifically noted on the work order. Build times vary by model of turbo and options of said turbocharger, therefore we cannot guarantee a delivery date or ETA.
