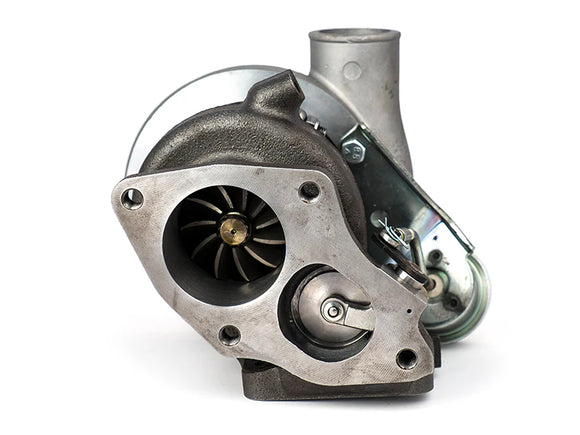

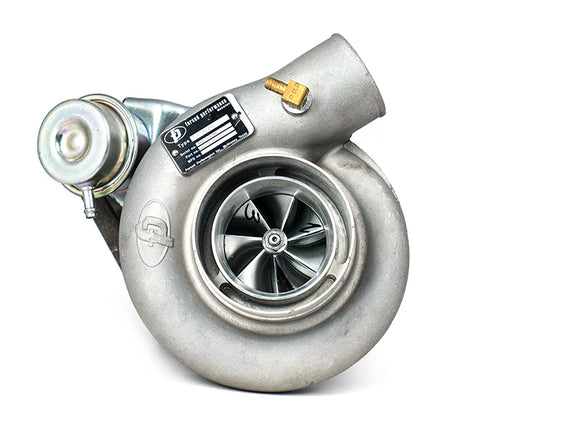

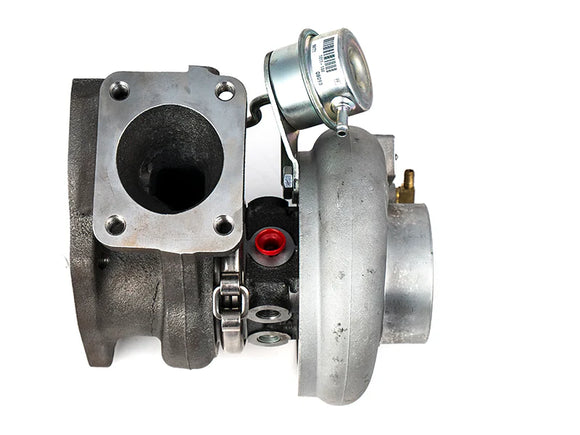

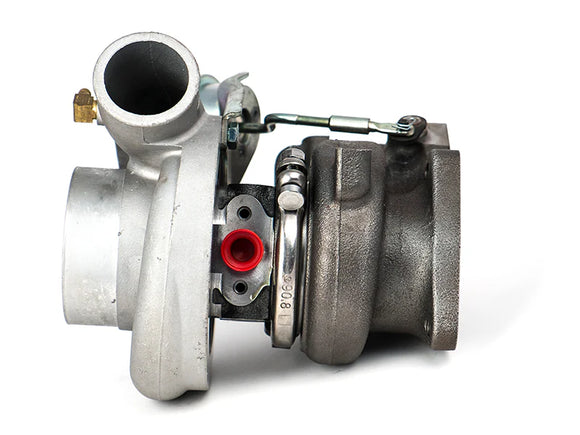

Forced Performance DSM Flanged Vehicle Red Turbocharger 84mm CH8CM Turbine Housing WG on O2

2015042

DSM JB Red

• Compressor wheel - 76HTZ
• Flow rating - 61LB per minute
• CW Measurements - 54.8MM Inducer / 76MM Exducer
• TW Measurements - 67.3MM Inducer / 58.8MM Exducer
• Compressor Housing - 84MM Flow Advancement Port Cover
• Turbine Housing - FP 8CM
• CHRA - FP Journal Bearing
• Oil Line - Not Included

The FP Red features our 76MM HTZ wheel rated at 61LB a minute which can produce upwards of 550WHP. Spinning the compressor wheel is our clipped 67MM turbine wheel stuffed into an 8CM turbine housing. This turbo is available internally gated but if you have an O2 housing setup for external you can bolt it right up to this turbo no custom O2 housing required.

This turbo requires that oil be fed off the filter housing which can be accomplished by purchasing our 1G Oil Supply Line. For all of our journal bearing turbos we recommend a high quality oil, see below for our oiling information sheet.

Forced Performance Recommendations for Motor Oil
Attention: All Forced Performance Turbochargers are built to order to your exact specifications and should not be considered on the shelf ready to ship unless specifically noted on the work order. Build times vary by model of turbo and options of said turbocharger, therefore we cannot guarantee a delivery date or ETA.
