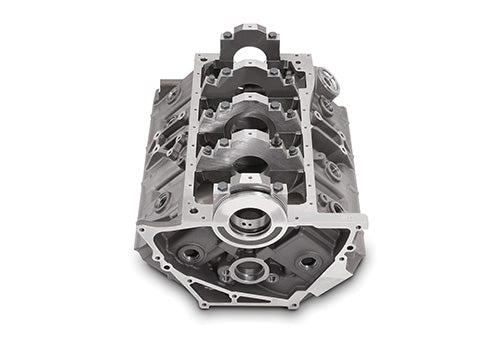

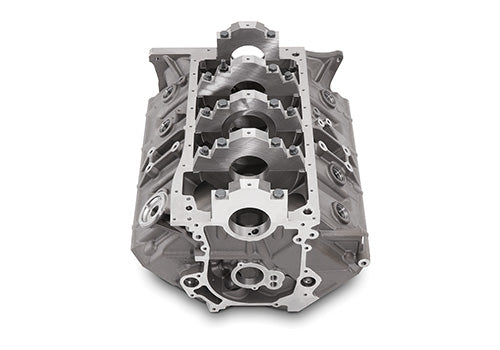

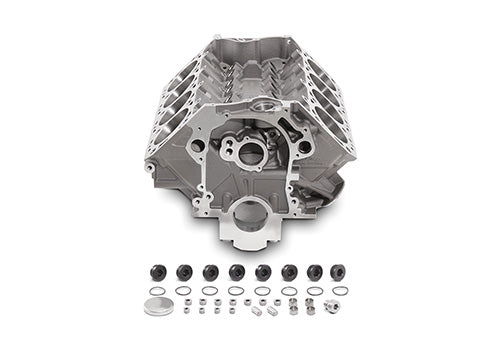

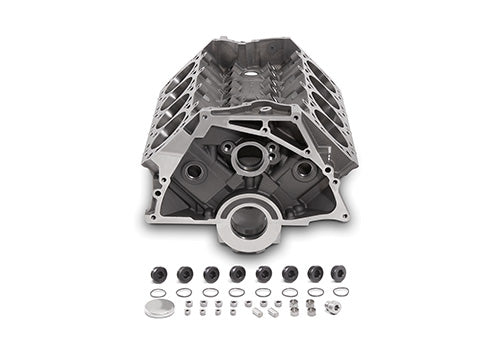

Ford Racing 460 Siamese Bore Engine Block

Ford Racing 460 Siamese Bore Engine Block

$5,490.50 CAD

Ford Racing SKU: M-6010-A460X

Earn [points_amount] when you buy this item.

Description Availability
New 460 engine block replaces the M-6010-A460BB block and is manufactured with all new tooling.
  • 10.322" deck Height plus or minus .005"
  • Cast iron Block with 4-bolt main caps on journals 2, 3, and 4
  • Nodular iron main caps
  • Can be bored/stroked to produce 598 cu. in.
  • Siamese cylinder bores
  • Rough bored to 4.490" +- .003"
  • Maximum recommended bore 4.625"
  • Wet sump oiling design
  • 3.00" main journal diameter
  • Weighs approximately 275 lbs.
  • High-strength block for professional competition
  • NOTE: Siamese blocks are solid casting between the cylinder bores. There are no water passages between them. This is done to increase the strength of the block.
  • Also available in standard bore version, part number: M-6010-A460X
