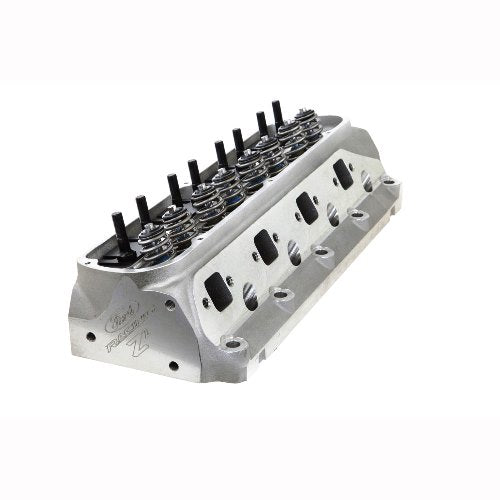

The small block Ford Z2 aluminum cylinder head features an advanced “Velocity Vane” intake port design that delivers outstanding street/strip power. Developed with the aid of advanced computer aided engineering simulation tools, the unique design improves power throughout the RPM range. This high performance aluminum cylinder head is a direct bolt on for Ford 289/302/351W engines and retains OEM exhaust, intake, and accessory mounting locations.

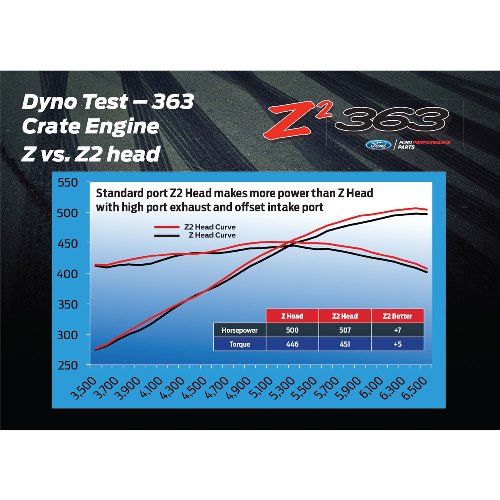

View the dyno test results here: Z2 Head Dyno Test Graph
-
Fits 289/302/351 Windsor engines
-
Cast from prime 356 T6 aluminum
-
Heads retain Ford OEM intake and exhaust port location and flange
-

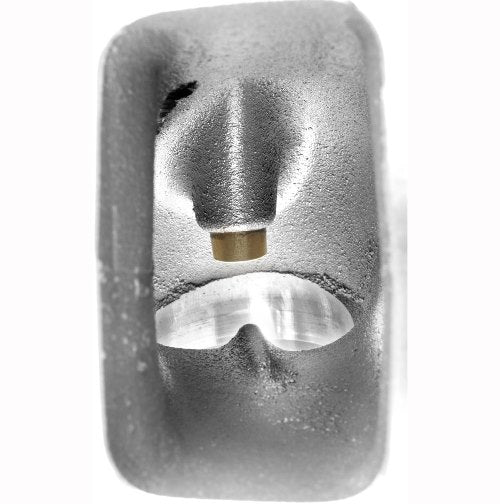

Intake ports feature a unique “Velocity Vane” in port floor to direct airflow around the valve stem – that leads to more HP and torque throughout the full power range
-
20° degree inline valve angle
-
Premium stainless steel valves - 2.05" intake - 1.60" exhaust
-

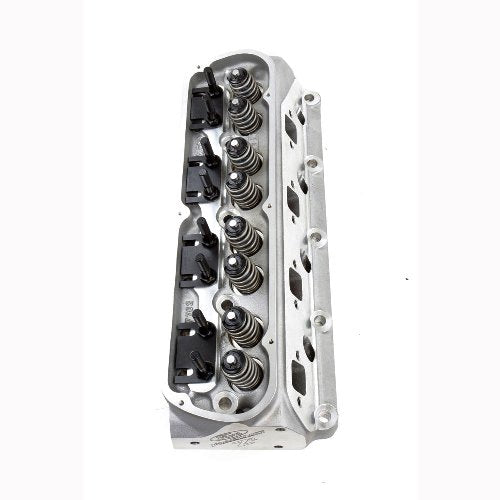

PAC 1219X conical style valve springs with machined retainers and 10° machined valve locks. Most hydraulic cams can be used with these springs.
-
Valve spring closed pressure - 145 lbs. @1.800"
-
Valve spring open pressure - 358 lbs. @ 1.175"
-
Coil Bind @1.100” 0.650” Max Lift.
-
Includes laser cut guide plates for use with 5/16" pushrods and 7/16" rocker studs
-
Steel alloy intake and exhaust valve seats
-
Manganese-bronze valve guides
-

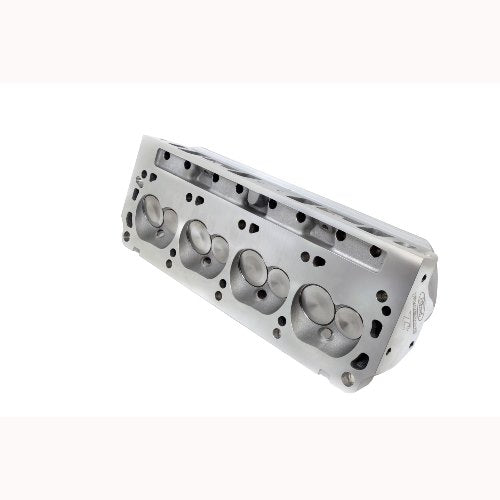

63cc combustion chamber
-
Uses gasket style 14mm spark plugs
-
Uses small block Ford 7/16 stud mount, 1.65 ratio rocker arms
-
Check piston to valve clearance including radial valve clearance before installing these cylinder heads on your engine
- Uses Intake gasket - M-9439-A50 and FelPro exhaust gasket part number 1415
