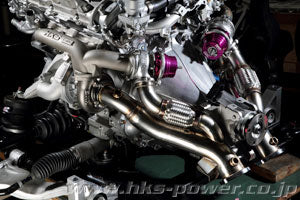

R35GT-R GT800 FULL TURBINE KIT

11003-AN011

R35 GT-R goes to the ultimate speed range...
For the ultimate performance, HKS' in-house design and manufacturing GT II Turbine with "Symmetry Twin Turbo Layout" with the latest technology made it. As the total performance products manufacturer, HKS does not just develop a product, but has done a lot of field tests with combination of various products so that anybody in the world can achieve more than 800 horsepower. It can be offered as total vehicle performance products package.

• HKS' in-house design and manufacturing "Special GT II Turbine" was developed exclusively for this turbine kit. These special designed GTII Turbines enables to utilize the ideal symmetry layout of the normal and reverse revolution turbines.
• To prevent heat problem, "Special heat resistance cast metal exhaust manifold" was developed.
• Piping for oil and water was exclusively designed for R35 GT-R to be more durable to use in high temperature.
• Compact & lightweight GT II Wastegate enables precision boost pressure

• Performance

  HKS R35 Power Data: GT800+ vs GT800 vs GT600 vs Stock





  Power Torque Boost GT800+Racing SPEC 859ps/6820rpm 103.9kg-m/3950rpm 165-155kPa GT800 Racing SPEC 804ps/6790rpm 98.7kg-m/3850rpm 165-155kPa GT600 Racing package 601.6ps/6640rpm 78.9kg-m/3860rpm 120kPa STOCK 501.6ps/6630rpm 66.4kg-m/3810rpm Stock

  Ref. Boost Press:Output 90kPa 570ps (EVC OFF) 120kPa 700ps 140kPa 750ps 160kPa 800ps

  *The specifications of the test vehicle are based on the GT600 Racing Package upgrading the engine parts and fuel parts and using the R35 Full Control System.



  Remarks

  • The engine must be removed in order to install this kit.
  • This kit does not include the following parts: Fuel Pumps, Injectors, EVC, engine parts and Engine Management such as the HKS F-CON.
  • Upgrading the engine internals is necessary when using this kit at high engine outputs.
  • The boost pressure setting for the provided Wastegates is approximately 90 to 95 kPa (13 to 13.8 PSI).
  • The factory water pipe must be modified.
  • The factory Turbocharger heat insulator must be modified.
  • This kit was developed exclusively for off-road race use only. HKS will not be responsible for engine and/or transmission damage caused by the use of this kit.
  • This kit must be used without the catalytic converters. Because of this, the vehicle cannot be driven on any public roads or highways.
  • Any vehicle with this kit installed may void the factory manufacturer’s warranty.
