INTERCOOLER KIT FK8 CIVIC TYPE-R (FULL)

13001-AH004

【CONCEPT】

• The K20C engine achieves 320ps with 2.0L displacement, and the boost pressure exceeds 150kPa. Since the stock intercooler’s capacity is insufficient, the engine intake air temperature rises to nearly 90℃.
  →HKS intercooler is using a larger size intercooler to maintain cooling performance.
• The stock intercooler piping layout has a sharp bend so the intake air does not flow smoothly and causes the boost pressure loss.
  →HKS intercooler integrates the inlet side tank of the intercooler and pipe to realize a smooth air flow and reduce air intake loss.

【Features】

• Newly designed 100mm wide core is approximately 200% of the stock in the core capacity. This large core shows overwhelming cooling performance difference.

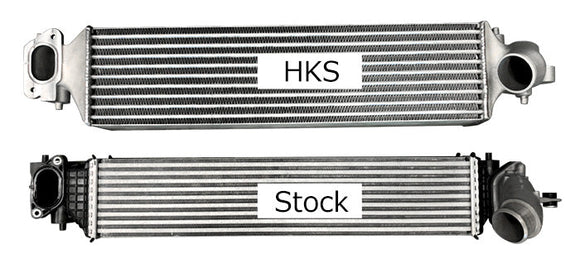

  Core Size 　★HKS：695mm x 178mm x 100mm　　★Stock：680mm x 143mm x 64mm
• Minor modification of the fan shroud and rubber part that comes in contact with the core is required.

【Test Data】
