15004-AT012
Features
- Newly designed single tube type fitting. Engine dyno tests and experience from D1 racing found that the oil pressure of the FA20 engine is extremely high compared to most conventional mass-produced engines. (Max oil pressure: over 12kgf/cm²) New single tube fitting withstanding the high oil pressure was designed and included in this kit.

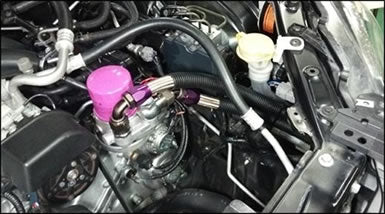

- Installing the core to the inner side of the fender enables a vehicle tuned with GT Supercharger to install a front mount type intercooler kit. Also, a special air guide is included to provide higher cooling performance; this kit is also recommended for NA vehicles who enjoy circuit driving.
- Special spacer and center bolt are included so the kit parts do not come in contact with the brim on the oil filter installation position when installing the oil cooler attachment.
The following parts are included:
| ・Oil Cooler Core ・S-type Attachment |
・Spacer ・Center Bolt |
・Banjo ・Banjo Bolt |
・Bracket ・Air guide |
・Oil Cooler Hose ・Accessory Parts |
The characteristics of oil temp. and the water temp.
|
※ This is the result of the test HKS conducted. The result may vary depending on the test conditions. |
●Test Data
|
* The circuit driving by 86/BRZ with GT Supercharger which engine output was increased to 300ps was done under conditions that was very difficult to maintain the oil temperature. However, the oil temperature of this vehicle with this oil cooler kit was maintained around 110℃ through the 25 min test drive without any trouble.
