21003-AH001
HONDA
CR-Z
2011 - 2016
LEA-MF6
■Feature

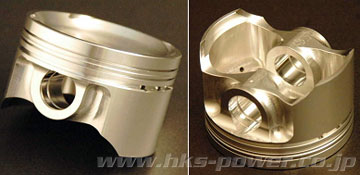

PISTON KIT
- Factory replacement & standard bore size piston kit.
- Billet pistons are made from the 80mm-L60mm Aluminum rod material.
- Honda factory piston pins (18mm Semifloating pins) are required.
- Honda factory piston rings are required.
The compression ratio when using the pistons with HKS Head Gasket is as follows:
HKS Head Gasket t=0.8mm Gasket Bore: 75.0mm 8.7
HKS Head Gasket t=1.2mm Gasket Bore: 75.0mm 8.4

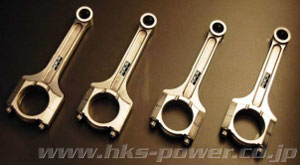

CONNECTING ROD SET
- Semifloating pins on the connecting rod small end.
- The durability is improved by 186% comparing to the factory's durability with the 158.8(mm2) minimum cross-sectional area of the rod.
- The M8x1.0 sized connecting rod bolts are used for better rigidity.
* In-house test at 336PS/43.78kgf･m confirmed the durability and safety (including the Supercharger drive loss).
■Specifications
| HKS | Stock | ||
| Bore x Stroke | φ73 X 89.4mm | φ73 X 89.4mm | |
| Comp. Ratio | ε8.7/8.4 | ε10.4 | |
| Gasket thickness | HKS t 0.8/1.2 | t 0.80 | |
| Displacement (cc) | 1496 | ← | |
| Piston | Bore dia. | φ73 | ← |
| Compression height | 26.0mm | ← | |
| Concave portion capacity | 17.5cc | 8.7cc | |
| Material | φ80-L60 AL | Casting | |
| Ref. weight | 178.5g | 198.9g | |
| Pin | Size | φ18 | φ18 |
| Ring | Top size | φ73 X 1.0 X 2.3 | ← |
| 2nd size | φ73 X 1.0 X 2.3 | ← | |
| Oil size | φ73 X 2.0 X 1.9 | ← | |
| Connecting rods | Material | SCM440H | - |
| Ref. weight | 380g | 314.5g | |
| Bolt | M8 X 1.0 | M6 X 1.0 | |
| Ref. capable torque | 43.8kgf-m | 30.47kgf-m | |
■Graph (300ps spec.)
| Power | Torque | |
| GTS7040 80φ | 300.5ps/6,100rpm | 35.9kg-m/5,800rpm |
| GTS7040 85φ | 285.5ps/6,300rpm | 32.8kg-m/6,100rpm |
| GTS7040 90φ | 253.1ps/6,300rpm | 29.5kg-m/5,900rpm |
| Normal | 143.4ps/6,100rpm | 19.8kg-m/2,700rpm |
