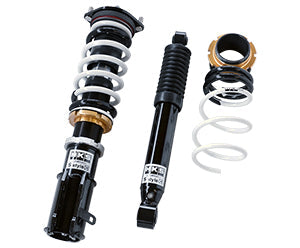

HM S-STYLE C GK1W FULL KIT

HM S-STYLE C GK1W FULL KIT

$2,242.80 CAD

HKS SKU: 80110-AM204

Earn [points_amount] when you buy this item.

Description Availability

80110-AM204

MITSUBISHI

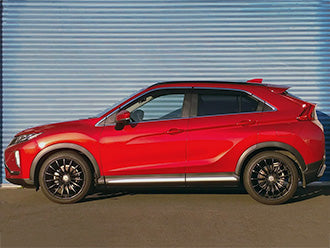

ECLIPSE CROSS
2019 -
4B40TC
Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3		 Drivable range
High - Low *4
FRONT Ride height *1 733 ← 770 ～ 708 770 ～ 708
Against stock -37 ← 0 ～ -62 0 ～ -62
REAR Ride height *1 740 ← 783 ～　715 783 ～　715
Against stock -42 ← 0 ～ -67 0 ～ -67
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.




Kit information
Spring of Full Kit
  F R
Spring rate N/mm(kgf/mm) 49 (5) 39 (4)
Free height (mm) 250 220
Spring type Straight Barrel type Straight Barrel type
Recommended range to change spring rate N/mm(kgf/mm) ±9.8 (1) ±9.8 (1)
Specification of damper
  F R
Damping force (Rebound/Damping)N* 510 / 245 530 / 186
Default position of dial - -
Remaining damper stroke (Rebound/Damping)mm 66 / 61 50 / 60
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
  F R
Default Test Drivable limit
High *		 Drivable limit
Low *		 Default Test Drivable limit
High *		 Drivable limit
Low *
Length of
case (mm)		 369 ← 396 353 278 ← 312 278
Spring
Set length(mm)		 244 ← 234 253 194 ← 194 214
Length to ride hight
adjuster (mm)		 35 ← 72 10 30 ← 64 10
Lever ratio 1.00 1.25
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.




Test vehicle information
  F R
Vehicle weight kg 922 651
Tire size (Air pressure) kPa 225 / 55 - 18 ( 240 ) 225 / 55 - 18 ( 240 )
Wheel size 7 JJ × 18 inset 38 7 JJ × 18 inset 38
Alignment
(Toe/Camber)		 Test data 0 mm / -1°49' in 2 mm / -2°08'
Standard value IN 1 ± 2 mm / -0°15' ± 30' IN 3 ± 2 mm / -0°40' ± 45'
* Test data at HKS.




Parts List * It may be changed without prior notice.
