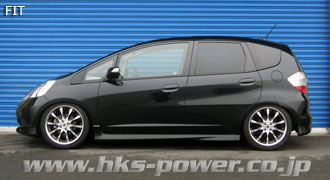

HM S-STYLE X GE8 FULL KIT

HM S-STYLE X GE8 FULL KIT

$3,172.99 CAD

HKS SKU: 80120-AH206

Earn [points_amount] when you buy this item.

Description Availability

80120-AH206

HONDA
FIT
2009 - 2014
L15A
Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3		 Drivable range
High - Low *4
FRONT Ride height *1 621 586 648 ～ 564 648 ～ 586
Against stock -27 -62 0 ～ -84 0 ～ -62
REAR Ride height *1 610 573 622 ～　553 610 ～　573
Against stock -53 -90 -41 ～ -110 -53 ～ -90
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.


Kit information
Spring of Full Kit
  F R
Spring rate N/mm(kgf/mm) 58.8 (6.0) 39.2 (4.0)
Free height (mm) 200 -
Spring type Straight Special shape
Recommended range to change spring rate N/mm(kgf/mm) ±10（1） -
Specification of damper
  F R
Damping force (Rebound/Damping)N* 941 / 235 412/ 127
Default position of dial 20 20
Remaining damper stroke (Rebound/Damping)mm 46 / 41 38 / 61
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
  F R
Default Test Drivable limit
High *		 Drivable limit
Low *		 Default Test Drivable limit
High *		 Drivable limit
Low *
Length of
case (mm)		 330 305 344 305 376 340 377 340
Spring
Set length(mm)		 195 200 185 200 - - - -
Length to ride hight
adjuster (mm)		 60 30 84 30 50 20 50 20
Lever ratio 1.15 1.25 (spg) , 1.00 (dmp)
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.


Test vehicle information
  F R
Vehicle weight kg 700 374
Tire size (Air pressure) kPa 205 / 45 - 17 ( 230 ) 205 / 45 - 17 ( 230 )
Wheel size 7.0 J × 17 off 50 7.0 J × 17 off 50
Alignment
(Toe/Camber)		 Test data 0 mm / －2°30' in 5 mm / -1°00'
Standard value 0 ± 3 mm / 0°00' ± 1 ° 2 +2 -1 mm / -1°00'± 1 °
* Test data at HKS.


Parts List * It may be changed without prior notice.
