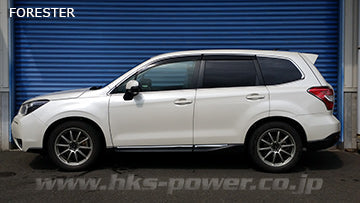

HIPERMAX IVGT SJG FULL KIT

HIPERMAX IVGT SJG FULL KIT

$2,494.80 CAD

HKS SKU: 80230-AF017

Earn [points_amount] when you buy this item.

Description Availability

80230-AF017

SUBARU
FORESTER 2.0 XT
2014 - 2018
FA20
Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3		 Drivable range
High - Low *4
FRONT Ride height *1 735 ← 761 ～ 727 761 ～ 727
Against stock -30 ← -4 ～ -38 -4 ～ -38
REAR Ride height *1 750 ← 795 ～　707 795 ～　707
Against stock -45 ← 0 ～ -88 0 ～ -88
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.


Kit information
Spring of Full Kit
  F R
Spring rate N/mm(kgf/mm) 49 (5) 39 (4)
Free height (mm) 250 250
Spring type Straight Barrel type Straight Barrel type
Recommended range to change spring rate N/mm(kgf/mm) ±20 ( 2 ) ±20 ( 2 )
Specification of damper
  F R
Damping force (Rebound/Damping)N* 1030 / 510 510/ 402
Default position of dial 15段 15段
Remaining damper stroke (Rebound/Damping)mm 66 / 47 67 / 69
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
  F R
Default Test Drivable limit
High *		 Drivable limit
Low *		 Default Test Drivable limit
High *		 Drivable limit
Low *
Length of
case (mm)		 367 ← 381 367 302 ← 326 285
Spring
Set length(mm)		 226 ← 217 233 236 ← 227 250
Length to ride hight
adjuster (mm)		 145 ← 168 138 84 ← 117 53
Lever ratio 1.15 1.38
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.


Test vehicle information
  F R
Vehicle weight kg 900 648
Tire size (Air pressure) kPa 225 / 55 - 18 ( 230 ) 225 / 55 - 18 ( 220 )
Wheel size 7.5 JJ × 18 inset 47 7.5JJ × 18 inset 47
Alignment
(Toe/Camber)		 Test data in 2 mm / -1°06' in 6 mm / -1°30'
Standard value in 0 ±3 mm / -0°00' ± 0°30' in 3 ± 3 mm / -1°00' ± 0°45'
* Test data at HKS.


Parts List * It may be changed without prior notice.
