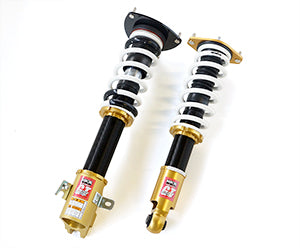

MAXIV GT SKE FULL KIT

MAXIV GT SKE FULL KIT

$2,935.80 CAD

HKS SKU: 80230-AF018

Earn [points_amount] when you buy this item.

Description Availability

80230-AF018

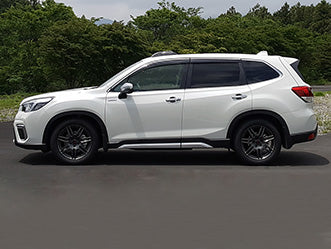

SUBARU
FORESTER 2.5 i
2019 -
FB25
Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3		 Drivable range
High - Low *4
FRONT Ride height *1 734 ← 792 ～ 715 792 ～ 715
Against stock -32 ← 26 ～ -51 26 ～ -51
REAR Ride height *1 755 ← 824 ～　722 824 ～　722
Against stock -34 ← 35 ～ -67 35 ～ -67
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.




Kit information
Spring of Full Kit
  F R
Spring rate N/mm(kgf/mm) 59 ( 6.0 ) 49 ( 5.0 )
Free height (mm) 220 250
Spring type Straight Barrel type Straight Barrel type
Recommended range to change spring rate N/mm(kgf/mm) - -
Specification of damper
  F R
Damping force (Rebound/Damping)N* 422 / 397 427 / 437
Default position of dial 15 15
Remaining damper stroke (Rebound/Damping)mm 68 / 48 67 / 69
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
  F R
Default Test Drivable limit
High *		 Drivable limit
Low *		 Default Test Drivable limit
High *		 Drivable limit
Low *
Length of
case (mm)		 364 ← 420 346 309 ← 362 284
Spring
Set length(mm)		 222 ← 222 222 249 ← 249 249
Length to ride hight
adjuster (mm)		 24 ← 80 6 27 ← 80 2
Lever ratio 1.03 1.31
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.




Test vehicle information
  F R
Vehicle weight kg 957 713
Tire size (Air pressure) kPa 225 / 55 - 18 ( 230 ) 225 / 55 - 18 ( 230 )
Wheel size 7.0 JJ × 18 inset 48 7.0 JJ × 18 inset 48
Alignment
(Toe/Camber)		 Test data out 2 mm / -0°48' in 2 mm / -0°48'
Standard value in 0 ± 3 mm / -0°05' ± 0°30' in 3 ± 3 mm / -0°50' ± 0°45'
* Test data at HKS.




Parts List * It may be changed without prior notice.
