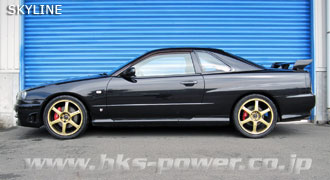

HIPERMAX IVGT ER34 FULL KIT

HIPERMAX IVGT ER34 FULL KIT

$2,494.80 CAD

HKS SKU: 80230-AN005

Earn [points_amount] when you buy this item.

Description Availability

80230-AN005

NISSAN
SKYLINE
1998 - 2001
RB25DET
Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3		 Drivable range
High - Low *4
FRONT Ride height *1 649 ← 690 ～ 623 688 ～ 632
Against stock -41 ← 0 ～ -67 -2 ～ -58
REAR Ride height *1 657 ← 688 ～　570 688 ～　607
Against stock -31 ← 0 ～ -118 0 ～ -81
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.



Kit information
Spring of Full Kit
  F R
Spring rate N/mm(kgf/mm) 69 ( 7 ) 49 ( 5 )
Free height (mm) 250 250
Spring type Straight Straight
Recommended range to change spring rate N/mm(kgf/mm) ±20 ( 2 ) ±20 ( 2 )
Specification of damper
  F R
Damping force (Rebound/Damping)N* 843 / 167 588 / 177
Default position of dial 15 15
Remaining damper stroke (Rebound/Damping)mm 47 / 53 67 / 103
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
  F R
Default Test Drivable limit
High *		 Drivable limit
Low *		 Default Test Drivable limit
High *		 Drivable limit
Low *
Length of
case (mm)		 320 ← 335 313 492 ← 522 466
Spring
Set length(mm)		 242 ← 222 250 301 ← 301 324
Length to ride hight
adjuster (mm)		 65 ← 100 50 158 ← 188 109
Lever ratio 1.10 1.03
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.



Test vehicle information
  F R
Vehicle weight kg - -
Tire size (Air pressure) kPa 235 / 40 - 18 ( 230 ) 235 / 40 - 18 ( 230 )
Wheel size 8 JJ × 18 inset 30 8 JJ × 18 inset 30
Alignment
(Toe/Camber)		 Test data out 1 mm / -1°42' in 3 mm / -1°45'
Standard value in 5 ～ out 5 mm / -0°45' ± 0°45' 0 ～ out 5.2 mm / -0°55' ± 0°45'
* Test data at HKS.



Parts List * It may be changed without prior notice.
