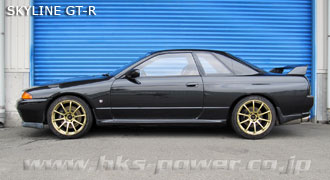

HIPERMAX IVGT BNR32 FULL KIT NISSANSKYLINE GT-R1989 - 1994RB26DETT

HIPERMAX IVGT BNR32 FULL KIT NISSANSKYLINE GT-R1989 - 1994RB26DETT

$2,494.80 CAD

HKS SKU: 80230-AN008

Earn [points_amount] when you buy this item.

Description Availability

80230-AN008

NISSAN
SKYLINE GT-R
1989 - 1994
RB26DETT
Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3		 Drivable range
High - Low *4
FRONT Ride height *1 657 ← 695 ～ 631 695 ～ 638
Against stock -38 ← 0 ～ -64 0 ～ -57
REAR Ride height *1 651 ← 671 ～　582 671 ～　604
Against stock -20 ← 0 ～ -89 0 ～ -67
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.



Kit information
Spring of Full Kit
  F R
Spring rate N/mm(kgf/mm) 69 ( 7 ) 69 ( 7 )
Free height (mm) 250 200
Spring type Straight Straight
Recommended range to change spring rate N/mm(kgf/mm) ±20 ( 2 ) ±20 ( 2 )
Specification of damper
  F R
Damping force (Rebound/Damping)N* 863 / 186 588 / 216
Default position of dial 15 15
Remaining damper stroke (Rebound/Damping)mm 37 / 63 53 / 82
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
  F R
Default Test Drivable limit
High *		 Drivable limit
Low *		 Default Test Drivable limit
High *		 Drivable limit
Low *
Length of
case (mm)		 272 ← 309 270 395 ← 413 377
Spring
Set length(mm)		 234 ← 234 250 250 ← 250 274
Length to ride hight
adjuster (mm)		 25 ← 62 7 62 ← 80 20
Lever ratio 1.03 1.12
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.



Test vehicle information
  F R
Vehicle weight kg - -
Tire size (Air pressure) kPa 245 / 40 - 18 ( 230 ) 245 / 40 - 18 ( 230 )
Wheel size 9 JJ × 18 inset 22 9 JJ × 18 inset 22
Alignment
(Toe/Camber)		 Test data out 1 mm / -2°00' in 5 mm / -2°33'
Standard value 0 ～ in 2 mm / -0°55' ± 45' in 2 ± 2 mm / -1°05' ± 30'
* Test data at HKS.



Parts List * It may be changed without prior notice.

This website does not show live stock.

If the product is in stock we ship same/next day.

If a product needs to be ordered in the typical wait time is 1-2 weeks.

Shipping times vary depending if the part is in stock at our warehouse and which shipping option is chosen at checkout.

Please contact us for an accurate ETA and availability.
