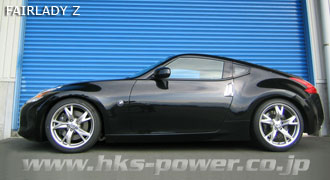

HIPERMAX IVGT Z34 FULL KIT

HIPERMAX IVGT Z34 FULL KIT

$2,142.00 CAD

HKS SKU: 80230-AN009

Earn [points_amount] when you buy this item.

Description Availability

80230-AN009

Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3		 Drivable range
High - Low *4
FRONT Ride height *1 682 ← 703 ～ 669 703 ～ 669
Against stock -21 ← 0 ～ -34 0 ～ -34
REAR Ride height *1 688 ← 708 ～　646 708 ～　665
Against stock -20 ← 0 ～ -62 0 ～ -43
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.



Kit information
Spring of Full Kit
  F R
Spring rate N/mm(kgf/mm) 98 ( 10 ) 88 ( 9 )
Free height (mm) 200 -
Spring type Straight Special shape
Recommended range to change spring rate N/mm(kgf/mm) ±20 ( 2 ) -
Specification of damper
  F R
Damping force (Rebound/Damping)N* 1069 / 265 451 / 167
Default position of dial 15 15
Remaining damper stroke (Rebound/Damping)mm 77 / 38 77 / 93
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
  F R
Default Test Drivable limit
High *		 Drivable limit
Low *		 Default Test Drivable limit
High *		 Drivable limit
Low *
Length of
case (mm)		 422 ← 422 422 372 ← 388 372
Spring
Set length(mm)		 245 ← 232 253 - - - -
Length to ride hight
adjuster (mm)		 76 ← 89 68 45 ← 57 31
Lever ratio 1.67 1.67(spg) , 1.28(dmp)
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.



Test vehicle information
  F R
Vehicle weight kg 823 670
Tire size (Air pressure) kPa 245 / 35 - 20 ( 280 ) 285 / 30 - 20 ( 290 )
Wheel size 9.5 JJ × 20 off 40 10.5 JJ × 20 off 30
Alignment
(Toe/Camber)		 Test data 0 mm / -1°42' 0 mm / -3°30'
Standard value in 3.0 ～ in 1.0 mm / -1°30' ～ 0°00' in 5.4 ～ 2.0 mm / -2°15' ～ -1°15'
* Test data at HKS.
