HIPERMAX IVGT GSE21/GRS204 FULL KIT

HIPERMAX IVGT GSE21/GRS204 FULL KIT

$1,953.00 CAD

HKS SKU: 80230-AT003

Earn [points_amount] when you buy this item.

Description Availability

80230-AT003

LEXUS

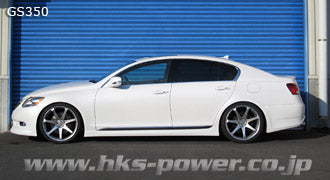

GS 350
2007 - 2012
2GR-FSE
Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3		 Drivable range
High - Low *4
FRONT Ride height *1 653 ← 694 ～ 623 694 ～ 638
Against stock -41 ← 0 ～ -71 0 ～ -56
REAR Ride height *1 667 656 691 ～　566　※5 691 ～　605
Against stock -24 -35 0 ～ -125　※5 0 ～ -86
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.



Kit information
Spring of Full Kit
  F R
Spring rate N/mm(kgf/mm) 69 ( 7 ) 59 ( 6 )
Free height (mm) 200 250
Spring type Straight Straight
Recommended range to change spring rate N/mm(kgf/mm) ±20 ( 2 ) ±20 ( 2 )
Specification of damper
  F R
Damping force (Rebound/Damping)N* 853 / 226 745 / 196
Default position of dial 15 15
Remaining damper stroke (Rebound/Damping)mm 70 / 45 72 / 83
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
  F R
Default Test Drivable limit
High *		 Drivable limit
Low *		 Default Test Drivable limit
High *		 Drivable limit
Low *
Length of
case (mm)		 410 ← 438 405 380 370 396 368
Spring
Set length(mm)		 225 ← 225 230 277 277 277 309
Length to ride hight
adjuster (mm)		 87 ← 115 77 44 34 60 0
Lever ratio 1.49 1.51
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.



Test vehicle information
  F R
Vehicle weight kg 900 805
Tire size (Air pressure) kPa 255 / 30 - 20 ( 260 ) 275 / 30 - 20 ( 260 )
Wheel size 8.5 JJ × 20 off 45 + ｽﾍﾟｰｻｰ10mm 9.5 JJ × 20 off 50 + ｽﾍﾟｰｻｰ10mm
Alignment
(Toe/Camber)		 Test data 0 mm / -1°42' in 3 mm / -2°00'
Standard value in 1 ± 2 mm / -0°25' ± 45' in 3 ± 2 mm / -1°20' ± 45'
* Test data at HKS.



Parts List * It may be changed without prior notice.
