HIPERMAX IVGT JZX110 FULL KIT

HIPERMAX IVGT JZX110 FULL KIT

$2,494.80 CAD

HKS SKU: 80230-AT008

Earn [points_amount] when you buy this item.

Description Availability

80230-AT008

TOYOTA

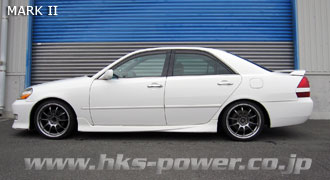

MARK II
2000 - 2004
1G-FE
Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3		 Drivable range
High - Low *4
FRONT Ride height *1 640 ← 688 ～ 590 688 ～ 619
Against stock -44 ← 0 ～ -98 0 ～ -69
REAR Ride height *1 635 ← 689 ～　594 689 ～　614
Against stock -54 ← 0 ～ -95 0 ～ -75
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.


Kit information
Spring of Full Kit
  F R
Spring rate N/mm(kgf/mm) 157 ( 16 ) 117 ( 12 )
Free height (mm) 170 200
Spring type Straight Straight
Recommended range to change spring rate N/mm(kgf/mm) ±20 ( 2 ) ±20 ( 2 )
Specification of damper
  F R
Damping force (Rebound/Damping)N* 2000 / 400 900 / 220
Default position of dial 15 15
Remaining damper stroke (Rebound/Damping)mm 58 / 37 68 / 67
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
  F R
Default Test Drivable limit
High *		 Drivable limit
Low *		 Default Test Drivable limit
High *		 Drivable limit
Low *
Length of
case (mm)		 355 ← 381 347 391 ← 432 382
Spring
Set length(mm)		 221 ← 221 228 266 ← 266 273
Length to ride hight
adjuster (mm)		 71 ← 97 56 47 ← 88 31
Lever ratio 1.57 1.53
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.


Test vehicle information
  F R
Vehicle weight kg 861 689
Tire size (Air pressure) kPa 225 / 40 - 18 ( 220 ) 255 / 35 - 18 ( 300 )
Wheel size 9.0 JJ × 18 off 10.0 JJ × 18 off
Alignment
(Toe/Camber)		 Test data in 0 mm / -1°45' in 0 mm / -2°35'
Standard value in 1 ± 1 mm / -0°15' ± 45' in 2 ± 1 mm / -0°40' ± 30'
* Test data at HKS.


Parts List * It may be changed without prior notice.
