HIPERMAX IVGT ANF10 FULL KIT

HIPERMAX IVGT ANF10 FULL KIT

$2,772.00 CAD

HKS SKU: 80230-AT012

Earn [points_amount] when you buy this item.

Description Availability

80230-AT012

LEXUS

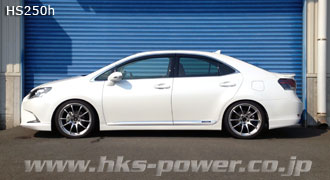

HS 250h
2009 - 2013
2AZ-FXE(2AZ-2JM)
Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3		 Drivable range
High - Low *4
FRONT Ride height *1 650 ← 697 ～ 629 697 ～ 633
Against stock -47 ← 0 ～ -68 0 ～ -64
REAR Ride height *1 648 ← 697 ～　626 697 ～　626
Against stock -49 ← 0 ～ -71 0 ～ -71
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.



Kit information
Spring of Full Kit
  F R
Spring rate N/mm(kgf/mm) 49 ( 5 ) 49 ( 5 )
Free height (mm) 220 200
Spring type Straight Barrel type Straight Barrel type
Recommended range to change spring rate N/mm(kgf/mm) ±20 ( 2 ) +10 ( 1 )
Specification of damper
  F R
Damping force (Rebound/Damping)N* 481 / 147 284 / 177
Default position of dial 15 15
Remaining damper stroke (Rebound/Damping)mm 67 / 46 80 / 80
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
  F R
Default Test Drivable limit
High *		 Drivable limit
Low *		 Default Test Drivable limit
High *		 Drivable limit
Low *
Length of
case (mm)		 310 ← 355 310 361 ← 405 354
Spring
Set length(mm)		 200 ← 200 216 - - - -
Length to ride hight
adjuster (mm)		 47 ← 92 31 42 ← 71 29
Lever ratio 1.04 1.67(spg) , 1.11(dmp)
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.



Test vehicle information
  F R
Vehicle weight kg - -
Tire size (Air pressure) kPa 225 / 45 - 18 ( 230 ) 225 / 45 - 18 ( 220 )
Wheel size 7.5 JJ × 18 inset 39 7.5 JJ × 18 inset 39
Alignment
(Toe/Camber)		 Test data in 2 mm / -1°00' in 4 mm / -1°42'
Standard value in 2 ± 2 mm / -0°15' ± 45' in 2 ± 2 mm / -1°10' ± 45'
* Test data at HKS.



Parts List * It may be changed without prior notice.
