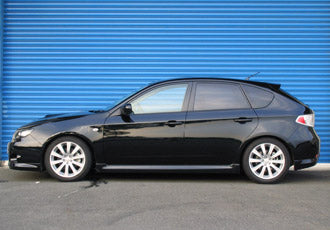

HIPERMAX IVGT GRE FULL KIT(US)

HIPERMAX IVGT GRE FULL KIT(US)

$2,672.99 CAD

HKS SKU: 80230-KF002

Earn [points_amount] when you buy this item.

Description Availability

80230-KF002

SUBARU
IMPREZA WRX 4D
2011 - 2014
EJ255
Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3		 Drivable range
High - Low *4
FRONT Ride height *1 647 ← 688 ～ 599 680 ～ 599
Against stock -41 ← 0 ～ -89 -8 ～ -89
REAR Ride height *1 655 ← 680 ～　590 680 ～　590
Against stock -25 ← 0 ～ -90 0 ～ -90
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.



Kit information
Spring of Full Kit
  F R
Spring rate N/mm(kgf/mm) 79 ( 8 ) 59 ( 6 )
Free height (mm) 220 170
Spring type Straight Barrel type Straight
Recommended range to change spring rate N/mm(kgf/mm) ±20 ( 2 ) ±20 ( 2 )
Specification of damper
  F R
Damping force (Rebound/Damping)N* 971 / 412 392 / 147
Default position of dial 15 15
Remaining damper stroke (Rebound/Damping)mm 45 / 68 49 / 67
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
  F R
Default Test Drivable limit
High *		 Drivable limit
Low *		 Default Test Drivable limit
High *		 Drivable limit
Low *
Length of
case (mm)		 279 ← 302 273 264 ← 284 239
Spring
Set length(mm)		 249 ← 242 287 210 ← 210 236
Length to ride hight
adjuster (mm)		 48 ← 78 4 51 ← 71 0
Lever ratio 1.1 1.27
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.



Test vehicle information
  F R
Vehicle weight kg 836 583
Tire size (Air pressure) kPa 215 / 45 - 18 ( 230 ) 215 / 45 - 18 ( 220 )
Wheel size 7 JJ × 18 off 55 7 JJ ×18 off 55
Alignment
(Toe/Camber)		 Test data 0 mm / 1°18' 0 mm / 1°30'
Standard value 0 ± 3 mm / -0°10' ± 45' 0 ± 3 mm / -0°10' ± 45'
* Test data at HKS.



Parts List * It may be changed without prior notice.
